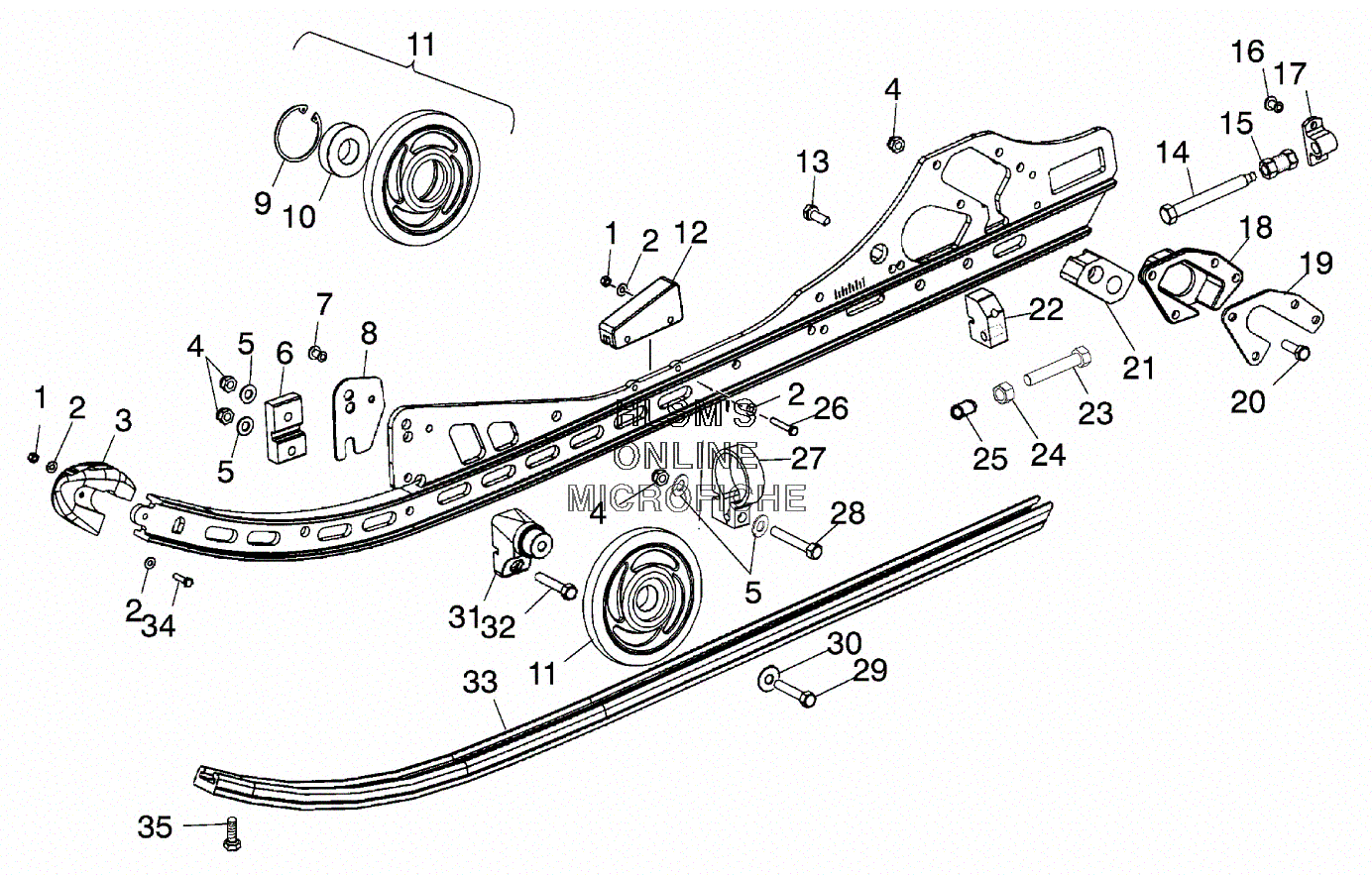

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 800 LE (S01ND8BS) - 2001 года выпуска`
-
№АртикулНазвание
-
131541525-309 RAIL ASSY. (LEFT) (INCL. 1, 3, 12, 16, 17, 26, 34)RAIL ASSY. (LEFT) (INCL. 1, 3, 12, 16, 17, 26, 34)
-
131541526-309 RAIL ASSY. (RIGHT) (INCL. 1, 3, 12, 16, 17, 26, 34)RAIL ASSY. (RIGHT) (INCL. 1, 3, 12, 16, 17, 26, 34)
-
17541925 NUTNUT
-
27555783 WASHERWASHER
-
35434374 CAP, RAIL TIPCAP, RAIL TIP
-
47542324 NUTNUT
-
57558402 WASHER STEELWASHER STEEL
-
65132577 BLOCK, RAIL SUPPORTBLOCK, RAIL SUPPORT
-
77661845 RIVETRIVET
-
85244651 PLATE, RAIL SUPPORTPLATE, RAIL SUPPORT
-
97718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
103514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
111590275-293 WHEEL, ADM, (INDY RED INCL. 9, 10)WHEEL, ADM, (INDY RED INCL. 9, 10)
-
125411947 BUMPER, JOUNCE, RAILBUMPER, JOUNCE, RAIL
-
137512392 BOLTBOLT
-
147517773 SCREWSCREW
-
155132712 NUT, TENSION ADJUSTNUT, TENSION ADJUST
-
167621501 RIVETRIVET
-
175132611 BLOCK, IDLER BOLT ADJUSTBLOCK, IDLER BOLT ADJUST
-
185631103 GUIDE, SLIDER (LEFT)GUIDE, SLIDER (LEFT)
-
185631104 GUIDE, SLIDER (RIGHT)GUIDE, SLIDER (RIGHT)
-
195245045 PLATE, COUPLER BLOCKPLATE, COUPLER BLOCK
-
207512310 SCREWSCREW
-
215434239 BLOCK, SLIDER LONG (LEFT)BLOCK, SLIDER LONG (LEFT)
-
215434240 BLOCK, SLIDER LONG (RIGHT)BLOCK, SLIDER LONG (RIGHT)
-
225132584 BLOCK, SHOCK PIVOT THREADEDBLOCK, SHOCK PIVOT THREADED
-
237515511 SCREWSCREW
-
247542414 NUT, HEXNUT, HEX
-
255133009 SPACERSPACER
-
267511967 BOLTBOLT
-
275132832 CLAMP, RESERVIORCLAMP, RESERVIOR
-
287515319 BOLTBOLT
-
297515382 BOLTBOLT
-
307556179 WASHER, SPRINGWASHER, SPRING
-
315131314 MOUNT, WHEELMOUNT, WHEEL
-
327512329 BOLTBOLT
-
335521563-309 HI, FAXHI, FAX
-
347511930 SCREWSCREW
-
357515199 SCREWSCREW
