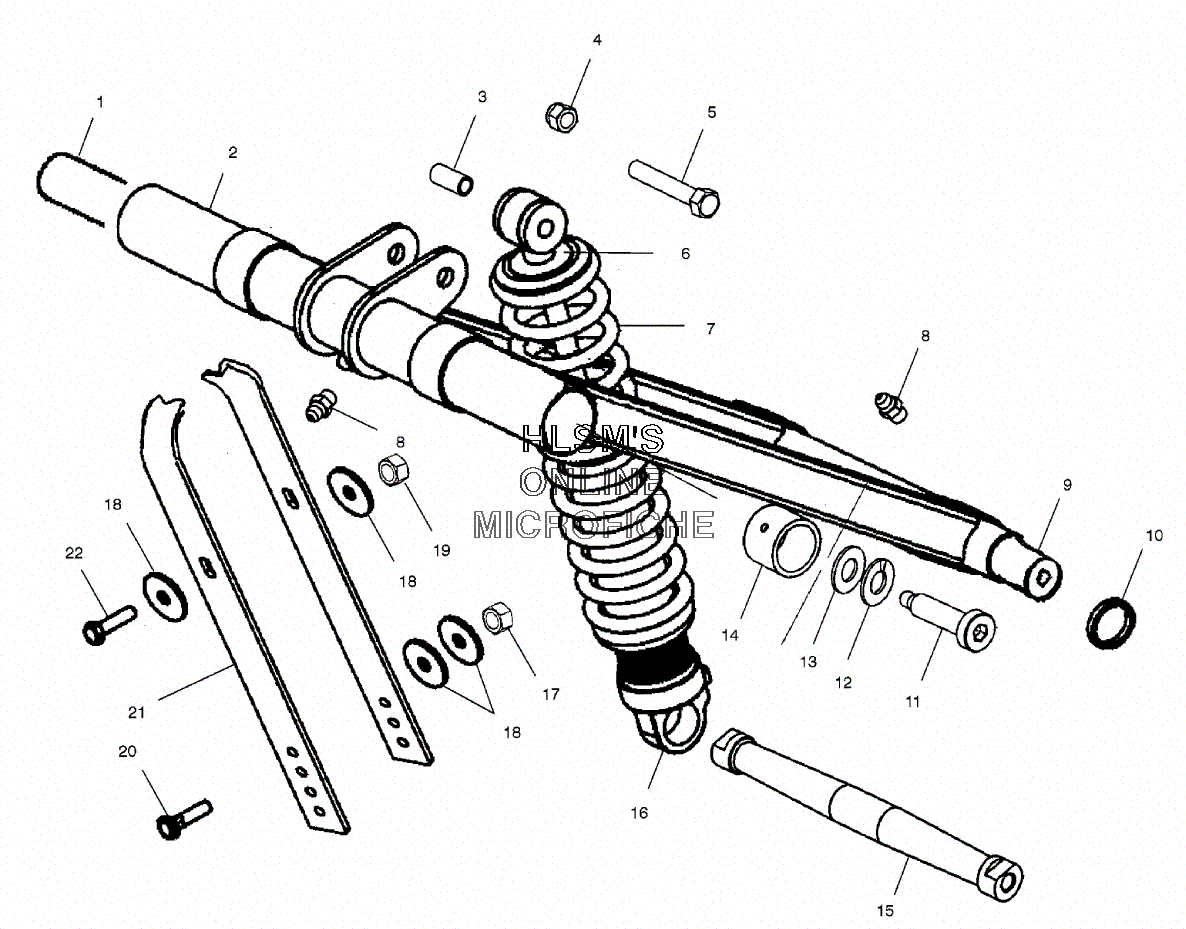

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 800 LE (S01ND8BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5132675 SHAFT, TORQUE ARM (UPPER/FRONT)
    SHAFT, TORQUE ARM (UPPER/FRONT)
  • 2
    1541527-216 WELD, TORQUE ARM (YELLOW)
    WELD, TORQUE ARM (YELLOW)
  • 3
    5333905 SLEEVE
    SLEEVE
  • 4
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 5
    7515415 BOLT
    BOLT
  • 6
    5020618 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 7
    7041671-216 SPRING, COMP (160#, YELLOW)
    SPRING, COMP (160#, YELLOW)
  • 8
    7080424 FITTING, LUBE
    FITTING, LUBE
  • 9
    5132579 SHAFT, PIVOT (LOWER)
    SHAFT, PIVOT (LOWER)
  • 10
    5132783 SPACER, TORQUE ARM (FRONT/LOWER)
    SPACER, TORQUE ARM (FRONT/LOWER)
  • 11
    7517815 SCREW
    SCREW
  • 12
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 13
    7555984 WASHER
    WASHER
  • 14
    5132595 SPACER, TORQUE ARM (FRONT/UPPER)
    SPACER, TORQUE ARM (FRONT/UPPER)
  • 14
    7512257 SCREW SET
    SCREW SET
  • 16
    7042094 SHOCK, FRONT TRACK (M-10)
    SHOCK, FRONT TRACK (M-10)
  • 17
    7542324 NUT
    NUT
  • 18
    7556175 WASHER
    WASHER
  • 19
    7542344 NUT, NYLOC
    NUT, NYLOC
  • 20
    7515316 BOLT
    BOLT
  • 21
    5411940 STRAP, LIMITER (M, 10)
    STRAP, LIMITER (M, 10)
  • 22
    7512392 BOLT
    BOLT
