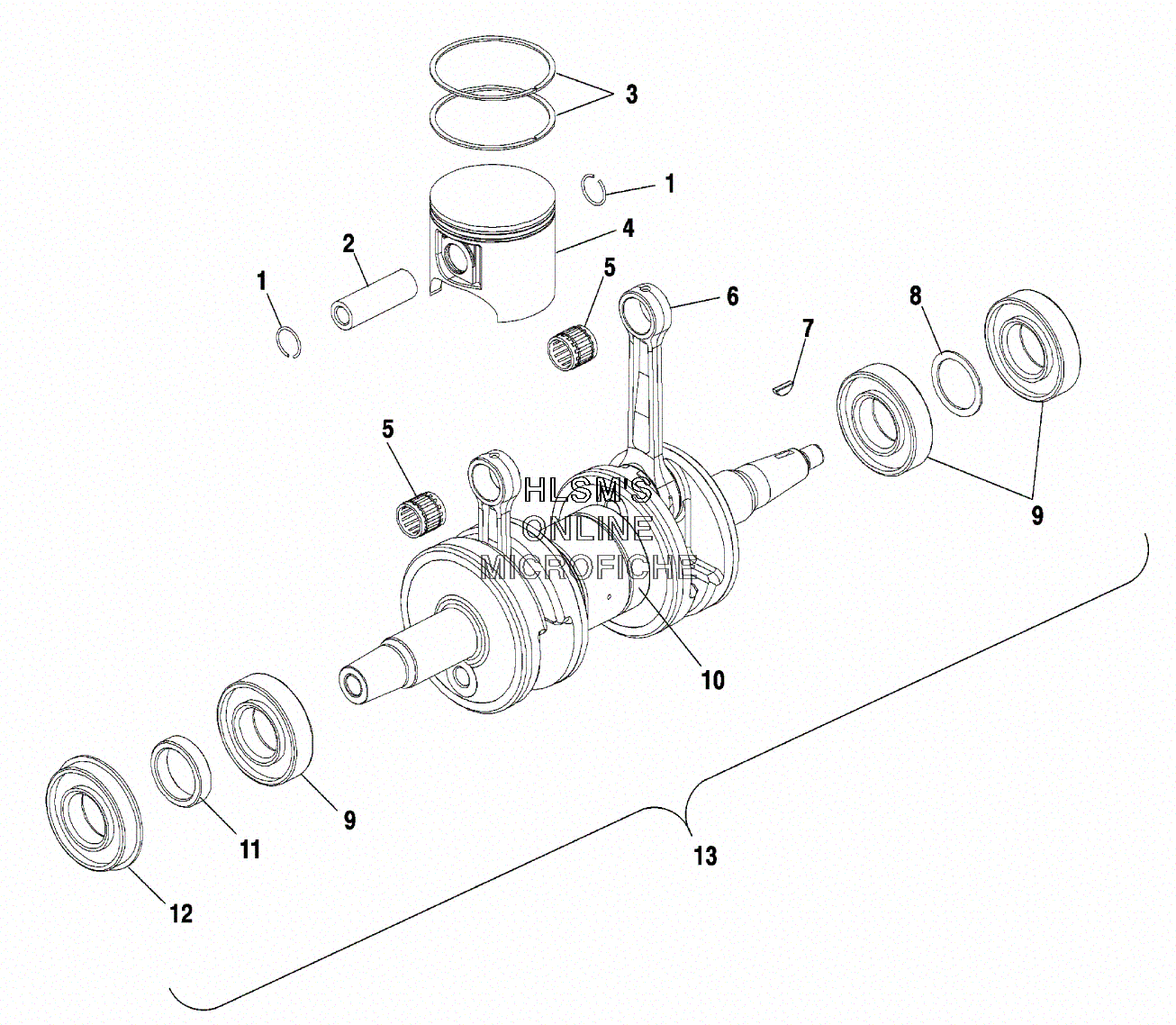

PISTON AND CRANKSHAFT для Polaris 700 RMK 144'' (S01SM7AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3022950 CIRCLIP, PISTON (20MM.)
    CIRCLIP, PISTON (20MM.)
  • 3
    2200895 RINGS (81MM)
    RINGS (81MM)
  • 4
    2201358 PISTON ASSY. (INCL. 1, 2, 3)
    PISTON ASSY. (INCL. 1, 2, 3)
  • 5
    3584001 BEARING, CONNECTION ROD
    BEARING, CONNECTION ROD
  • 6
    2201022 CONN.ROD, MAPE KIT (INCL. ROD, PIN, BEARING, WASHERS)
    CONN.ROD, MAPE KIT (INCL. ROD, PIN, BEARING, WASHERS)
  • 7
    7721117 KEY, WOODRUFF
    KEY, WOODRUFF
  • 8
    7555905 BUSHING
    BUSHING
  • 9
    3585503 BEARING, BALL
    BEARING, BALL
  • 10
    3514318 BEARING, BALL
    BEARING, BALL
  • 11
    5131899 SPACER, CRANKSHAFT
    SPACER, CRANKSHAFT
  • 12
    3514310 BEARING, BALL EXTRACE
    BEARING, BALL EXTRACE
  • 13
    2201360 CRANKSHAFT, 2 CYL (INCL. 8-12)
    CRANKSHAFT, 2 CYL (INCL. 8-12)
