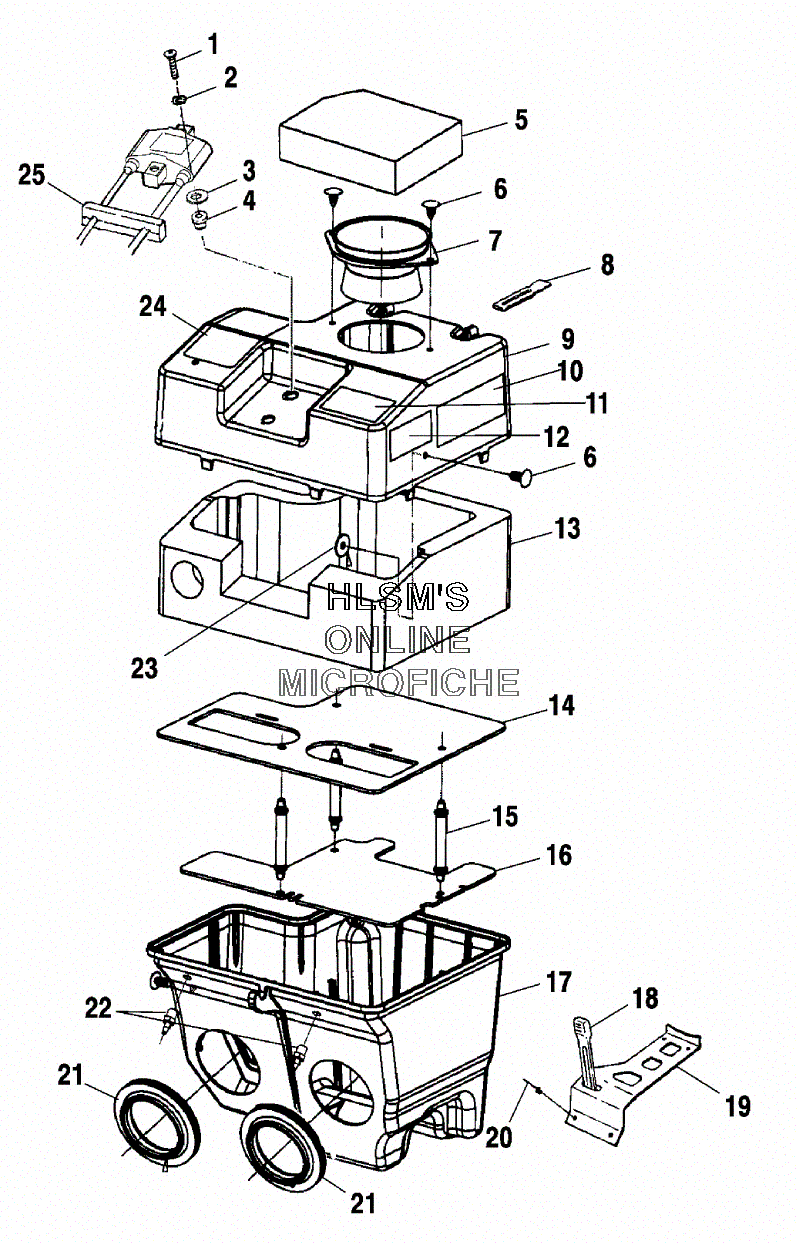

AIR BOX для Polaris 700 RMK 144'' (S01SM7AS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7517610 SCREW
    SCREW
  • 2
    7552604 WASHER
    WASHER
  • 3
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 4
    7547103 NUT
    NUT
  • 5
    2632132 DUCT, AIR INLET ASSY.
    DUCT, AIR INLET ASSY.
  • 6
    7670090 CLIP, PLASTIC DART NYLON
    CLIP, PLASTIC DART NYLON
  • 7
    5433436 DUCT, AIR INLET
    DUCT, AIR INLET
  • 8
    5411075 RETAINER, TAB
    RETAINER, TAB
  • 9
    5433421 SILENCER, INTAKE BASIC (TOP)
    SILENCER, INTAKE BASIC (TOP)
  • 10
    7073820 DECAL, ADJUST DRIVEN CLUTCH
    DECAL, ADJUST DRIVEN CLUTCH
  • 11
    7075351 DECAL, CAUTION AIRBOX
    DECAL, CAUTION AIRBOX
  • 12
    7073426 DECAL, GREASING
    DECAL, GREASING
  • 13
    5811820 FOAM, AIRBOX INTAKE (TOP)
    FOAM, AIRBOX INTAKE (TOP)
  • 14
    5811824 PLATE, SILENCER INTAKE
    PLATE, SILENCER INTAKE
  • 15
    5433437 CONNECTOR, PLATE
    CONNECTOR, PLATE
  • 16
    5811825 PLATE, SILENCER INTAKE (LOWER)
    PLATE, SILENCER INTAKE (LOWER)
  • 17
    5433336 SILENCER, INTAKE
    SILENCER, INTAKE
  • 18
    5411129 STRAP, TIE-DOWN
    STRAP, TIE-DOWN
  • 19
    5241691 BRACKET, SILENCER MOUNT (LOWER)
    BRACKET, SILENCER MOUNT (LOWER)
  • 20
    7621432 RIVET
    RIVET
  • 21
    5411676 BOOT, CARB
    BOOT, CARB
  • 22
    7052127 FITTING, HOSE
    FITTING, HOSE
  • 23
    7555798 WASHER
    WASHER
  • 24
    7075359 DECAL, COOLER SYSTEM
    DECAL, COOLER SYSTEM
  • 25
    7080471 T-CLIP
    T-CLIP
