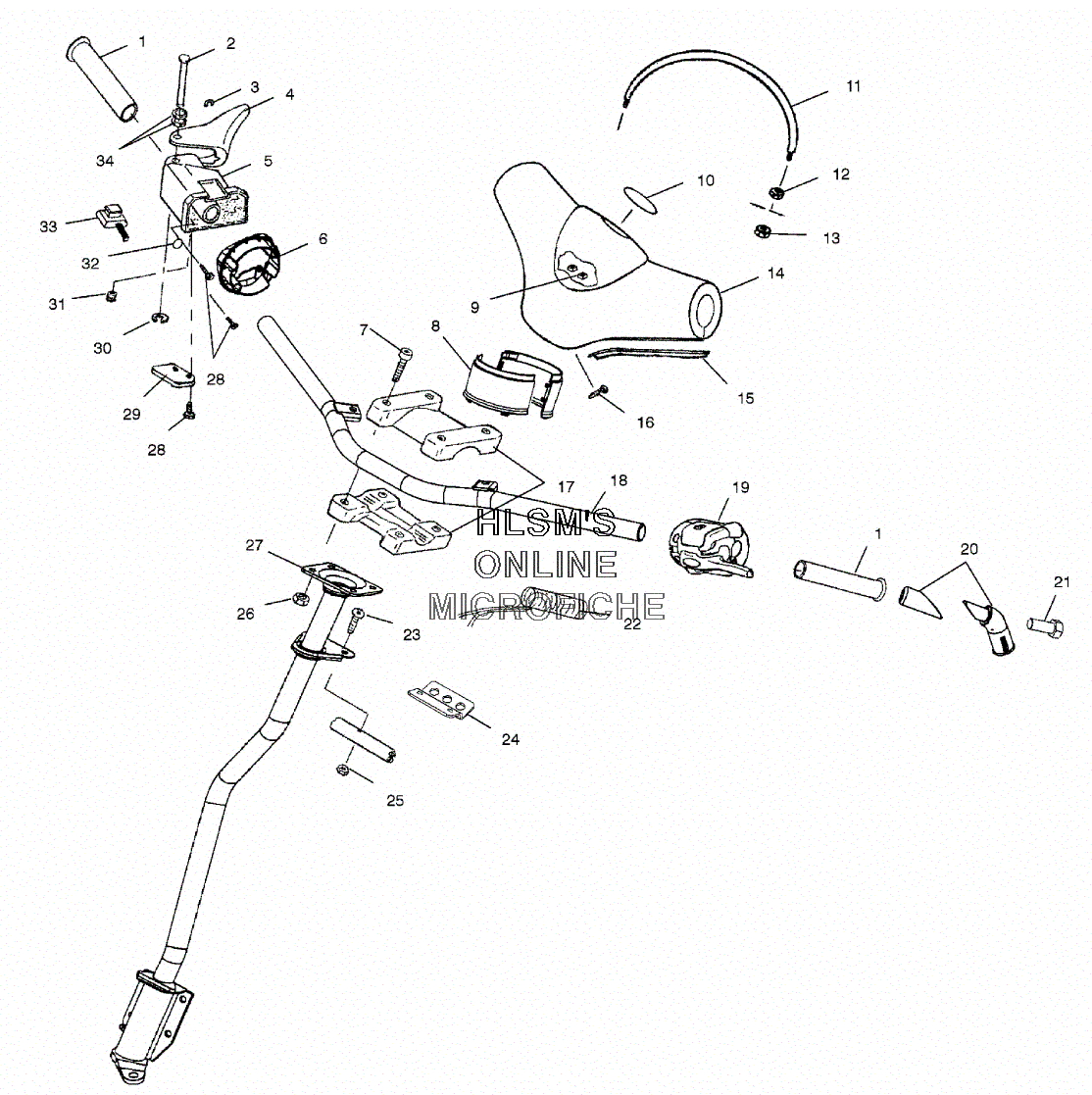

HANDLEBAR ASSEMBLY для Polaris 700 RMK 144'' (S01SM7AS) - 2001 года выпуска
-
№АртикулНазвание
-
15411692 GRIP, HANDLEBAR CUTGRIP, HANDLEBAR CUT
-
27661624 PIN, HINGEPIN, HINGE
-
37710503 RETAINING RINGRETAINING RING
-
45432970 THROTLE, LEVER (35.5MM)THROTLE, LEVER (35.5MM)
-
42010171 LEVER ASSY, HEATER HI/LO (35.5MM)LEVER ASSY, HEATER HI/LO (35.5MM)
-
55431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
65433345 ADAPTER, BLOCK THROTTLEADAPTER, BLOCK THROTTLE
-
77517238 SCREWSCREW
-
85433331 BOOT, HANDLEBARBOOT, HANDLEBAR
-
97670106 NUT, PUSHNUT, PUSH
-
105433754 EMBLEM, ''STAR'' BEZEL HANDLEBAREMBLEM, ''STAR'' BEZEL HANDLEBAR
-
115243396-070 BAR, MOUNTAIN (BLACK)BAR, MOUNTAIN (BLACK)
-
127547107 NUT, JAMNUT, JAM
-
137542344 NUT, NYLOCNUT, NYLOC
-
145433330 COVER, HANDLEBARCOVER, HANDLEBAR
-
155433161 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
164010287 DART, CLIP NYLON (BLACK)DART, CLIP NYLON (BLACK)
-
175630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
181820717-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
201253274-070 HOOKS, HANDLEBAR (45 DEG) (BLACK)HOOKS, HANDLEBAR (45 DEG) (BLACK)
-
217517834 SCREW SOCKET HEADSCREW SOCKET HEAD
-
222460677 HEATER, GRIP LO/MED/HIHEATER, GRIP LO/MED/HI
-
237517377 SCREWSCREW
-
245243625-067 BRACKET, HOOP/TANK (BLACK)BRACKET, HOOP/TANK (BLACK)
-
257542103 NUT, LOCKNUT, LOCK
-
267542122 NUT, LOCKNUT, LOCK
-
271820651-067 STEERING POST (BLACK)STEERING POST (BLACK)
-
287511848 SCREW, SEMSSCREW, SEMS
-
295432261 HOLDER, WIREHOLDER, WIRE
-
307710401 'E' RING'E' RING
-
317512465 SCREWSCREW
-
327555727 RIVET, BURRRIVET, BURR
-
334110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
-
347555730 WASHERWASHER
