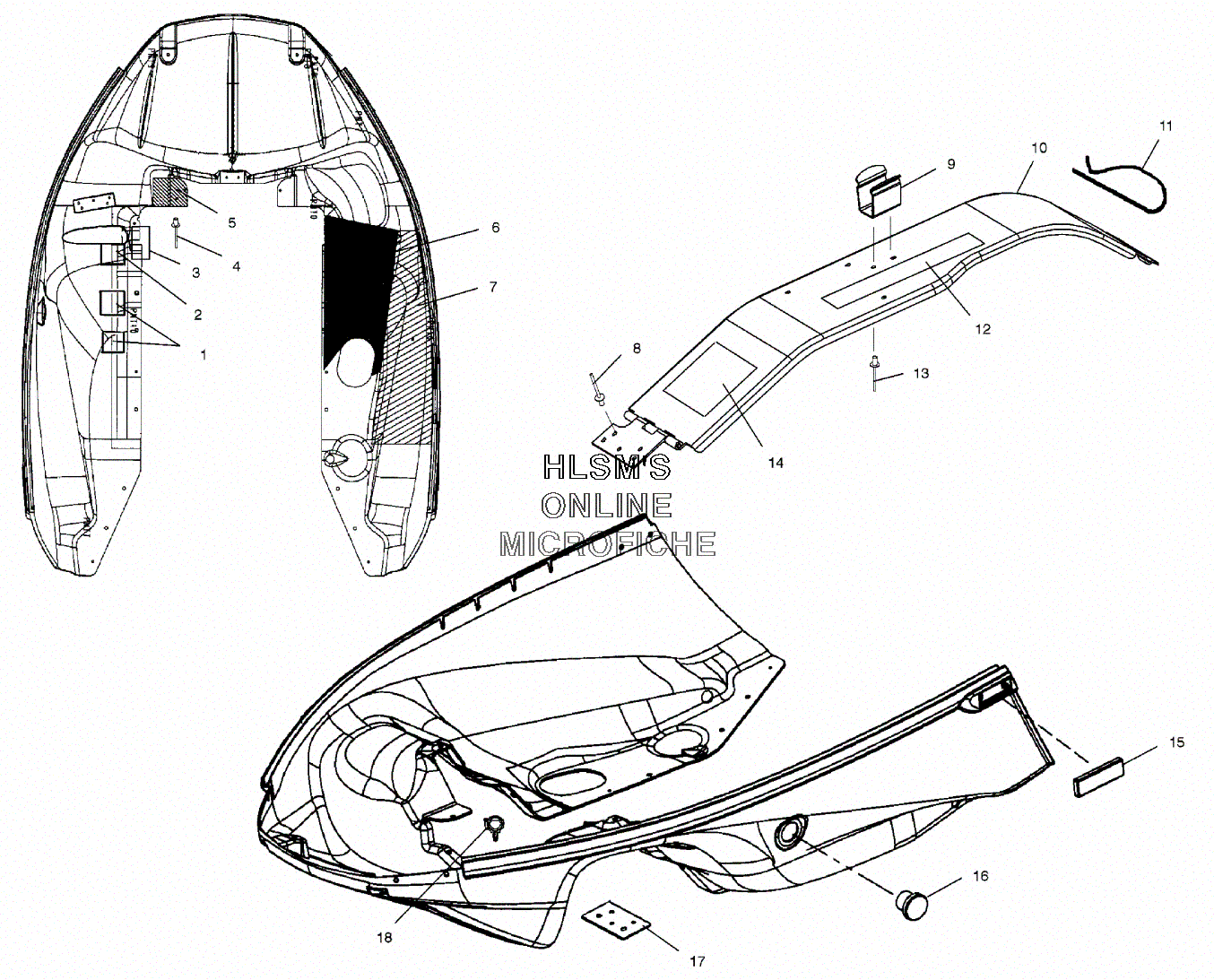

NOSEPAN ASSEMBLY #2 для Polaris 600 CLASSIC EDGE (S01ND6DS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7670130 SPD CLIP ''U'' TYPE (C 53791 014)
    SPD CLIP ''U'' TYPE (C 53791 014)
  • 2
    7080963 RETAIN ''J'' CLP
    RETAIN ''J'' CLP
  • 3
    5811948 FOIL (4.5X1.0)
    FOIL (4.5X1.0)
  • 4
    7621462 RIVET
    RIVET
  • 5
    5812020 FOIL, TAPE, NOSEPAN
    FOIL, TAPE, NOSEPAN
  • 6
    5812019 FOIL, TAPE, NOSEPAN (LOWER/RIGHT)
    FOIL, TAPE, NOSEPAN (LOWER/RIGHT)
  • 7
    5812018 FOIL, TAPE, NOSEPAN (UPPER/RIGHT)
    FOIL, TAPE, NOSEPAN (UPPER/RIGHT)
  • 8
    7621402 POP RIVET
    POP RIVET
  • 9
    5222769 CLIP, BELT RETAINER
    CLIP, BELT RETAINER
  • 10
    1013069 CLUTCH GUARD, ASSY.
    CLUTCH GUARD, ASSY.
  • 11
    7080698 PIN, CLUTCH GUARD
    PIN, CLUTCH GUARD
  • 12
    7075350 DECAL 97 99 ENG/CLUTCH
    DECAL 97 99 ENG/CLUTCH
  • 13
    7621429 RIVET
    RIVET
  • 14
    7079334 DECAL, TROUBLE SHOOT,M-10,121
    DECAL, TROUBLE SHOOT,M-10,121
  • 15
    2670134 REFLECTOR ASSY. (AMBER)
    REFLECTOR ASSY. (AMBER)
  • 16
    5433926 PLUG NOSE PAN, OBLONG
    PLUG NOSE PAN, OBLONG
  • 17
    5211722 PLATE, BACKER, CLUTCH GUARD
    PLATE, BACKER, CLUTCH GUARD
  • 18
    4020139 CLIP, PLASTIC
    CLIP, PLASTIC
