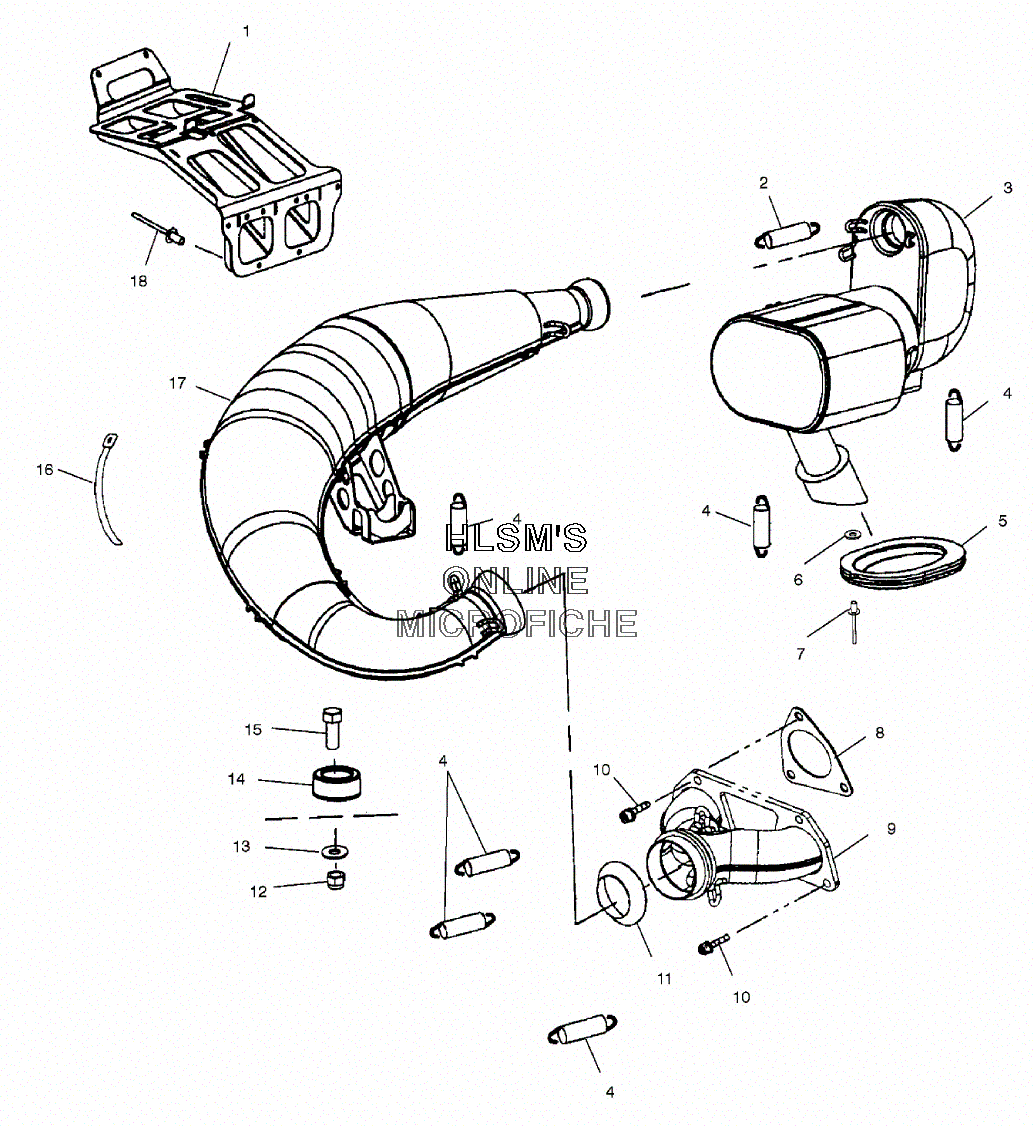

EXHAUST SYSTEM для Polaris 600 CLASSIC EDGE (S01ND6DS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1261008-029 WELD, BRACKET CHASSIS RESTONATOR (BLK)
    WELD, BRACKET CHASSIS RESTONATOR (BLK)
  • 2
    7042029 SPRING EXHAUST
    SPRING EXHAUST
  • 3
    1261009-029 WELD RESONATOR (BLK)
    WELD RESONATOR (BLK)
  • 4
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 5
    5411684 BOOT, EXHAUST, OUTLET
    BOOT, EXHAUST, OUTLET
  • 6
    7555904 BURR, RIVET
    BURR, RIVET
  • 7
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 8
    5811799 GASKET EXHAUST
    GASKET EXHAUST
  • 9
    1261138-029 WELD MANIFOLD (BLK)
    WELD MANIFOLD (BLK)
  • 10
    7517322 SCREW
    SCREW
  • 11
    3610046 SEAL, EXH.SOCKET
    SEAL, EXH.SOCKET
  • 12
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 13
    7555788 WASHER, THRUST
    WASHER, THRUST
  • 14
    5433576 DAMPENER VIBRATIONS
    DAMPENER VIBRATIONS
  • 15
    7515440 BOLT
    BOLT
  • 16
    7080739 CLAMP, WORM (.44 X 3.13)
    CLAMP, WORM (.44 X 3.13)
  • 16
    7080740 CLAMP, WORM (.44 X 3.69)
    CLAMP, WORM (.44 X 3.69)
  • 16
    7080741 CLAMP, WORM (.44 X 4.25)
    CLAMP, WORM (.44 X 4.25)
  • 16
    7080742 CLAMP, WORM (.44 X 6.38)
    CLAMP, WORM (.44 X 6.38)
  • 17
    1261150 TUNED PIPE ASSY.
    TUNED PIPE ASSY.
  • 17
    5241720 COVER, TUNED PIPE (TOP)
    COVER, TUNED PIPE (TOP)
  • 17
    5244476 COVER TUNED PIPE (BOTTOM)
    COVER TUNED PIPE (BOTTOM)
  • 17
    5830111 MATTE, SOUND
    MATTE, SOUND
  • 17
    5830126 MATTE, SOUND (BOTTOM)
    MATTE, SOUND (BOTTOM)
  • 18
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
