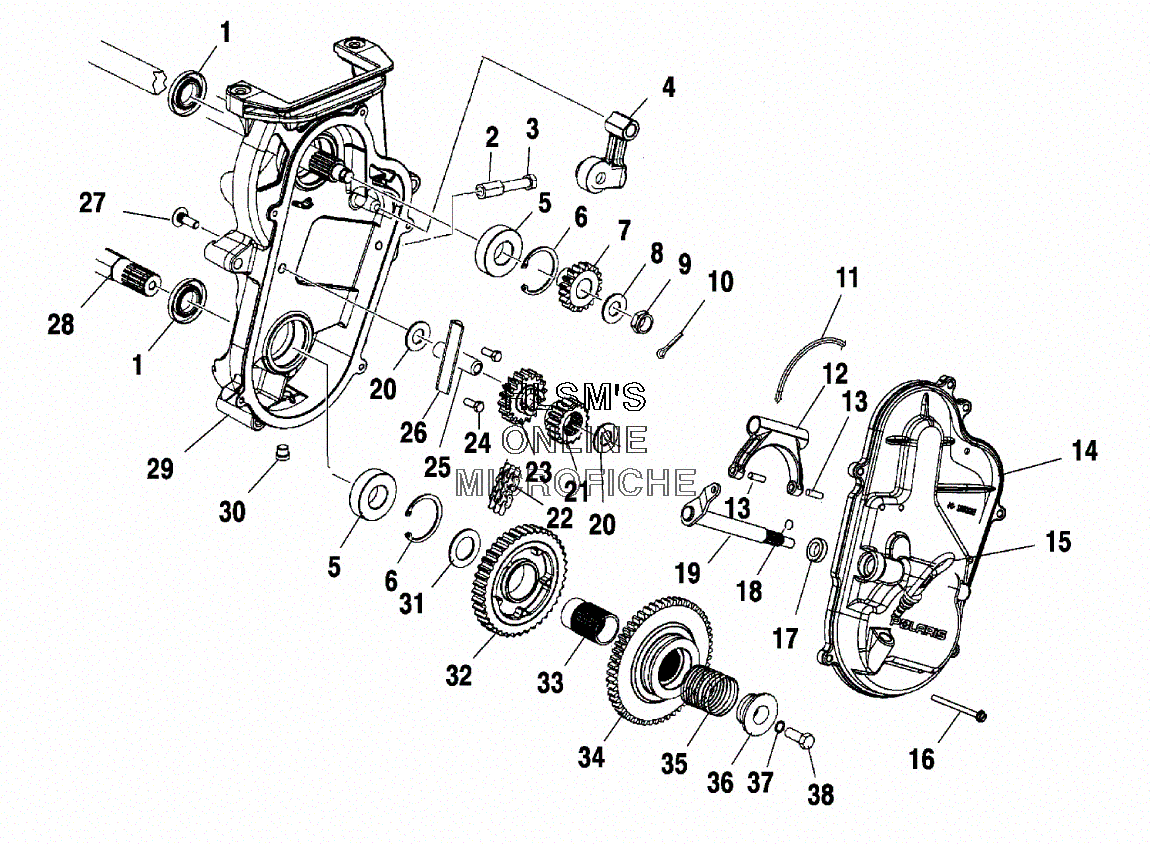

CHAINCASE ASSEMBLY для Polaris 600 CLASSIC EDGE (S01ND6DS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    5132237 NUT CHAIN ADJUSTER (3/8 16)
    NUT CHAIN ADJUSTER (3/8 16)
  • 3
    7512470 SCREW
    SCREW
  • 4
    1332213 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 4
    3553002 BEARING
    BEARING
  • 4
    5630123 WHEEL, C/C IDLER
    WHEEL, C/C IDLER
  • 4
    7558702 WASHER THRUST
    WASHER THRUST
  • 4
    7662210 PIN, CHAIN TIGHTENER
    PIN, CHAIN TIGHTENER
  • 5
    3514309 BEARING, BALL
    BEARING, BALL
  • 6
    7718406 RING, RETAINING
    RING, RETAINING
  • 7
    3221098 SPROCKET, HV, PM (22 TEETH) (3/4W) (15 SPL)
    SPROCKET, HV, PM (22 TEETH) (3/4W) (15 SPL)
  • 8
    7571620 WASHER, SLOTTED
    WASHER, SLOTTED
  • 9
    7542811 NUT
    NUT
  • 10
    7661401 COTTER, PIN
    COTTER, PIN
  • 11
    5411497 GASKET, O-RING, CHAINCASE
    GASKET, O-RING, CHAINCASE
  • 12
    2200363 SHIFT FORK/SHAFT KIT (INCL. 19, 13)
    SHIFT FORK/SHAFT KIT (INCL. 19, 13)
  • 12
    5130805 FORK, SHIFT
    FORK, SHIFT
  • 13
    7661826 PIN, SHIFT FORK
    PIN, SHIFT FORK
  • 14
    5132594 CVR, CC, REV, MACH, 7.92, V PRO
    CVR, CC, REV, MACH, 7.92, V PRO
  • 15
    1332250 DIPSTICK ASSY., W/MAGNET, EDGE
    DIPSTICK ASSY., W/MAGNET, EDGE
  • 16
    7512242 SCREW
    SCREW
  • 17
    3610029 SEAL, OIL
    SEAL, OIL
  • 18
    7710415 RING, RETAINER
    RING, RETAINER
  • 19
    1341313-067 SHIFT SHAFT (BLK)
    SHIFT SHAFT (BLK)
  • 20
    7555877 WASHER, THRUST
    WASHER, THRUST
  • 21
    1341075 GEAR, SPUR PINION
    GEAR, SPUR PINION
  • 21
    3554508 BEARING, NEEDLE
    BEARING, NEEDLE
  • 22
    3221109 CHAIN, HYVO (74P) (3/4W)
    CHAIN, HYVO (74P) (3/4W)
  • 23
    1341241 SPROCKET, PINION
    SPROCKET, PINION
  • 23
    3554508 BEARING, NEEDLE
    BEARING, NEEDLE
  • 24
    7512019 SCREW
    SCREW
  • 25
    5131770 SHAFT, PINION, W/WRENCH FLATS
    SHAFT, PINION, W/WRENCH FLATS
  • 26
    5243162 BRACKET CHAIN RETENTION, 7.05
    BRACKET CHAIN RETENTION, 7.05
  • 27
    7515477 BOLT
    BOLT
  • 29
    5132773 CHAINCASE 7.92 CD, ALUM
    CHAINCASE 7.92 CD, ALUM
  • 30
    7052115 PLUG
    PLUG
  • 31
    7555871 WASHER, REVERSE
    WASHER, REVERSE
  • 32
    1341227 SPROCKET ASSY., REV (40 TEETH) (3/4W)
    SPROCKET ASSY., REV (40 TEETH) (3/4W)
  • 33
    5130720 COUPLER, DRIVE
    COUPLER, DRIVE
  • 34
    1341362 REVERSE GEAR ASSY.
    REVERSE GEAR ASSY.
  • 35
    7041887 SPRING COMPRESSION
    SPRING COMPRESSION
  • 36
    5130727 RETAINER, DRIVE COUPLER
    RETAINER, DRIVE COUPLER
  • 37
    7552901 LOCK WASHER
    LOCK WASHER
  • 38
    7517581 SCREW
    SCREW
