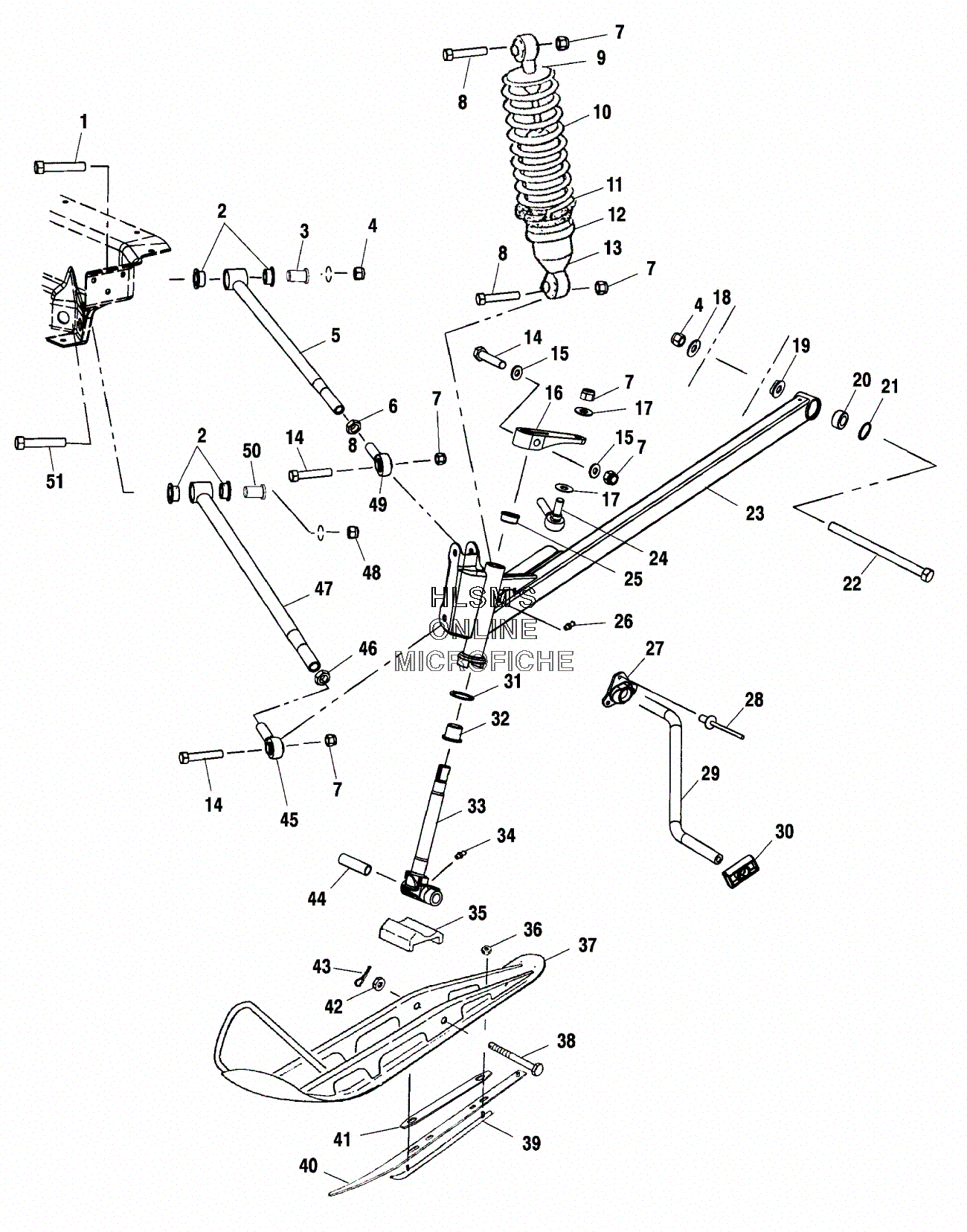

SUSPENSION - FRONT W/ SKI для Polaris 500 INDY (S01NB4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17512597 BOLTBOLT
-
25434036 BUSHING-RAD ROD PIVOT (INNER)BUSHING-RAD ROD PIVOT (INNER)
-
35132779 BUSHING, SHLDR, .443X.750X1.215BUSHING, SHLDR, .443X.750X1.215
-
47547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
51820679-067 RADIUS ROD (BLACK/UPPER)RADIUS ROD (BLACK/UPPER)
-
67542520 NUT JAMNUT JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 BOLTBOLT
-
95630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
107041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
115431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
121500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
137041932 SHOCK-IFS, NITREX, 11.09X16.35SHOCK-IFS, NITREX, 11.09X16.35
-
147517583 SCREWSCREW
-
157555832 WASHERWASHER
-
165132728 ARM-STEERING, MACHINED, EDGEARM-STEERING, MACHINED, EDGE
-
177555797 WASHERWASHER
-
187555820 WASHERWASHER
-
195132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
207061042 BEARING-SPHERICAL, 7/16, PLASTICBEARING-SPHERICAL, 7/16, PLASTIC
-
217710437 RING, RETAININGRING, RETAINING
-
227512099 BOLTBOLT
-
231820962-067 ASSY., TRAILING ARM, SVC, (LEFT/BLACK) (INCL. 20, 21)ASSY., TRAILING ARM, SVC, (LEFT/BLACK) (INCL. 20, 21)
-
231820963-067 ASSY. TRAILING ARM, SVC (BLACK/RIGHT) (INCL. 20, 21)ASSY. TRAILING ARM, SVC (BLACK/RIGHT) (INCL. 20, 21)
-
253573909 BUSHING, FLANGEBUSHING, FLANGE
-
267080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
275433234 BUSHING, TORSION BARBUSHING, TORSION BAR
-
287621477 RIVET,RIVET,
-
295244415-067 BAR, TROSION, 1/2, 42.5 EDGE (BLACK)BAR, TROSION, 1/2, 42.5 EDGE (BLACK)
-
305433884 SLIDE, TORSION BAR, 1/2SLIDE, TORSION BAR, 1/2
-
317556509 WASHER SPECIALWASHER SPECIAL
-
323574208 BUSHING, SPINDLE HSGBUSHING, SPINDLE HSG
-
336230160-067 SHAFT, SPINDLE HARDENED (BLACK)SHAFT, SPINDLE HARDENED (BLACK)
-
347080306 FITTING, LUBE.W/BALL CK.FITTING, LUBE.W/BALL CK.
-
355411083 STOP, RUBBERSTOP, RUBBER
-
367542324 NUTNUT
-
371820430-067 SKI WELDSKI WELD
-
387515462 BOLTBOLT
-
391820318-067 SKAG (BLACK)SKAG (BLACK)
-
401011829-067 PLATE, SKAGPLATE, SKAG
-
402870976 SKAG, PR, 3'' CARBIDE, E-Z STEER (INCL. 39, 40)SKAG, PR, 3'' CARBIDE, E-Z STEER (INCL. 39, 40)
-
415245145-067 SHIM, SKAG PLATE (BLACK)SHIM, SKAG PLATE (BLACK)
-
427542438 NUT, CASTLENUT, CASTLE
-
437661209 PIN, COTTERPIN, COTTER
-
445010158 BUSHING, PIVOTBUSHING, PIVOT
-
457061060 ROD END, RADIUS, 1/2ROD END, RADIUS, 1/2
-
467542711 NUT-JAMNUT-JAM
-
471820677-067 RADIUS ROD (LOWER/BLACK)RADIUS ROD (LOWER/BLACK)
-
487542703 NUT FLEXNUT FLEX
-
497061061 ROD END, RADIUS, 7/16ROD END, RADIUS, 7/16
-
505132780 BUSHING, SHLDR .505X.750X1.215BUSHING, SHLDR .505X.750X1.215
-
517512684 BOLTBOLT
