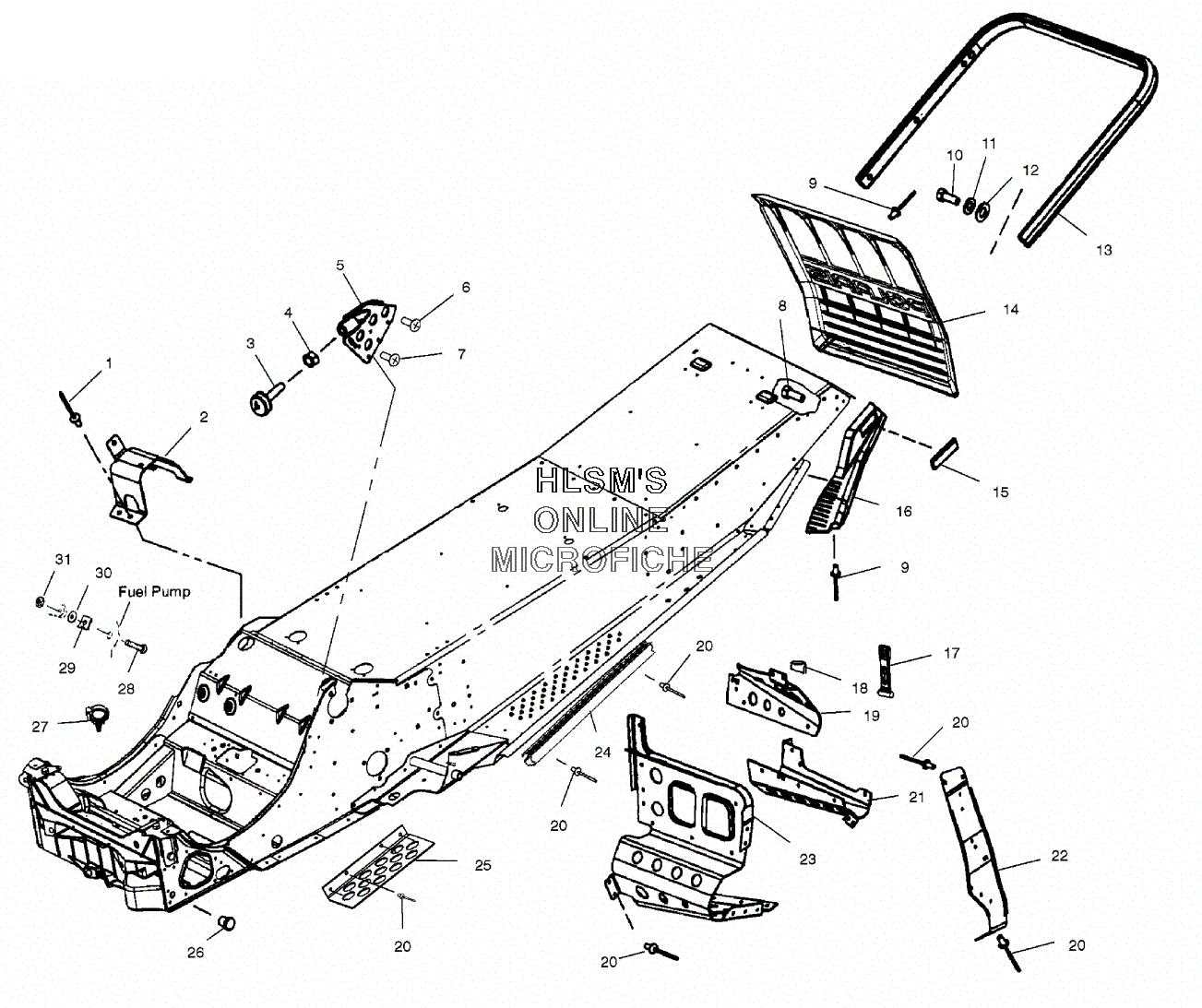

FRAME - CHASSIS для Polaris 500 INDY (S01NB4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17621453 RIVETRIVET
-
25245003 BRACKET, JACKSHAFT SHIELDBRACKET, JACKSHAFT SHIELD
-
33021104 STOP, TORQUE COURSE 3/8-16STOP, TORQUE COURSE 3/8-16
-
47542404 NUTNUT
-
51013399 WELD, TORQUE STOP, FUJIWELD, TORQUE STOP, FUJI
-
67517632 SCREWSCREW
-
77517854 SCREWSCREW
-
87517441 SCREWSCREW
-
97621472 RIVETRIVET
-
107512240 BOLTBOLT
-
117552801 LOCK WASHERLOCK WASHER
-
127558301 WASHERWASHER
-
132632165-067 BUMPER (REAR/ BLACK)BUMPER (REAR/ BLACK)
-
145433521-1106 FLAP, SNOW EDGE (BLACK W/CHROME)FLAP, SNOW EDGE (BLACK W/CHROME)
-
152670133 REFLECTOR ASSY. (RED)REFLECTOR ASSY. (RED)
-
165433519-070 SKIRT, SNOW EDGE (LEFT/BLACK)SKIRT, SNOW EDGE (LEFT/BLACK)
-
165433520-070 ASSY., SNOWSKIRT/REFLECTOR (RIGHT/BLACK)ASSY., SNOWSKIRT/REFLECTOR (RIGHT/BLACK)
-
175433150 STRAP, RUBBERSTRAP, RUBBER
-
185521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
195243939-067 MOUNT, CONSOLE (LEFT/BLACK)MOUNT, CONSOLE (LEFT/BLACK)
-
195243940-067 MOUNT, CONSOLE (RIGHT/BLACK)MOUNT, CONSOLE (RIGHT/BLACK)
-
207661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
215243153-067 FOOTREST, UP., TOE-CLP (LEFT/BLACK)FOOTREST, UP., TOE-CLP (LEFT/BLACK)
-
215243154-067 FOOTREST, UP., TOE-CLIP, (RIGHT), BLKFOOTREST, UP., TOE-CLIP, (RIGHT), BLK
-
225242741-067 SUPPORT, FOOTREST (LEFT/BLACK)SUPPORT, FOOTREST (LEFT/BLACK)
-
225242742-067 SUPPORT, FOOTREST (RIGHT/BLACK)SUPPORT, FOOTREST (RIGHT/BLACK)
-
235242740-067 FOOTREST (RIGHT/BLACK)FOOTREST (RIGHT/BLACK)
-
235245288-067 FOOTREST- (LEFT), 12 GUAGE, BLKFOOTREST- (LEFT), 12 GUAGE, BLK
-
245245118 BRACE, TUNNEL ROLLBRACE, TUNNEL ROLL
-
255245066 GUARD, BELT, EDGEGUARD, BELT, EDGE
-
267080416 PLUG, HOLEPLUG, HOLE
-
274020139 CLIP, PLASTICCLIP, PLASTIC
-
287512275 BOLT-CARRIAGEBOLT-CARRIAGE
-
297670021 SPEED NUTSPEED NUT
-
307555932 WASHER, NYLONWASHER, NYLON
-
317542122 NUT-LOCKNUT-LOCK
-
311013393-067 ASSY.-CHASSIS, SVC, EDGE, BLKASSY.-CHASSIS, SVC, EDGE, BLK
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ TRACK
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- • FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- SEAT W/ GAS TANK ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - GAS- REAR TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WATER PUMP
