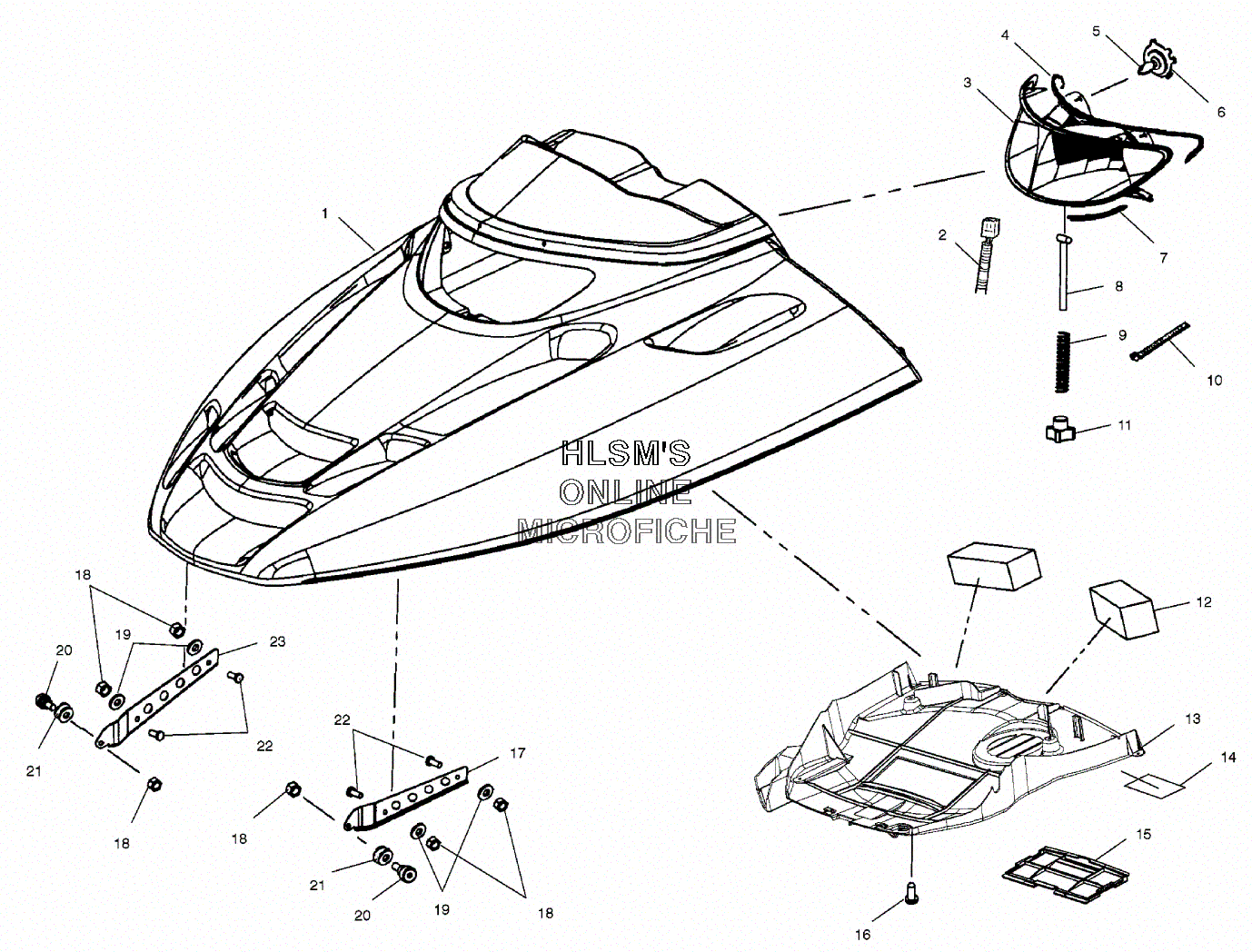

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 500 INDY (S01NB4BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    2632224-177 HOOD, EDGE, SVC, BLK MET (INCL. FOAM AND FOIL)
    HOOD, EDGE, SVC, BLK MET (INCL. FOAM AND FOIL)
  • 2
    2460791 HARNESS, HDLGHT, EDGE, COMMON
    HARNESS, HDLGHT, EDGE, COMMON
  • 3
    2410132 HEADLAMP ASSY., 2-BULB EDGE (INCL. BULBS)
    HEADLAMP ASSY., 2-BULB EDGE (INCL. BULBS)
  • 4
    5812175 FOAM-HEADLIGHT SEAL EDGE, TOP
    FOAM-HEADLIGHT SEAL EDGE, TOP
  • 5
    2870448 BULB, QUARTZ.H/L, INDY
    BULB, QUARTZ.H/L, INDY
  • 6
    4032063 RETAINER, H/L BULB
    RETAINER, H/L BULB
  • 7
    5812174 FOAM-HEADLIGHT SEAL EDGE, BOT
    FOAM-HEADLIGHT SEAL EDGE, BOT
  • 8
    7517872 BOLT-TEE ADJUSTUSTER, 2.25
    BOLT-TEE ADJUSTUSTER, 2.25
  • 9
    7041954 SPRING-HEADLIGHT ADJUSTUST
    SPRING-HEADLIGHT ADJUSTUST
  • 10
    7080138 STRAP, PANDUIT
    STRAP, PANDUIT
  • 11
    7080887 KNOB, HEADLIGHT, ADJUSTUST, LOCKINGB
    KNOB, HEADLIGHT, ADJUSTUST, LOCKINGB
  • 12
    5811793 FOAM, PREFILTER
    FOAM, PREFILTER
  • 13
    5433516 PLENUM, HOOD INTAKE
    PLENUM, HOOD INTAKE
  • 14
    7079197 DECAL-SUSP.SET-UP, EDGE
    DECAL-SUSP.SET-UP, EDGE
  • 15
    5433660 COVER, HEADLIGHT ACCESS
    COVER, HEADLIGHT ACCESS
  • 16
    7512068 SCREW
    SCREW
  • 17
    5243567-067 HINGE-UPPER, (LEFT), BLK
    HINGE-UPPER, (LEFT), BLK
  • 18
    7542122 NUT-LOCK
    NUT-LOCK
  • 19
    7558301 WASHER
    WASHER
  • 20
    7512113 SCREW
    SCREW
  • 21
    5332403 SPACER, HINGE
    SPACER, HINGE
  • 22
    7512240 BOLT
    BOLT
  • 23
    5243568-067 HINGE-UPPER, (RIGHT), BLK
    HINGE-UPPER, (RIGHT), BLK
