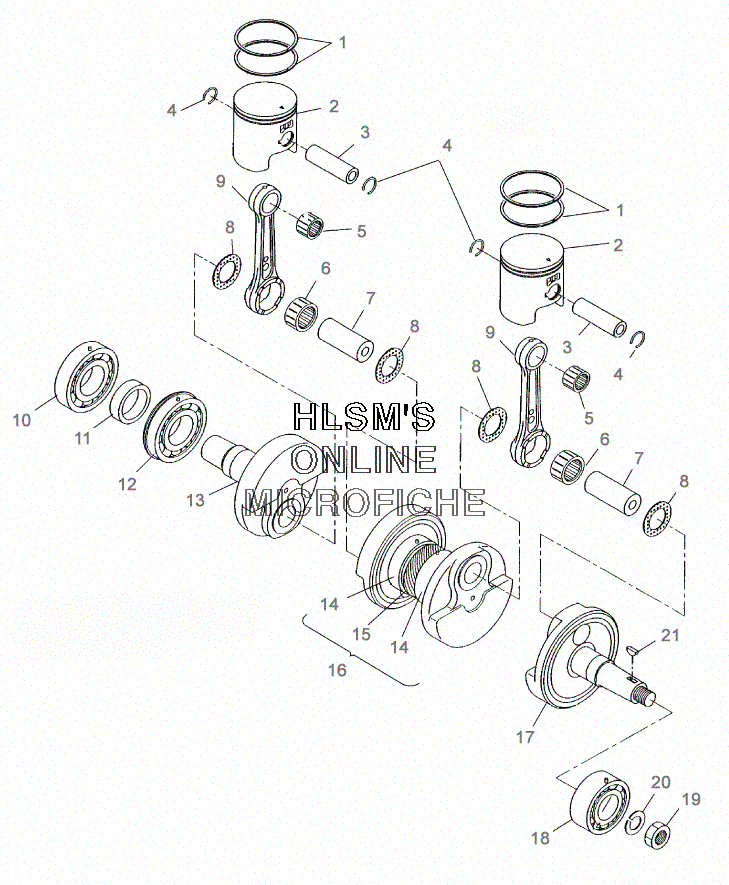

PISTON AND CRANKSHAFT для Polaris SPORT TOURING (S00SD5BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3086988 PISTON, RING (STD)
    PISTON, RING (STD)
  • 1
    3086989 PISTON, RING (.010''/.25MM O/S) (OPT)
    PISTON, RING (.010''/.25MM O/S) (OPT)
  • 1
    3085710 RING, PISTON (0.50MM/.020''O/S) (OPT)
    RING, PISTON (0.50MM/.020''O/S) (OPT)
  • 2
    3087024 PISTON SET (STD)
    PISTON SET (STD)
  • 2
    3085939 PISTON SET (0.25M/.010''O/S) (OPT)
    PISTON SET (0.25M/.010''O/S) (OPT)
  • 2
    3087026 PISTON SET (.020''/.50MM O/S) (OPT)
    PISTON SET (.020''/.50MM O/S) (OPT)
  • 3
    3083838 PIN, PISTON
    PIN, PISTON
  • 4
    3084167 CLIP
    CLIP
  • 5
    3085595 BEARING, SMALL END
    BEARING, SMALL END
  • 6
    3086390 BEARING, LARGE END
    BEARING, LARGE END
  • 7
    3083456 PIN, CRANK 2
    PIN, CRANK 2
  • 8
    3083277 SPACER, CRANKPIN
    SPACER, CRANKPIN
  • 9
    3240083 ROD, CONNECTING
    ROD, CONNECTING
  • 10
    3085754 BEARING, BALL
    BEARING, BALL
  • 11
    3085677 SPACER
    SPACER
  • 12
    3085753 BEARING, BALL
    BEARING, BALL
  • 13
    3085675 CRANKSHAFT #3 (PTO)
    CRANKSHAFT #3 (PTO)
  • 14
    3084586 BEARING, BALL
    BEARING, BALL
  • 15
    3083780 DRIVE GEAR, OIL PUMP
    DRIVE GEAR, OIL PUMP
  • 16
    3085674 CRANKSHAFT #2 (INCL. 7, 14, 15)
    CRANKSHAFT #2 (INCL. 7, 14, 15)
  • 17
    3086389 CRANKSHAFT ASSY. (INCL. 8, 9, 10, 14, 16)
    CRANKSHAFT ASSY. (INCL. 8, 9, 10, 14, 16)
  • 17
    3085673 CRANKSHAFT #1 (MAG)
    CRANKSHAFT #1 (MAG)
  • 18
    3084681 BEARING, BALL
    BEARING, BALL
  • 19
    3083093 NUT
    NUT
  • 20
    3083094 WASHER, SPRING
    WASHER, SPRING
  • 21
    3081543 KEY, WOODRUFF
    KEY, WOODRUFF
