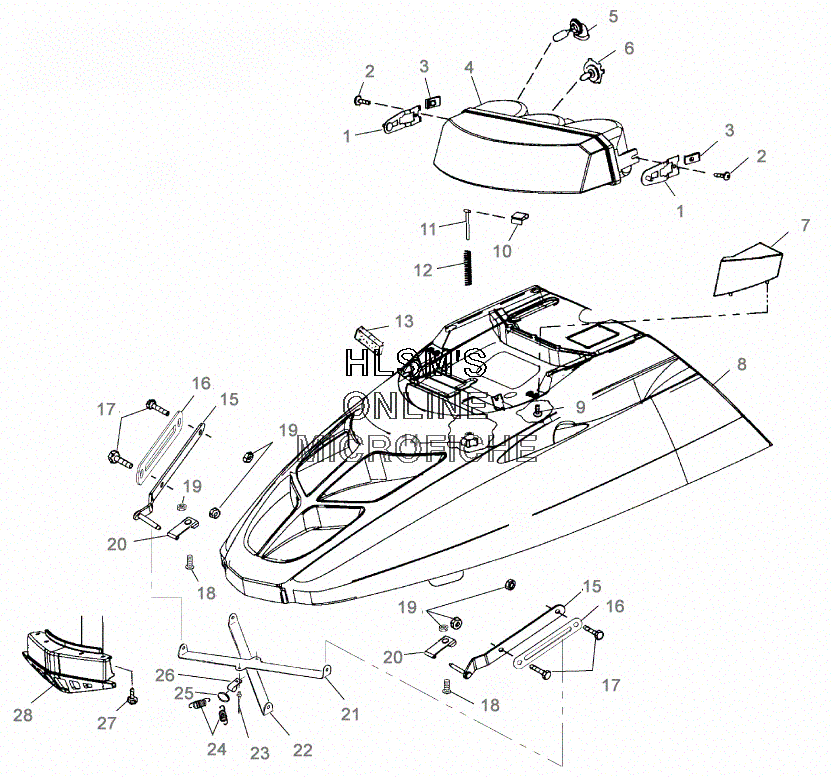

HOOD ASSEMBLY W/ HEADLIGHT для Polaris SPORT TOURING (S00SD5BS) - 2000 года выпуска`
-
№АртикулНазвание
-
11011944-067 MOUNT, WELD HEADLIGHTMOUNT, WELD HEADLIGHT
-
27515107 BOLTBOLT
-
37670057 NUT, SPEEDNUT, SPEED
-
42433016 HEADLAMP ASSY., THREE BULB (INCL. BULBS)HEADLAMP ASSY., THREE BULB (INCL. BULBS)
-
54010253 BULB, HEADLIGHT (50 WATT)BULB, HEADLIGHT (50 WATT)
-
62870448 BULB, QUARTZ HEADLIGHT INDYBULB, QUARTZ HEADLIGHT INDY
-
75431855 LENS, REFLECTOR (LEFT/CLEAR)LENS, REFLECTOR (LEFT/CLEAR)
-
75431856 LENS, REFLECTOR (RIGHT/CLEAR)LENS, REFLECTOR (RIGHT/CLEAR)
-
82632014-259 HOOD, HBD C.APPRED/FC (INCL. FOAM/FOIL)HOOD, HBD C.APPRED/FC (INCL. FOAM/FOIL)
-
97512048 SCREWSCREW
-
107670040 CLIP, U TYPECLIP, U TYPE
-
117517746 BOLT, TEE ADJUSTER (2.25)BOLT, TEE ADJUSTER (2.25)
-
127041308 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
135811687 FOAM, HEADLIGHT SEAL W/PSAFOAM, HEADLIGHT SEAL W/PSA
-
147080887 KNOB, HEADLIGHT ADJUST LOCKINGKNOB, HEADLIGHT ADJUST LOCKING
-
151012750 HINGE (LEFT/UPPER)HINGE (LEFT/UPPER)
-
151012751 HINGE (RIGHT/UPPER)HINGE (RIGHT/UPPER)
-
165242948 PLATE, BOLTPLATE, BOLT
-
177512247 BOLTBOLT
-
187515203 BOLTBOLT
-
197542122 NUT, LOCKNUT, LOCK
-
205244395 PLATE, HINGE (LOWER)PLATE, HINGE (LOWER)
-
215242945 BRACE, HOOD (UPPER)BRACE, HOOD (UPPER)
-
225242946 BRACE, HOOD (LOWER)BRACE, HOOD (LOWER)
-
237661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
247041732 SPRING, EXT.SPRING, EXT.
-
257041760 SPRING, ATTACHMENT RINGSPRING, ATTACHMENT RING
-
267080372 CLAMP, RETAINERCLAMP, RETAINER
-
277517441 SCREWSCREW
-
285432931 SCREEN, FRONTSCREEN, FRONT
