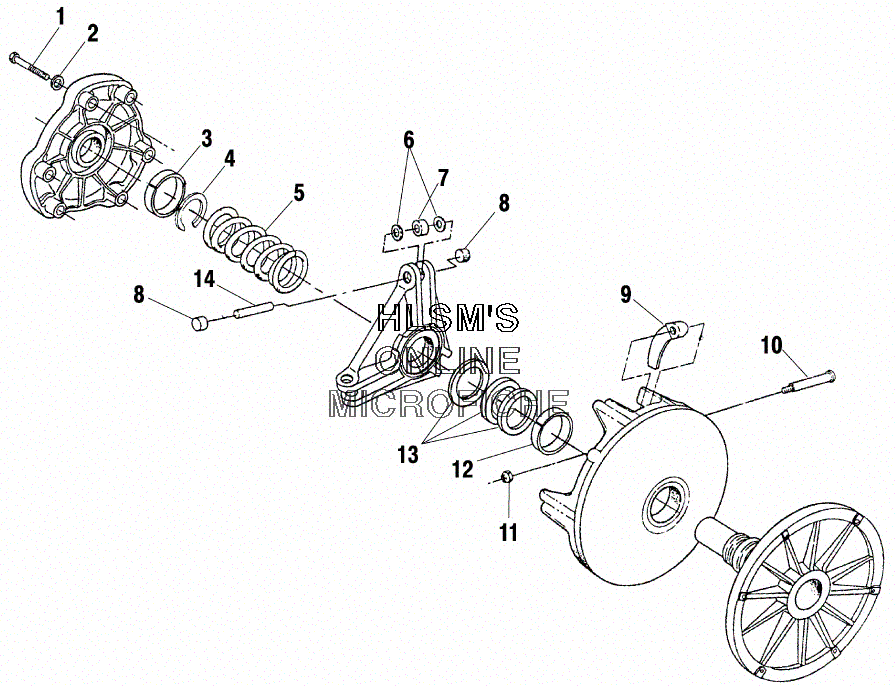

CLUTCH - DRIVE для Polaris SPORT TOURING (S00SD5BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 LOCK, WASHER
    LOCK, WASHER
  • 3
    3576516 COVER, BEARING
    COVER, BEARING
  • 4
    7710417 RING, RETAINING BOLT
    RING, RETAINING BOLT
  • 5
    7041781 SPRING, CLUTCH (DARK BLUE/WHITE)
    SPRING, CLUTCH (DARK BLUE/WHITE)
  • 6
    5430945 WASHER
    WASHER
  • 7
    1321622 ROLLER AND BUSHING ASSY.
    ROLLER AND BUSHING ASSY.
  • 8
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 9
    1321587 WEIGHT/BUSHING ASSY.
    WEIGHT/BUSHING ASSY.
  • 10
    7515105 PIN, WT. HARDENED
    PIN, WT. HARDENED
  • 11
    7541906 NUT, FLEX LOC
    NUT, FLEX LOC
  • 12
    3576504 BUSHING, DRIVEN (1/2'')
    BUSHING, DRIVEN (1/2'')
  • 13
    5210752 SPACER (.020MM) (OPT)
    SPACER (.020MM) (OPT)
  • 13
    5210753 SPACER (.032MM) (OPT)
    SPACER (.032MM) (OPT)
  • 13
    5210754 SPACER (.050MM) (OPT)
    SPACER (.050MM) (OPT)
  • 13
    5242981 SPACER (.025MM) (OPT)
    SPACER (.025MM) (OPT)
  • 14
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 14
    1321768 CLUTCH, BASIC #94 (DRIVE) (INCL. 1, 4, 6, 8, 10, 14)
    CLUTCH, BASIC #94 (DRIVE) (INCL. 1, 4, 6, 8, 10, 14)
