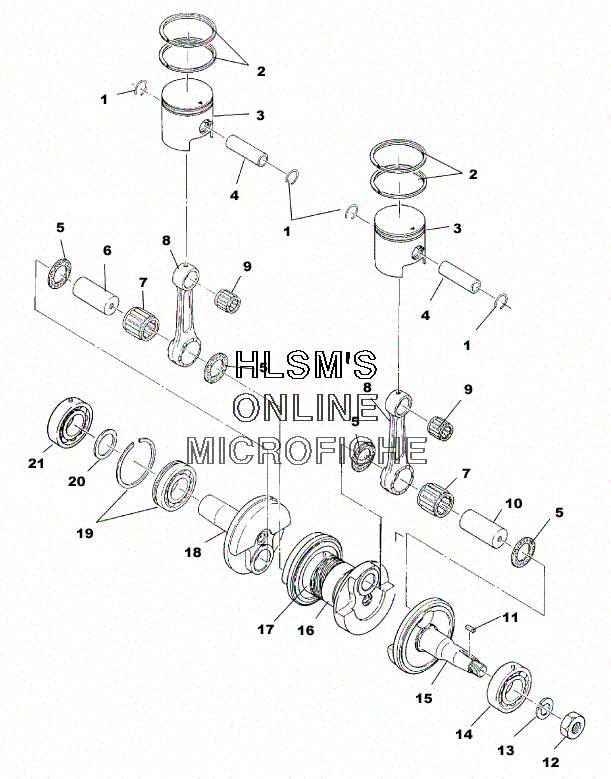

PISTON AND CRANKSHAFT для Polaris CLASSIC TOURING (S00ST4BS) - 2000 года выпуска`

№

Артикул

Название
1

3083839 CLIP, PISTON PIN

CLIP, PISTON PIN

880 ₽
2

3084342 RING, PISTON (STD)

RING, PISTON (STD)

8 950 ₽
2

3084343 RING, PISTON (0.25MM/.010''O/S) (OPT)

RING, PISTON (0.25MM/.010''O/S) (OPT)

13 520 ₽
2

3084344 RING, PISTON (0.50MM/.020''O/S) (OPT)

RING, PISTON (0.50MM/.020''O/S) (OPT)

13 520 ₽
3

3085869 PISTON SET (STD)

PISTON SET (STD)

29 120 ₽
3

3085870 PISTON SET (0.25MM/.010''O/S) (OPT)

PISTON SET (0.25MM/.010''O/S) (OPT)

30 160 ₽
3

3085871 PISTON SET (0.50MM/.020''O/S) (OPT)

PISTON SET (0.50MM/.020''O/S) (OPT)

30 160 ₽
4

3083858 PIN, PISTON

PIN, PISTON

5 410 ₽
5

3083277 SPACER, CRANKPIN

SPACER, CRANKPIN

3 430 ₽
6

3083456 PIN, CRANK (57MM)

PIN, CRANK (57MM)

5 830 ₽
7

3085628 BEARING, END (LARGE)

BEARING, END (LARGE)

7 280 ₽
8

3083252 ROD CONNECTING

ROD CONNECTING

27 040 ₽
9

3083216 BEARING, END (SMALL)

BEARING, END (SMALL)

3 750 ₽
10

3083233 PIN, CRANK (56MM)

PIN, CRANK (56MM)

5 620 ₽
11

3080130 KEY WOODRUFF

KEY WOODRUFF

1 870 ₽
12

3083093 NUT

NUT

3 120 ₽
13

3083094 WASHER SPRING

WASHER SPRING

150 ₽
14

3086878 BEARING, BALL

BEARING, BALL

8 950 ₽
15

3086834 CRANKSHAFT ASSY. (INCL. 5 8, 10 18)

CRANKSHAFT ASSY. (INCL. 5 8, 10 18)

130 ₽
15

3086835 CRANKSHAFT 1 (MAG)

CRANKSHAFT 1 (MAG)

79 040 ₽
16

3083713 CRANKSHAFT 2 (CENTER) (INCL. 6, 10)

CRANKSHAFT 2 (CENTER) (INCL. 6, 10)

108 160 ₽
17

3084586 BEARING, BALL

BEARING, BALL

8 110 ₽
18

3085202 CRANKSHAFT 3 (PTO)

CRANKSHAFT 3 (PTO)

64 480 ₽
19

3085204 BALL, BEARING

BALL, BEARING

16 640 ₽
20

3085203 SPACER

SPACER

1 310 ₽
21

3085205 BALL, BEARING

BALL, BEARING

13 520 ₽
