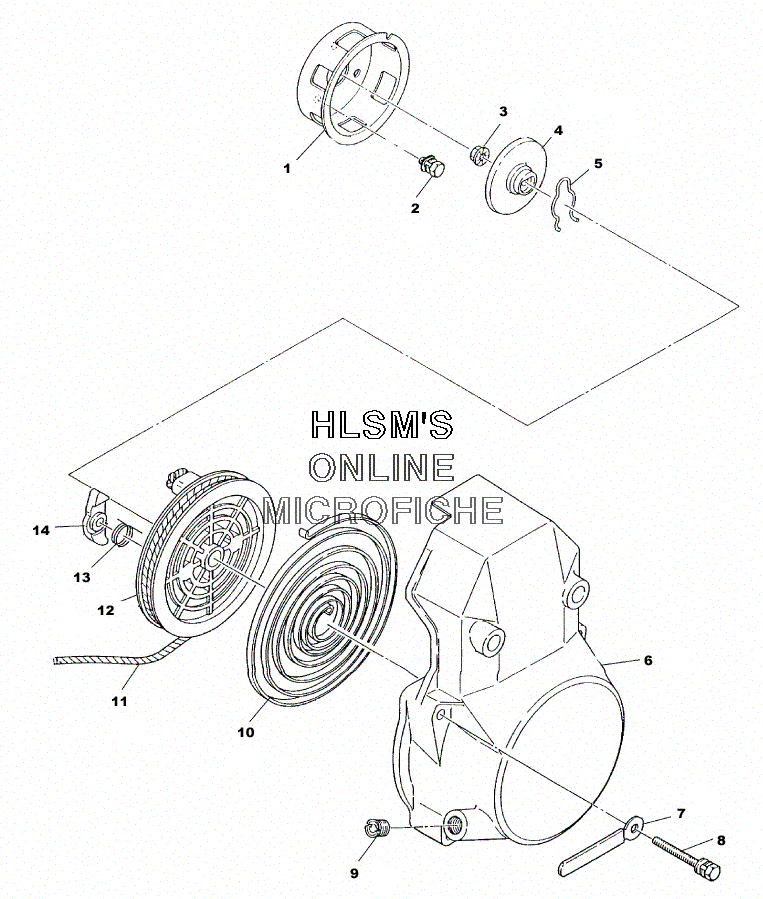

STARTER - RECOIL ASSEMBLY для Polaris CLASSIC TOURING (S00ST4BS) - 2000 года выпуска
-
№АртикулНазвание
-
13083312 PULLEY, STARTINGPULLEY, STARTING
-
23084224 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
33083381 NUT, FLANGENUT, FLANGE
-
43083464 PLATE, FRICTIONPLATE, FRICTION
-
53083379 SPRING, FRICTIONSPRING, FRICTION
-
63083461 STARTER, RECOIL ASSY. (INCL. 3 6, 9 14)STARTER, RECOIL ASSY. (INCL. 3 6, 9 14)
-
63083462 CASE, STARTERCASE, STARTER
-
73083384 CLAMPCLAMP
-
83083382 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
93083107 GUIDE ROPEGUIDE ROPE
-
103083376 SPRING, SPIRALSPRING, SPIRAL
-
112870621 ROPE, NYLON STARTER (100FT)ROPE, NYLON STARTER (100FT)
-
123083377 REEL, REWINDREEL, REWIND
-
133083463 SPRING, RETURNSPRING, RETURN
-
143083378 RATCHETRATCHET
