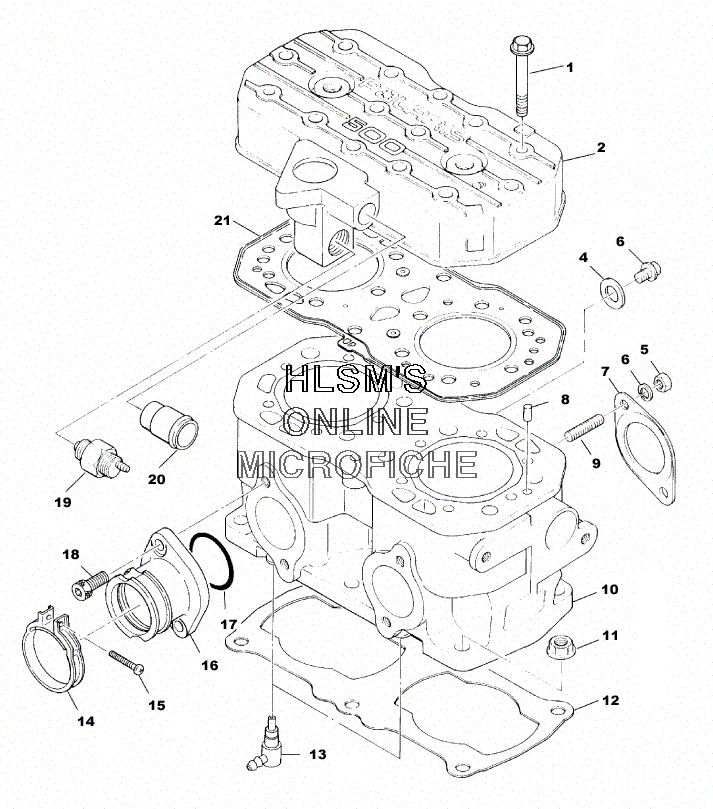

CYLINDER ASSEMBLY для Polaris CLASSIC TOURING (S00ST4BS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3085582 BOLT, FLANGE
    BOLT, FLANGE
  • 2
    3085584 HEAD, CYLINDER (INCL. 20)
    HEAD, CYLINDER (INCL. 20)
  • 3
    3084491 PLUG
    PLUG
  • 4
    3084492 GASKET
    GASKET
  • 5
    3080285 NUT
    NUT
  • 6
    3080530 WASHER, LOCK SPRING
    WASHER, LOCK SPRING
  • 7
    3084439 GASKET, EXHAUST
    GASKET, EXHAUST
  • 8
    3080103 PIN, DOWEL
    PIN, DOWEL
  • 9
    3085326 STUD
    STUD
  • 10
    3085583 CYLINDER (INCL. 9)
    CYLINDER (INCL. 9)
  • 11
    3082911 NUT FLANGE
    NUT FLANGE
  • 12
    3084768 GASKET, BASE
    GASKET, BASE
  • 13
    3086785 VALVE, CHECK
    VALVE, CHECK
  • 14
    3083166 BAND ASSY. (INCL. 15)
    BAND ASSY. (INCL. 15)
  • 15
    3081497 SCREW
    SCREW
  • 16
    3085044 ADAPTER, CARBURETOR (INCL. 17)
    ADAPTER, CARBURETOR (INCL. 17)
  • 17
    3085619 O-RING
    O-RING
  • 18
    3081330 BOLT, ALLEN
    BOLT, ALLEN
  • 19
    3084284 SWITCH, THERMAL (105 DEGREE C)
    SWITCH, THERMAL (105 DEGREE C)
  • 20
    3083452 PIPE, WATER
    PIPE, WATER
  • 21
    3085585 GASKET 2, HEAD
    GASKET 2, HEAD
