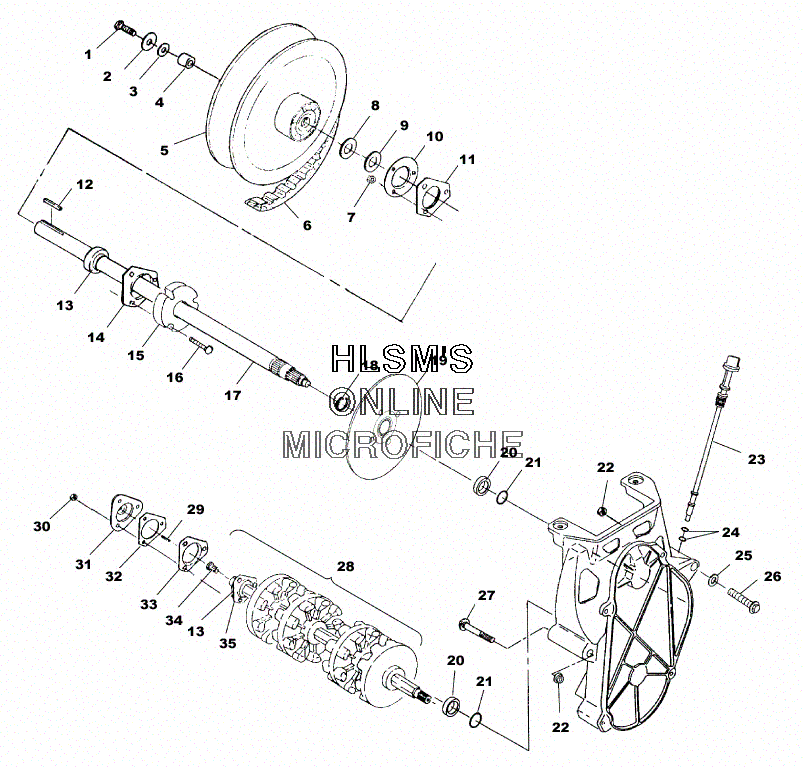

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 800 XCR (S00SB8AS) - 2000 года выпуска`
-
№АртикулНазвание
-
17517581 SCREWSCREW
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45132286 SPACERSPACER
-
63211075 BELT, DRIVEBELT, DRIVE
-
77542344 NUT, NYLOCNUT, NYLOC
-
87555864 BUSHINGBUSHING
-
97556509 WASHER SPECIALWASHER SPECIAL
-
105241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
115811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
127721116 KEYKEY
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
155131443 SPACER, BEARING, JACKSHAFTSPACER, BEARING, JACKSHAFT
-
167515383 BOLT, CARRIAGEBOLT, CARRIAGE
-
171332228 JACKSHAFT, MED W/BEARING (15 TEETH) (INCL. 13, 18)JACKSHAFT, MED W/BEARING (15 TEETH) (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC, SNOW, ASSY.BRAKE DISC, SNOW, ASSY.
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O-RINGO-RING
-
227542423 NUTNUT
-
235431419 DIPSTICK, ASSY.DIPSTICK, ASSY.
-
245410675 O-RINGO-RING
-
257558403 WASHER WROUGHTWASHER WROUGHT
-
267517709 SCREWSCREW
-
277515428 BOLTBOLT
-
281590282 DRIVESHAFT ASSY., 4 DR, W/BEARING(INCL. 34, 35)DRIVESHAFT ASSY., 4 DR, W/BEARING(INCL. 34, 35)
-
293280017 SQUARE KEY SPEEDOMETERSQUARE KEY SPEEDOMETER
-
307542324 NUTNUT
-
313280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
-
325830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
335241178 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
343280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
351012945 FLANGETTE, W/SCREWS, ASSY.FLANGETTE, W/SCREWS, ASSY.
