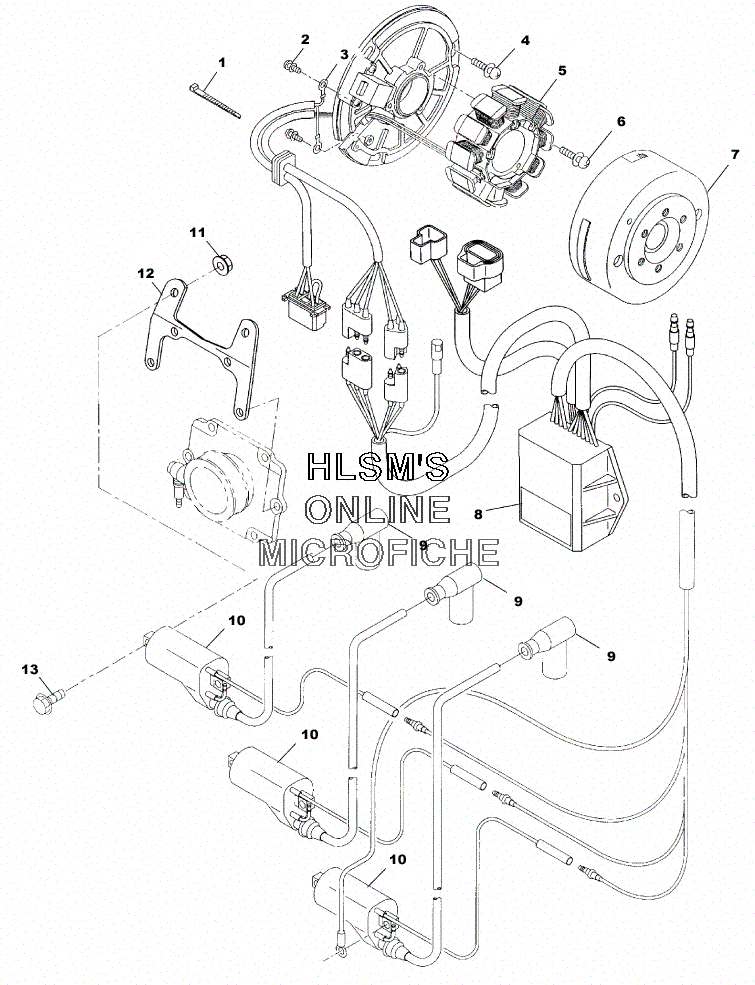

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 800 XCR (S00SB8AS) - 2000 года выпуска`
-
№АртикулНазвание
-
13084512 BAND, WIREBAND, WIRE
-
23081256 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
33084976 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
43083866 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
53086147 STATOR, PLATE, ASSY. (INCL. 1-3, 5, 6)STATOR, PLATE, ASSY. (INCL. 1-3, 5, 6)
-
63085604 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
73085607 FLY WHEEL ASSY.FLY WHEEL ASSY.
-
83086828 CDI, SYSTEMCDI, SYSTEM
-
94020159 CAP, SPARK PLUGCAP, SPARK PLUG
-
103085293 COIL, IGNITIONCOIL, IGNITION
-
113083856 NUT, FLANGENUT, FLANGE
-
123085797 PLATE, IGNITION COILPLATE, IGNITION COIL
-
133084126 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- • ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - GAS- REAR TRACK
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- TUNNEL ASSEMBLY
- WATER PUMP
