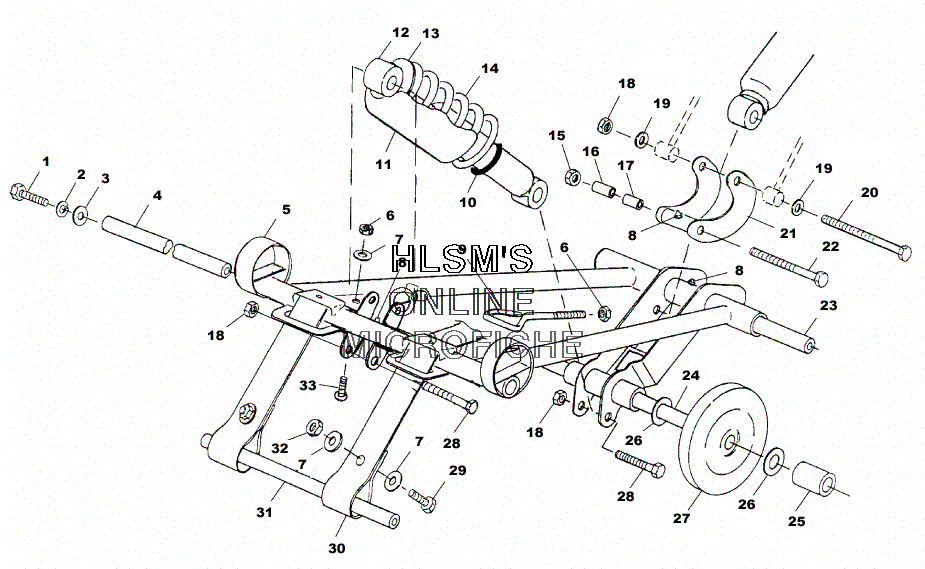

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 800 XCR (S00SB8AS) - 2000 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45131450 SHAFTSHAFT
-
51541203-067 TORQUE, ARM (FRONT) (X10) (BLACK)TORQUE, ARM (FRONT) (X10) (BLACK)
-
67542324 NUTNUT
-
77555716 WASHERWASHER
-
87080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
97010050 BOLT, EYEBOLT, EYE
-
107710424 RING, RETAININGRING, RETAINING
-
115430671 SHIELD, SPRINGSHIELD, SPRING
-
135630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
147041253-067 SPRING, COMP. (BLACK)SPRING, COMP. (BLACK)
-
157542403 NUT LOCKNUT LOCK
-
165333028 SPACERSPACER
-
175020561 BUSHING, PIVOT TUBEBUSHING, PIVOT TUBE
-
187542411 NUT LOCKNUT LOCK
-
197555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
207515472 BOLTBOLT
-
211540942-067 ARM, SHOCKARM, SHOCK
-
227515438 BOLTBOLT
-
255332784 SPACER (OUTER)SPACER (OUTER)
-
267556301 MACHINERY BUSHINGMACHINERY BUSHING
-
271543018 WHEEL, IDLERWHEEL, IDLER
-
287515433 BOLTBOLT
-
297517313 SCREWSCREW
-
305411498 STRAP, LIM (FRONT) (X10)STRAP, LIM (FRONT) (X10)
-
327542344 NUT, NYLOCNUT, NYLOC
-
337512377 BOLTBOLT
