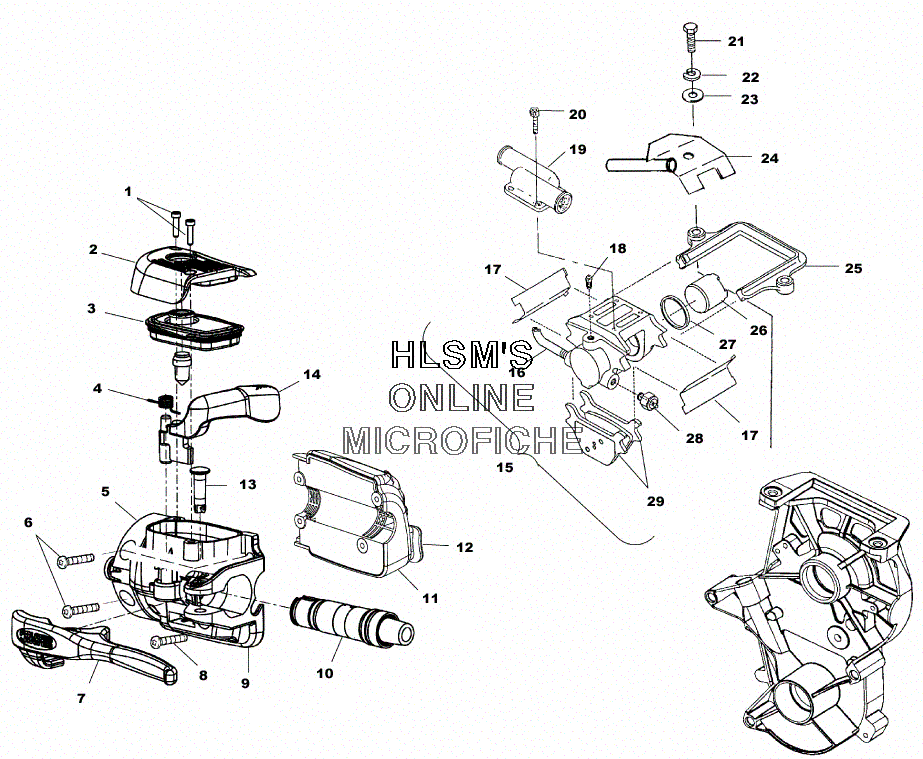

BRAKE ASSEMBLY для Polaris 800 XCR (S00SB8AS) - 2000 года выпуска`
-
№АртикулНазвание
-
12201254 COVER SCREW, KIT (HAYES)COVER SCREW, KIT (HAYES)
-
22201255 COVER ASSY., KIT (HAYES) (INCL. 1, 3)COVER ASSY., KIT (HAYES) (INCL. 1, 3)
-
42201250 PARKLEVER SPRING, KITPARKLEVER SPRING, KIT
-
52050087 MASTER CYLINDER ASSY. KIT (HAYES) (INCL. 2, 4, 7, 9, 10, 13)MASTER CYLINDER ASSY. KIT (HAYES) (INCL. 2, 4, 7, 9, 10, 13)
-
67517441 SCREWSCREW
-
72201569 LEVER, 3 NOTCH/PIN.RING KITLEVER, 3 NOTCH/PIN.RING KIT
-
87517566 SCREWSCREW
-
92201249 MASTER CYINDER ASSY. KIT (HAYES)MASTER CYINDER ASSY. KIT (HAYES)
-
94010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
102201248 CARTRIDGE SUB-ASSY. KIT (5/8'')CARTRIDGE SUB-ASSY. KIT (5/8'')
-
112010167 CONTROL ASSY. (LEFT) (BASIC)CONTROL ASSY. (LEFT) (BASIC)
-
125433291 BUTTON SWITCH HI/LOBUTTON SWITCH HI/LO
-
132201252 PIVOT, PIN ALUMINUM W/SNAP RING KITPIVOT, PIN ALUMINUM W/SNAP RING KIT
-
142201251 PARKLEVER AND SPRING, KIT (INCL. 4)PARKLEVER AND SPRING, KIT (INCL. 4)
-
151910348 BRAKE CALIPER, HD, LIQ, NOSW (INCL. 26, 27, 29)BRAKE CALIPER, HD, LIQ, NOSW (INCL. 26, 27, 29)
-
161930749 LINE, BRAKELINE, BRAKE
-
172200467 CLIP SPRING, KIT (QTY. 2)CLIP SPRING, KIT (QTY. 2)
-
181930735 INLET, KITINLET, KIT
-
191930728 COOLER, WATER, BRAKECOOLER, WATER, BRAKE
-
192201024 GASKET, BRAKE COOLERGASKET, BRAKE COOLER
-
201930729 SCREW SET (PKG. OF 4)SCREW SET (PKG. OF 4)
-
217515521 BOLTBOLT
-
227552603 WASHERWASHER
-
237555806 WASHERWASHER
-
241012849 ROPE GUIDE, CC-ZROPE GUIDE, CC-Z
-
251930733 CALIPER BRACKET, KITCALIPER BRACKET, KIT
-
261930734 PISTON SEAL, KIT (INCL. 27)PISTON SEAL, KIT (INCL. 27)
-
272200466 SEALSEAL
-
284010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
292201429 BRAKE, PAD KIT TYPE 81 (SMALL) (INCL. 17)BRAKE, PAD KIT TYPE 81 (SMALL) (INCL. 17)
-
292201430 BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 17)BRAKE, PAD KIT TYPE 81 (LARGE) (INCL. 17)
