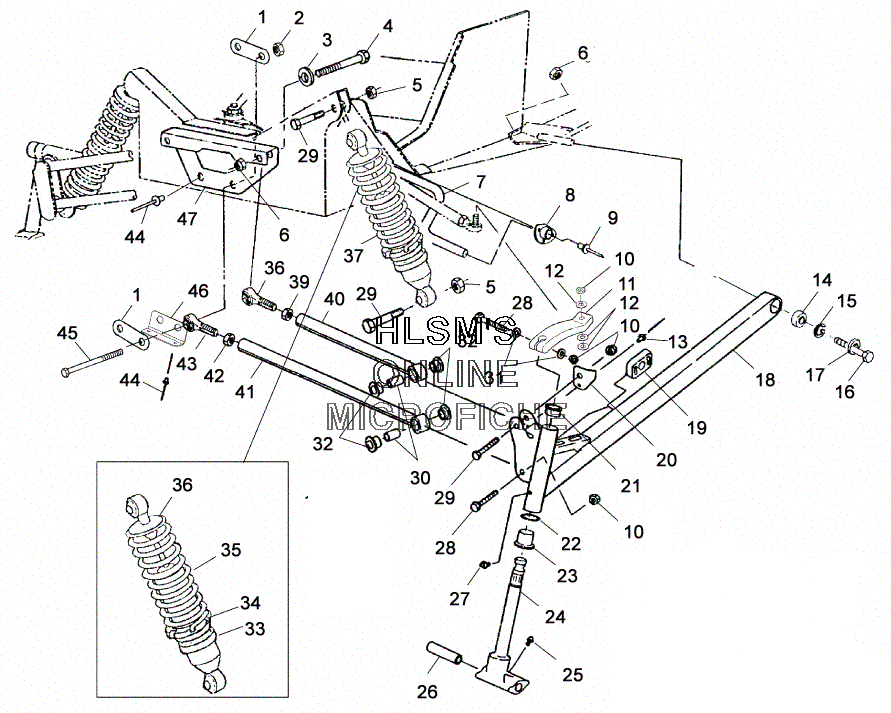

SUSPENSION - FRONT для Polaris 600 XC DELUXE (S00SD6DS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    5211345 STRAP, SPACER (BOTTOM)
    STRAP, SPACER (BOTTOM)
  • 2
    7542703 NUT FLEX
    NUT FLEX
  • 3
    7558702 WASHER THRUST
    WASHER THRUST
  • 4
    7512551 BOLT
    BOLT
  • 5
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 6
    7542503 NUT, LOCK
    NUT, LOCK
  • 7
    5243008-067 BAR, TORSION (5/8) (BLK)
    BAR, TORSION (5/8) (BLK)
  • 8
    5432038 BUSHING, SWAY BAR
    BUSHING, SWAY BAR
  • 9
    7621477 RIVET
    RIVET
  • 10
    7542403 NUT LOCK
    NUT LOCK
  • 11
    5131739 ARM, STEERING ALUMINUM (LEFT)
    ARM, STEERING ALUMINUM (LEFT)
  • 11
    5131740 ARM, STEERING ALUMINUM (RIGHT)
    ARM, STEERING ALUMINUM (RIGHT)
  • 12
    7555797 WASHER
    WASHER
  • 13
    7661643 RIVET (-3/16-.214-.420)
    RIVET (-3/16-.214-.420)
  • 14
    7061042 BEARING, SPHERICAL, 7/16, PLASTIC
    BEARING, SPHERICAL, 7/16, PLASTIC
  • 15
    7710437 RING, RETAINING
    RING, RETAINING
  • 16
    7512579 BOLT
    BOLT
  • 17
    7555801 WASHER
    WASHER
  • 18
    2872478-293 ARM, TRAILING (LEFT) (INDY RED) (INCL. 14, 15)
    ARM, TRAILING (LEFT) (INDY RED) (INCL. 14, 15)
  • 18
    2872477-293 ARM, TRAILING (RIGHT) (INDY RED) (INCL. 14, 15)
    ARM, TRAILING (RIGHT) (INDY RED) (INCL. 14, 15)
  • 19
    5432561 SLIDE, SWAYBAR (5/8)
    SLIDE, SWAYBAR (5/8)
  • 20
    5242017-067 STOP, STEERING (LEFT)
    STOP, STEERING (LEFT)
  • 20
    5242018-067 STOP, STEERING (RIGHT)
    STOP, STEERING (RIGHT)
  • 21
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 22
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 23
    3574208 BUSHING, SPINDLE HOUSING
    BUSHING, SPINDLE HOUSING
  • 24
    6230099-067 SPINDLE, SHAFT, HARD.
    SPINDLE, SHAFT, HARD.
  • 25
    7080306 FITTING, LUBE.W/BALL CHECK
    FITTING, LUBE.W/BALL CHECK
  • 26
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 27
    7080433 ZERK, FITTING, THREADED
    ZERK, FITTING, THREADED
  • 28
    7517583 SCREW
    SCREW
  • 29
    7515415 BOLT
    BOLT
  • 30
    5010127 BUSHING, RADIUS ROD
    BUSHING, RADIUS ROD
  • 31
    7555832 WASHER
    WASHER
  • 32
    5431486 BUSH, RADIUS ROD PIVOT (OUTER)
    BUSH, RADIUS ROD PIVOT (OUTER)
  • 33
    1500063 RETAINER, SPRING, BODY, THREADED
    RETAINER, SPRING, BODY, THREADED
  • 34
    5431734 RING, SPRING PRELOAD ADJUST
    RING, SPRING PRELOAD ADJUST
  • 35
    7041551-067 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 36
    5630580 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 37
    7041503 SHOCK, GAS, SELECT (IFS)
    SHOCK, GAS, SELECT (IFS)
  • 38
    7061010 ROD, END (7/16 LINED)
    ROD, END (7/16 LINED)
  • 39
    7542520 NUT JAM
    NUT JAM
  • 40
    1822588-293 RADIUS ROD (UPPER) (RED)
    RADIUS ROD (UPPER) (RED)
  • 41
    1822559-293 RADIUS ROD (LOWER) (RED)
    RADIUS ROD (LOWER) (RED)
  • 42
    7542711 NUT, JAM
    NUT, JAM
  • 43
    7061027 ROD END RADIUS (RIGHT) (LOWER)
    ROD END RADIUS (RIGHT) (LOWER)
  • 44
    7661638 RIVET, INTERLOCK B
    RIVET, INTERLOCK B
  • 45
    7512684 BOLT
    BOLT
  • 46
    5242578 BRACKET RADIUS ROD (BOTTOM)
    BRACKET RADIUS ROD (BOTTOM)
  • 47
    1012575-067 BRACE, BULKHEAD (BLK) (FRONT)
    BRACE, BULKHEAD (BLK) (FRONT)
