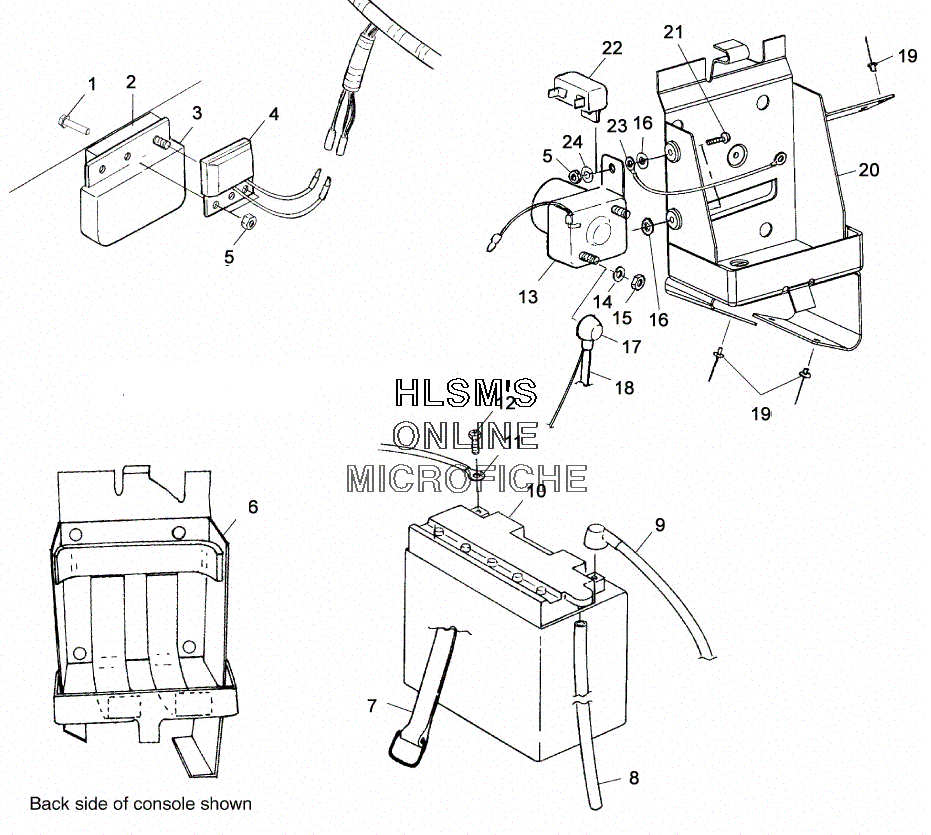

BATTERY BOX для Polaris 600 XC DELUXE (S00SD6DS) - 2000 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
25211573 SPACER, REGULATORSPACER, REGULATOR
-
34060123 REGULATOR (14.3VAC)REGULATOR (14.3VAC)
-
44010196 REGULATOR, RECTIFIERREGULATOR, RECTIFIER
-
57541925 NUTNUT
-
65810290 PAD, BATTERYPAD, BATTERY
-
72450020 STRAP ASSY, BATTERY HOLD.STRAP ASSY, BATTERY HOLD.
-
85432077 TUBE, BATTERY VENTTUBE, BATTERY VENT
-
92460393 CABLE ASSY, SOLENOIDCABLE ASSY, SOLENOID
-
104140006 BATTERYBATTERY
-
114010114 CABLE, BATTERY (BLK) (11'')CABLE, BATTERY (BLK) (11'')
-
122200361 BOLT, BATT, KIT (SHORT)BOLT, BATT, KIT (SHORT)
-
167571602 WASHERWASHER
-
175410346 INSUL.CABLE SOLENOIDINSUL.CABLE SOLENOID
-
184010190 CABLE (RED) (25'')CABLE (RED) (25'')
-
197621418 POP RIVETPOP RIVET
-
201012799-067 BATTERY BOX, (BLK)BATTERY BOX, (BLK)
-
217512027 SCREWSCREW
-
222434008 CIRCUIT BREAKERCIRCUIT BREAKER
-
234010108 WIRE, JUMPER, SOLENOID/BATTERY (8.5'')WIRE, JUMPER, SOLENOID/BATTERY (8.5'')
-
247558201 WASHER, FLATWASHER, FLAT
