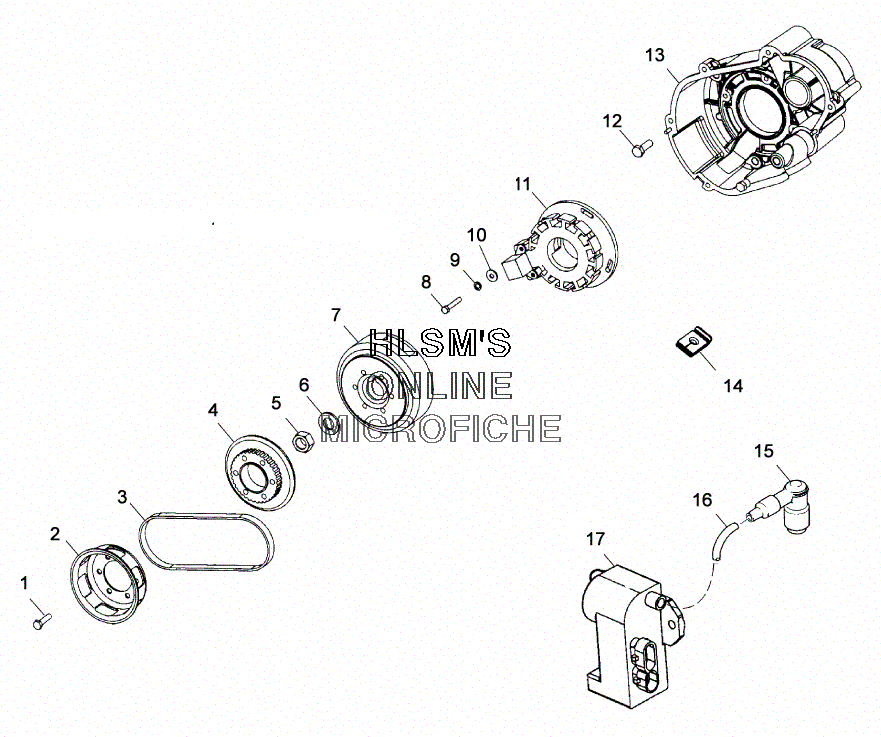

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 600 XC DELUXE (S00SD6DS) - 2000 года выпуска`
-
№АртикулНазвание
-
17516823 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
35411098 BELT, WATER PUMP KITBELT, WATER PUMP KIT
-
45630824 PULLEY, WATER PUMP DRIVEPULLEY, WATER PUMP DRIVE
-
57546909 NUTNUT
-
67555907 WASHERWASHER
-
74010139 FLYWHEEL ASSY (DUCATI)FLYWHEEL ASSY (DUCATI)
-
87517246 SCREWSCREW
-
97555969 WASHER, LOCKWASHER, LOCK
-
107555970 WASHER, FLATWASHER, FLAT
-
114060213 STATOR ASSY.STATOR ASSY.
-
127516734 SCREWSCREW
-
131201812 HOUSING, IGNITION ASSYHOUSING, IGNITION ASSY
-
145411178 GROMMET, STATOR WIRESGROMMET, STATOR WIRES
-
154020155 CAP, SPARKPLUGCAP, SPARKPLUG
-
164010124 WIRE IGNITION BULK (305CM)WIRE IGNITION BULK (305CM)
-
172201549 CDI, S60, 70, 00A1/A2, KIT (INCL. 17, NYOGEL AND DECAL)CDI, S60, 70, 00A1/A2, KIT (INCL. 17, NYOGEL AND DECAL)
-
177077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
