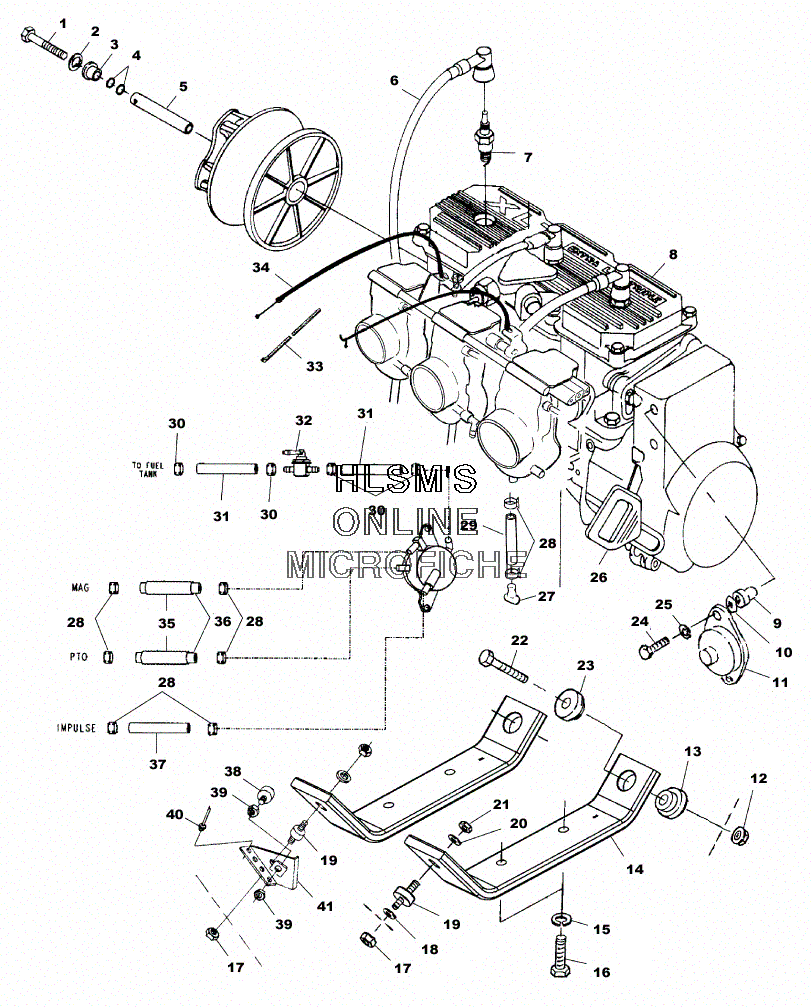

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 TRIUMPH (S00SB6AS) - 2000 года выпуска`
-
№АртикулНазвание
-
17512565 BOLTBOLT
-
27575202 WASHER LOCKWASHER LOCK
-
35010287 WASHER, CLUTCH RETAIN.WASHER, CLUTCH RETAIN.
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
64010051 CONDUIT, CONVOL (30CM)CONDUIT, CONVOL (30CM)
-
73070165 SPARKPLUG RN2CSPARKPLUG RN2C
-
83085649 (EC58PL161) (SEE FOOTNOTE)(EC58PL161) (SEE FOOTNOTE)
-
97541923 NUT-WELLNUT-WELL
-
107555843 WASHER, WROUGHTWASHER, WROUGHT
-
127542522 NUT, FLANGENUT, FLANGE
-
135411686 MOUNT, ENGINE RUBBER (BOTTOM)MOUNT, ENGINE RUBBER (BOTTOM)
-
145242507 PLATE, ENGINE (LEFT)PLATE, ENGINE (LEFT)
-
145242508 PLATE, ENGINE (RIGHT)PLATE, ENGINE (RIGHT)
-
157553101 WASHER LOCKWASHER LOCK
-
167512575 BOLTBOLT
-
177547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
187555915 WASHER, FLATWASHER, FLAT
-
193110061 MOUNT, ENGINEMOUNT, ENGINE
-
207555893 WASHERWASHER
-
217542451 NUT, NYLOCNUT, NYLOC
-
227512530 SCREWSCREW
-
235411685 MOUNT, ENGINE RUBBER (TOP)MOUNT, ENGINE RUBBER (TOP)
-
247512222 SCREWSCREW
-
257552604 WASHERWASHER
-
265431499 HANDLE, RECOIL (BLK)HANDLE, RECOIL (BLK)
-
275431893 PLUG, TRAPPLUG, TRAP
-
287080003 CLAMP, HOSECLAMP, HOSE
-
295411708 HOSE, WATERTRAP (5/16)HOSE, WATERTRAP (5/16)
-
307080307 CLAMPCLAMP
-
318350018-600 TUBING, ETHER ERETHNE (160 CM)TUBING, ETHER ERETHNE (160 CM)
-
327052060 VALVE, FUEL SHUT-OFFVALVE, FUEL SHUT-OFF
-
337080138 STRAP PANDUITSTRAP PANDUIT
-
347080770 CABLE, THROT, SINGLE, RACK CARB.CABLE, THROT, SINGLE, RACK CARB.
-
358360049-153 CONDUIT, CONVOL.(153CM)CONDUIT, CONVOL.(153CM)
-
368350017-600 FUEL LIN, ETHER (5/16'') (RED)FUEL LIN, ETHER (5/16'') (RED)
-
378450040-600 FUEL LINE (1/4 ID) (600 CM.)FUEL LINE (1/4 ID) (600 CM.)
-
383110056 STOP, TORQUE, COARSESTOP, TORQUE, COARSE
-
397542414 NUT, HEXAGONNUT, HEXAGON
-
407661638 RIVET, INTERLOCK, BRIVET, INTERLOCK, B
-
411011503-067 LIMITERLIMITER
