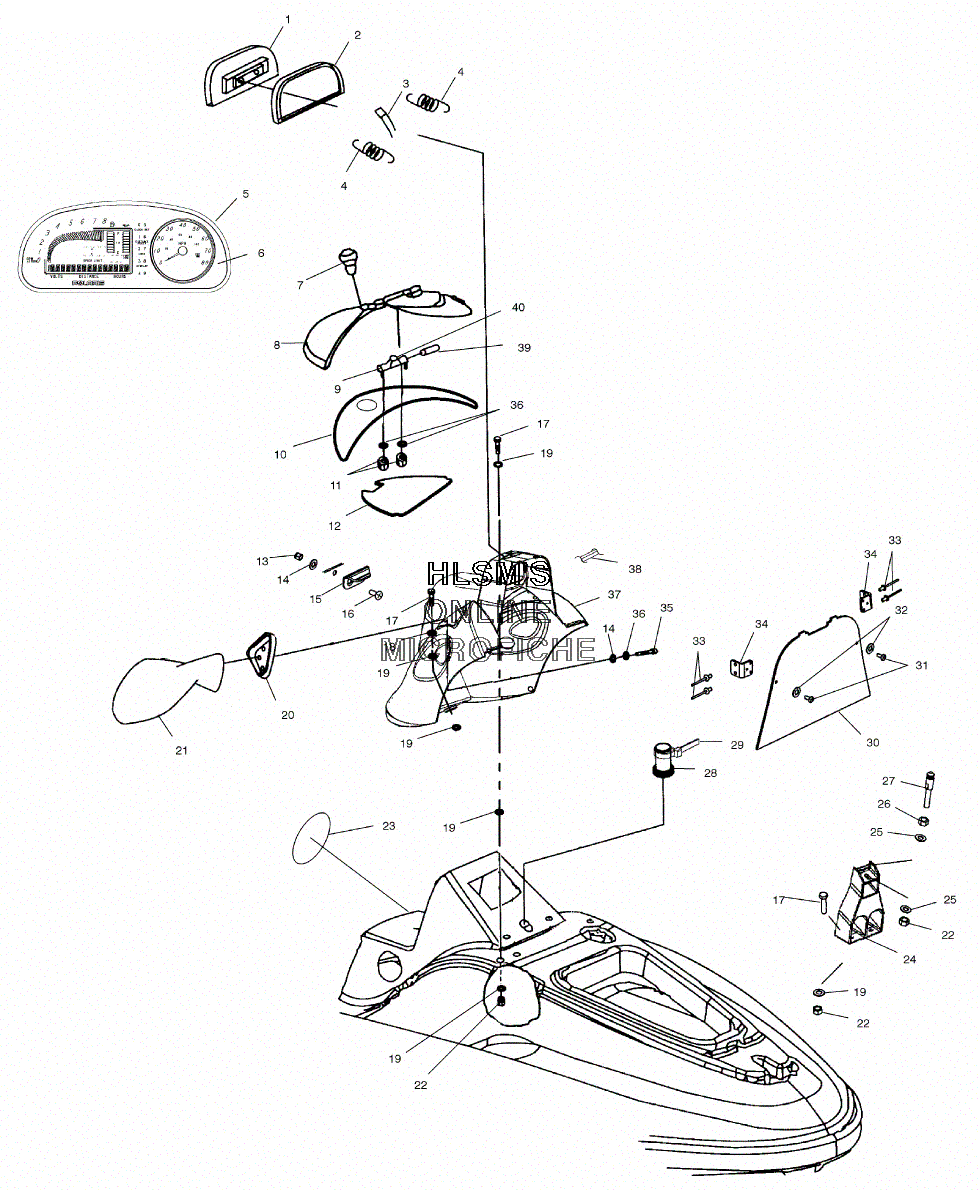

HANDLEBAR ASSY. W/ HANDLEPOLE для Polaris Octane - 2003 года выпуска
-
№АртикулНазвание
-
17516817 SCREWSCREW
-
27555882 WASHERWASHER
-
37060170 ROD ENDROD END
-
47542150 NUTNUT
-
57081077 CABLE, STEERINGCABLE, STEERING
-
67546704 NUT, NYLOKNUT, NYLOK
-
75133577-070 HANDLEPOLE (BLACK)HANDLEPOLE (BLACK)
-
85133609 BUSHING, HANDLEPOLEBUSHING, HANDLEPOLE
-
97042173 SPRING, HANDLEPOLESPRING, HANDLEPOLE
-
107518059 BOLTBOLT
-
117555953 WASHERWASHER
-
127518108 BOLTBOLT
-
137556055 WASHER, LOCKWASHER, LOCK
-
145133576 BRACKET, HANDLEPOLEBRACKET, HANDLEPOLE
-
157547225 NUT, HANDLEPOLENUT, HANDLEPOLE
-
161860114 NUTNUT
-
175133569 NOZZLE-STEERINGNOZZLE-STEERING
-
187516807 BOLTBOLT
-
197552613 WASHER, LOCKWASHER, LOCK
-
207517974 SCREWSCREW
-
215246434 BRACKET, STEERING CABLEBRACKET, STEERING CABLE
