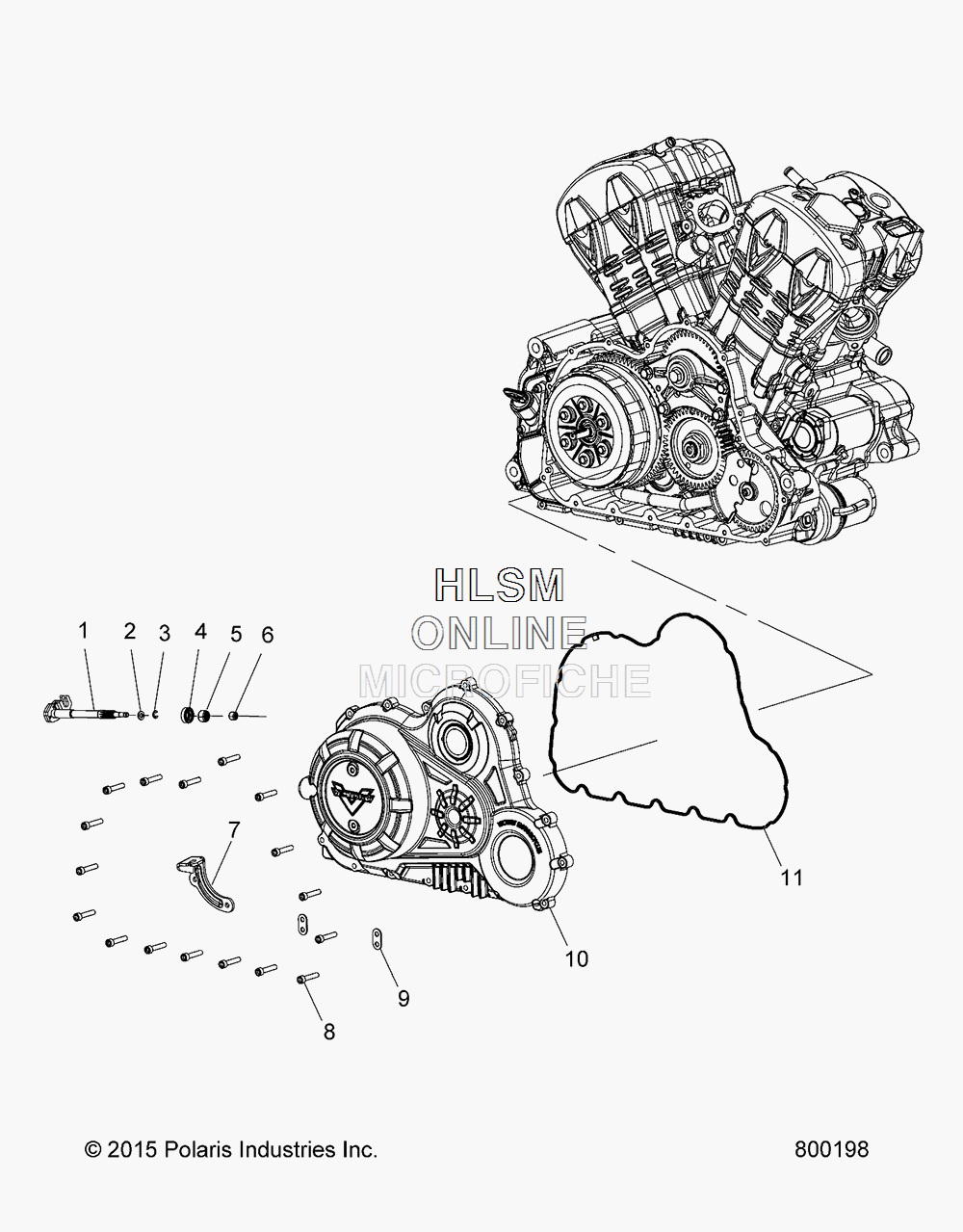

PRIMARY DRIVE ASM. W/CLUTCH для Polaris Octane Gloss Black [V17FTB00AA] - 2017 года выпуска`
-
№АртикулНазвание
-
16230774 SHAFT, CLUTCH, PINIONSHAFT, CLUTCH, PINION
-
27555872 WASHERWASHER
-
37710638 RING, RETAININGRING, RETAINING
-
43610154 SEAL, SHAFTSEAL, SHAFT
-
53552105 BEARING, NEEDLEBEARING, NEEDLE
-
63512106 BEARING, NEEDLEBEARING, NEEDLE
-
75259878 BRACKET, CABLE, CLUTCHBRACKET, CABLE, CLUTCH
-
87517301 SCREWSCREW
-
95258982 BRACKET, CABLE MOUNTBRACKET, CABLE MOUNT
-
105140190-657 COVER, PRIMARY DRIVE (BLACK) (COVER ONLY)COVER, PRIMARY DRIVE (BLACK) (COVER ONLY)
-
115414563 GASKET, PRIMARY DRIVEGASKET, PRIMARY DRIVE
