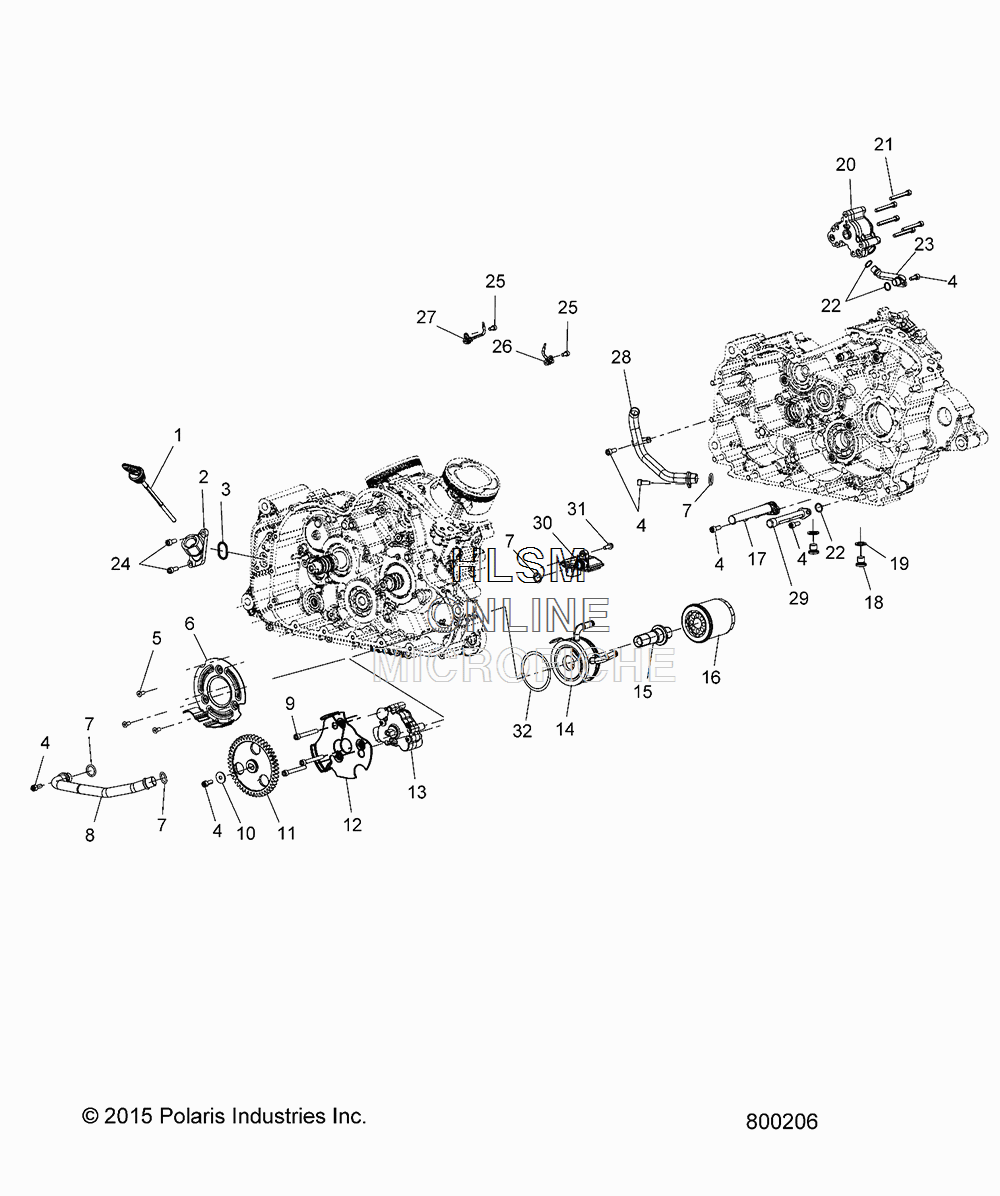

OIL SYSTEM для Polaris Octane Gloss Black [V17FTB00AA] - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    5259394 PLATE, OIL DEFLECTOR
    PLATE, OIL DEFLECTOR
  • 1
    5452512 DIPSTICK, VICTORY
    DIPSTICK, VICTORY
  • 2
    5139173-657 ADAPTER, DIPSTICK, CB (BLACK)
    ADAPTER, DIPSTICK, CB (BLACK)
  • 3
    5415005 SEAL, DIPSTICK ADAPTER
    SEAL, DIPSTICK ADAPTER
  • 4
    7517775 SCREW
    SCREW
  • 5
    7518817 SCREW
    SCREW
  • 6
    5258759 SHIELD, GEAR, CLUTCH
    SHIELD, GEAR, CLUTCH
  • 7
    5413837 O-RING
    O-RING
  • 8
    2521510 TUBE, PRESSURE, OIL INLET
    TUBE, PRESSURE, OIL INLET
  • 9
    7518348 SCREW
    SCREW
  • 10
    7556054 WASHER
    WASHER
  • 11
    5451819 GEAR, OIL PUMP
    GEAR, OIL PUMP
  • 12
    5258842 SHIELD, GEAR, OIL PUMP
    SHIELD, GEAR, OIL PUMP
  • 13
    1205311 ASM., OIL PUMP (INCL. 11)
    ASM., OIL PUMP (INCL. 11)
  • 14
    1205160 ASM., OIL COOLER
    ASM., OIL COOLER
  • 15
    5139240 SPIGOT, OIL COOLER
    SPIGOT, OIL COOLER
  • 16
    2520799 FILTER, OIL
    FILTER, OIL
  • 17
    2521285 SCREEN, OIL INLET, SCAVENGE
    SCREEN, OIL INLET, SCAVENGE
  • 18
    7052306 PLUG
    PLUG
  • 19
    5812232 WASHER
    WASHER
  • 20
    1205329 ASM., OIL PUMP, DUAL SCAVENGE
    ASM., OIL PUMP, DUAL SCAVENGE
  • 21
    7518348 SCREW
    SCREW
  • 22
    5414100 O-RING
    O-RING
  • 23
    2521479 TUBE, SCAVENGE, INLET
    TUBE, SCAVENGE, INLET
  • 24
    7517272 SCREW
    SCREW
  • 25
    7517847 SCREW
    SCREW
  • 26
    1205134 ASM., PISTON, COOLING JET, FRONT
    ASM., PISTON, COOLING JET, FRONT
  • 27
    1205135 ASM., PISTON, COOLING JET, REAR
    ASM., PISTON, COOLING JET, REAR
  • 28
    2521384 TUBE, SCAVENGE, OIL RETURN
    TUBE, SCAVENGE, OIL RETURN
  • 29
    2521480 PICKUP, SCAVENGE
    PICKUP, SCAVENGE
  • 30
    2521505 ASM., OIL PICKUP
    ASM., OIL PICKUP
  • 31
    7520179 SCREW
    SCREW
  • 32
    5415708 O-RING (SVC)
    O-RING (SVC)
