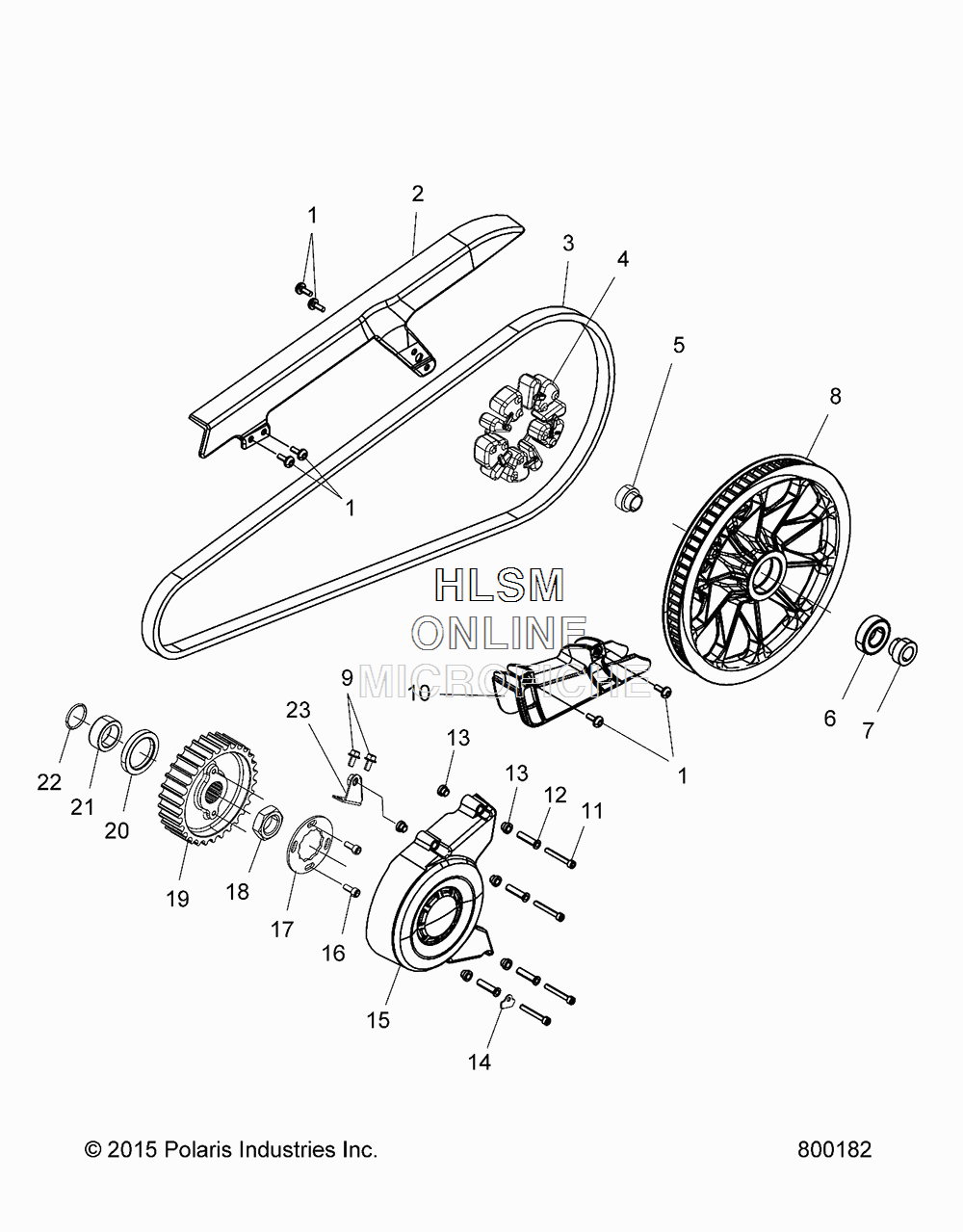

DRIVE SPROCKET AND BELT AND GUARDS для Polaris Octane Gloss Black [V17FTB00AA] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7519774 SCREW
    SCREW
  • 2
    5452370 GUARD, BELT, UPPER
    GUARD, BELT, UPPER
  • 3
    3211187 BELT
    BELT
  • 4
    5414738 PUCK, CUSHDR, LEFT
    PUCK, CUSHDR, LEFT
  • 5
    5339699 SPACER, BRNG., INNER (BUILT BEFORE 7/25/2016)
    SPACER, BRNG., INNER (BUILT BEFORE 7/25/2016)
  • 5
    5339956 SPACER, BRNG., INNER (BUILT 7/25/2016 AND AFTER)
    SPACER, BRNG., INNER (BUILT 7/25/2016 AND AFTER)
  • 6
    3514795 BEARING-RLR, CUSH DRIVE
    BEARING-RLR, CUSH DRIVE
  • 7
    5339698 SPACER, BEARING, SPROCKET, OUTER (BUILT BEFORE 7/25/2016)
    SPACER, BEARING, SPROCKET, OUTER (BUILT BEFORE 7/25/2016)
  • 7
    5339955 SPACER, BEARING, SPROCKET, OUTER (BUILT 7/25/2016 AND AFTER)
    SPACER, BEARING, SPROCKET, OUTER (BUILT 7/25/2016 AND AFTER)
  • 8
    1022446-521 ASM., SPROCKET W/BRNG., 71T (BLACK) (INCL. 6)
    ASM., SPROCKET W/BRNG., 71T (BLACK) (INCL. 6)
  • 9
    7517886 SCREW, HXFLG
    SCREW, HXFLG
  • 10
    5451789 GUARD, BELT, LOWER
    GUARD, BELT, LOWER
  • 11
    7520393 SCREW, SH
    SCREW, SH
  • 12
    7661185 SPACER
    SPACER
  • 13
    5412070 ISOLATOR
    ISOLATOR
  • 14
    5258710 RETAINER, WIRE, SPROCKET
    RETAINER, WIRE, SPROCKET
  • 15
    5452806 COVER, OUTER SPROCKET (BLACK)
    COVER, OUTER SPROCKET (BLACK)
  • 16
    7518803 SCREW
    SCREW
  • 17
    5260271 WASHER, LOCK
    WASHER, LOCK
  • 18
    7547683 NUT, HEX
    NUT, HEX
  • 19
    3235557 SPROCKET, DRIVE, 28T
    SPROCKET, DRIVE, 28T
  • 20
    3610213 SEAL
    SEAL
  • 21
    5139334 SPACER, DRIVE SPROCKET
    SPACER, DRIVE SPROCKET
  • 22
    5412530 O-RING
    O-RING
  • 23
    1019927 BRACKET, GUARD MOUNT
    BRACKET, GUARD MOUNT
