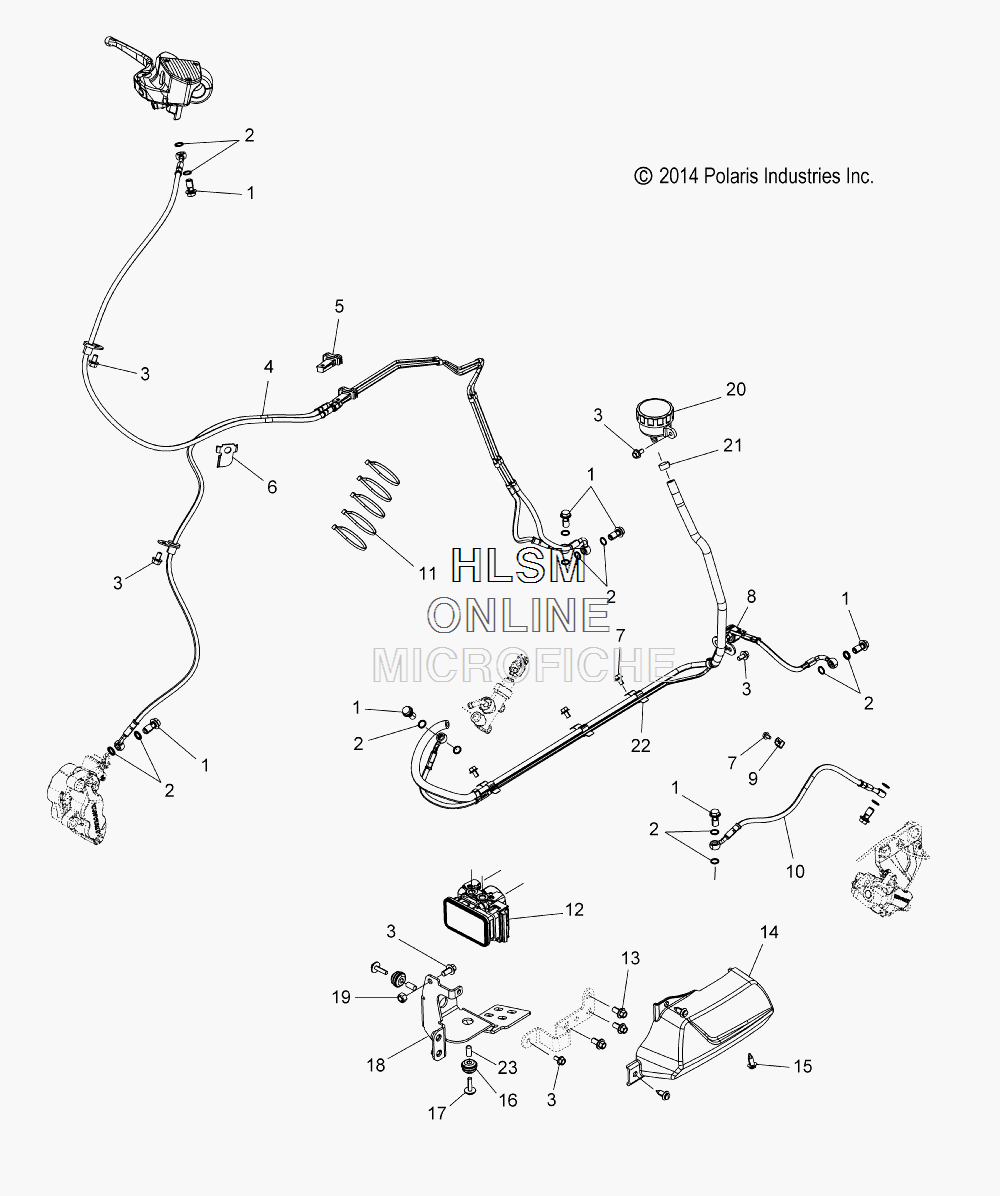

BRAKE LINES AND RESERVOIR для Polaris BOARDWALK, INTL [RW36EE] - 2015 года выпуска`
-
№АртикулНазвание
-
11910958 BOLT, BANJOBOLT, BANJO
-
27556372 WASHER, SEAL, COPPERWASHER, SEAL, COPPER
-
37517704 SCREWSCREW
-
41912406 HOSE, BRAKE, FRONT, STD., ABSHOSE, BRAKE, FRONT, STD., ABS
-
55415290 CLIP, RETENTIONCLIP, RETENTION
-
65260081 BRKT., RETAINER, BRAKE LINEBRKT., RETAINER, BRAKE LINE
-
77518393 SCREW, TFHFLSCREW, TFHFL
-
84012437 SWITCH, PRESSURESWITCH, PRESSURE
-
97081239 CLIP, BRAKE HOSECLIP, BRAKE HOSE
-
101912397 HOSE, BRAKE, RRCAL TO MODHOSE, BRAKE, RRCAL TO MOD
-
117080138 CABLE TIECABLE TIE
-
121912393 MODULE, ABSMODULE, ABS
-
137518043 SCREW, HXFLGSCREW, HXFLG
-
145451591 COVER, ABSCOVER, ABS
-
157661855 RIVET, TUFFLOKRIVET, TUFFLOK
-
165413711 GROMMET, ABS MOUNTGROMMET, ABS MOUNT
-
177519089 SCREW, HHSCREW, HH
-
181020662 BRKT., ABSBRKT., ABS
-
197547121 NUT, HXNUT, HX
-
201911066 RESERVOIR, REAR MCYL.RESERVOIR, REAR MCYL.
-
217080534 CLAMP, HOSECLAMP, HOSE
-
227081376 CLIP, BRAKE LINECLIP, BRAKE LINE
-
235136840 COLLAR, ABSCOLLAR, ABS
