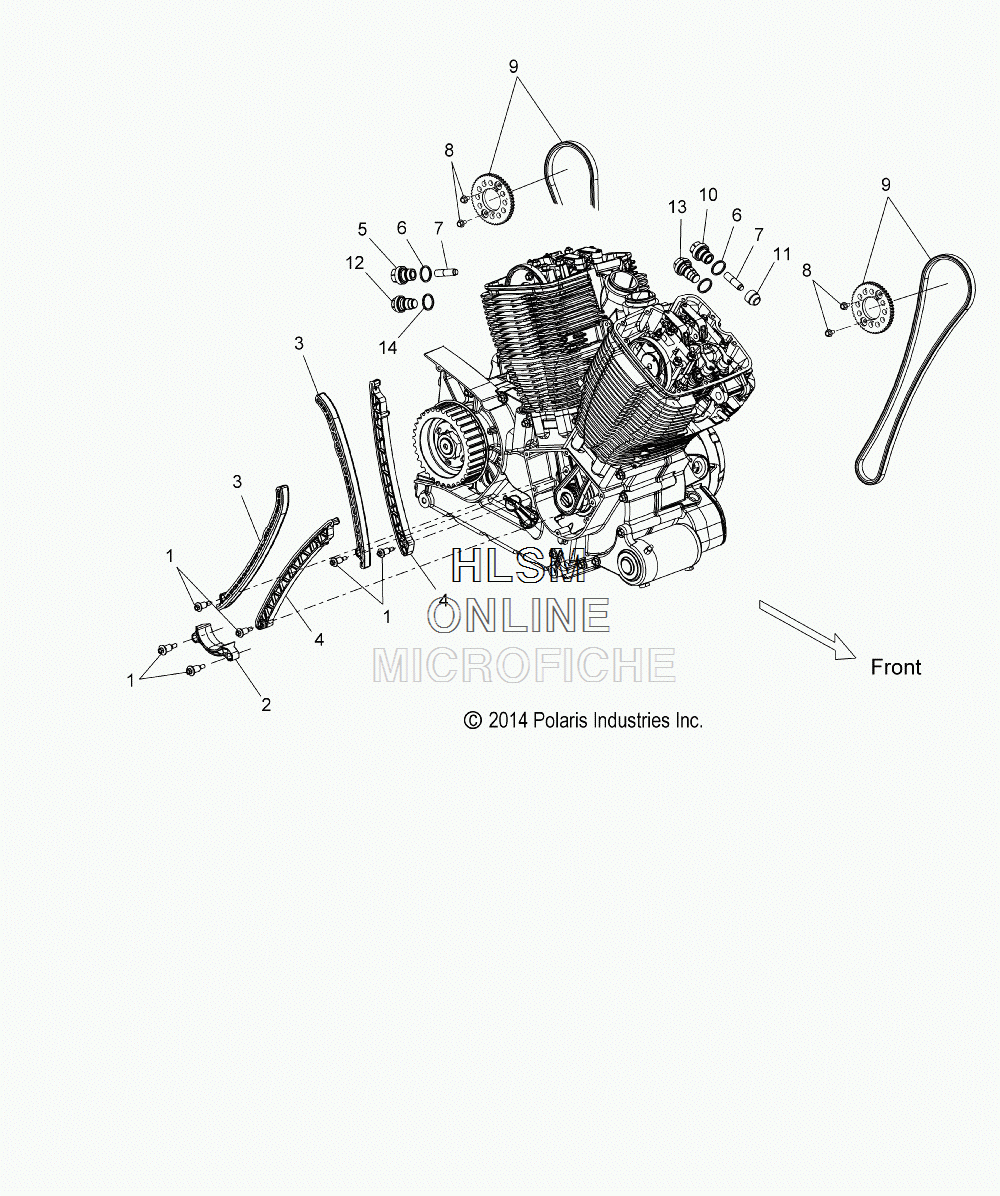

CAMCHAIN для Polaris BOARDWALK, INTL [RW36EE] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7518328 BOLT
    BOLT
  • 2
    3021614 GUARD, CAM DRIVE, LOWER (BUILT 11/03/2014 AND BEFORE)
    GUARD, CAM DRIVE, LOWER (BUILT 11/03/2014 AND BEFORE)
  • 2
    3022609 GUARD, CAM DRIVE, LOWER, LGB (BUILT 11/04/2014 AND AFTER)
    GUARD, CAM DRIVE, LOWER, LGB (BUILT 11/04/2014 AND AFTER)
  • 3
    3022583 ASM., BLADE CAM DRIVE (BUILT 11/03/2014 AND BEFORE)
    ASM., BLADE CAM DRIVE (BUILT 11/03/2014 AND BEFORE)
  • 3
    3022607 ASM., BLADE CAM DRIVE, LGB (BUILT 11/04/2014 AND AFTER)
    ASM., BLADE CAM DRIVE, LGB (BUILT 11/04/2014 AND AFTER)
  • 4
    3021518 ASM., GUIDE, CAM DRIVE (BUILT 11/03/2014 AND BEFORE)
    ASM., GUIDE, CAM DRIVE (BUILT 11/03/2014 AND BEFORE)
  • 4
    3022608 ASM., GUIDE, CAM DRIVE, LGB (BUILT 11/04/2014 AND AFTER)
    ASM., GUIDE, CAM DRIVE, LGB (BUILT 11/04/2014 AND AFTER)
  • 5
    3021923 PLUG, TENSIONER, REAR (BUILT 11/03/2014 AND BEFORE)
    PLUG, TENSIONER, REAR (BUILT 11/03/2014 AND BEFORE)
  • 6
    7556310 WASHER, SEALING
    WASHER, SEALING
  • 7
    3021517 TENSIONER, HYDRAULIC (BUILT 11/03/2014 AND BEFORE)
    TENSIONER, HYDRAULIC (BUILT 11/03/2014 AND BEFORE)
  • 8
    7517257 SCREW
    SCREW
  • 9
    2204618 KIT, CAMCHAIN AND SPROCKET (BUILT 11/03/2014 AND BEFORE)
    KIT, CAMCHAIN AND SPROCKET (BUILT 11/03/2014 AND BEFORE)
  • 9
    2206002 KIT, CAMCHAIN AND SPROCKET, LGB (BUILT 11/04/2014 AND AFTER)
    KIT, CAMCHAIN AND SPROCKET, LGB (BUILT 11/04/2014 AND AFTER)
  • 10
    3021922 PLUG, TENSIONER, FRONT
    PLUG, TENSIONER, FRONT
  • 11
    3021668 SLEEVE, DAMPER, CAM DRIVE
    SLEEVE, DAMPER, CAM DRIVE
  • 12
    3022606 TENSIONER, HYDRAULIC, LGB (BUILT 11/04/2014 AND AFTER)
    TENSIONER, HYDRAULIC, LGB (BUILT 11/04/2014 AND AFTER)
  • 13
    3022632 ASM., TENSIONER, HYDRAULIC, FRONT (BUILT 11/04/2014 AND AFTER) (INCL. SLEEVE)
    ASM., TENSIONER, HYDRAULIC, FRONT (BUILT 11/04/2014 AND AFTER) (INCL. SLEEVE)
  • 13
    3022610 SLEEVE, DAMPER, CAM DRIVE
    SLEEVE, DAMPER, CAM DRIVE
  • 14
    7556797 WASHER, SEALING, LGB (BUILT 11/04/2014 AND AFTER)
    WASHER, SEALING, LGB (BUILT 11/04/2014 AND AFTER)
