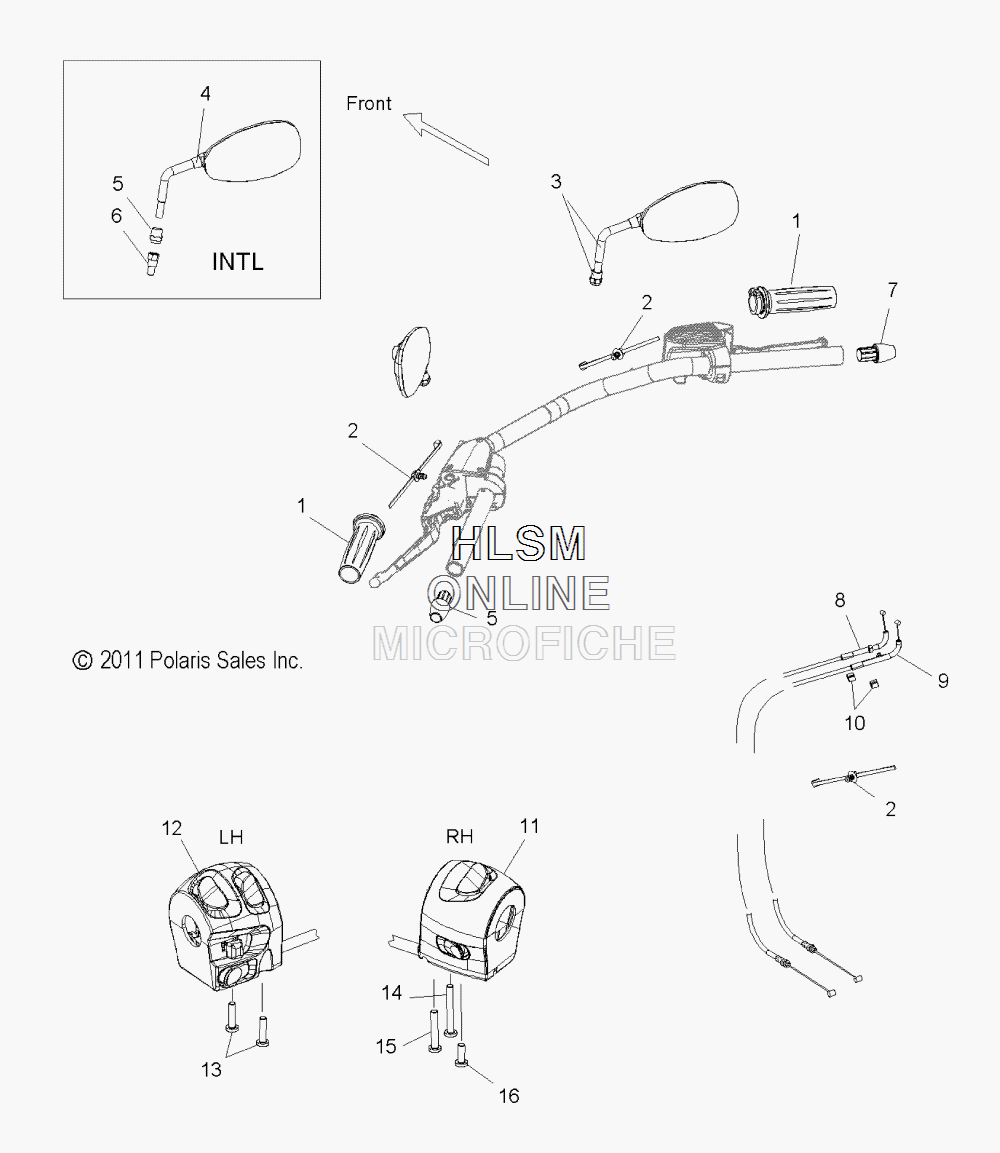

CONTROLS AND MIRRORS для Polaris BOARDWALK, INTL [RW36EE] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5413019 GRIP, HANDLEBAR, 1 INCH, LEFT HAND
    GRIP, HANDLEBAR, 1 INCH, LEFT HAND
  • 1
    5413501 GRIP, HANDLEBAR, 1 INCH, RIGHT HAND
    GRIP, HANDLEBAR, 1 INCH, RIGHT HAND
  • 2
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 3
    7547397-156 NUT, JAM, (CHROME)
    NUT, JAM, (CHROME)
  • 4
    2635250-156 ASM., MIRROR, LEFT HAND, (CHROME)
    ASM., MIRROR, LEFT HAND, (CHROME)
  • 4
    2635251-156 ASM., MIRROR, RIGHT HAND, (CHROME)
    ASM., MIRROR, RIGHT HAND, (CHROME)
  • 5
    7547455-156 NUT, MIRROR, CHROME (1 PER MIRROR)
    NUT, MIRROR, CHROME (1 PER MIRROR)
  • 6
    7547456-156 NUT, MIRROR, LEFT HAND THREAD, (CHROME) (1 PER MIRROR)
    NUT, MIRROR, LEFT HAND THREAD, (CHROME) (1 PER MIRROR)
  • 7
    5437103 CAP, HANDLEBAR
    CAP, HANDLEBAR
  • 8
    7081452 CABLE, THROTTLE, PULL
    CABLE, THROTTLE, PULL
  • 9
    7081448 CABLE, THROTTLE, PUSH
    CABLE, THROTTLE, PUSH
  • 10
    5433039 CLIP, THROTTLE CABLE
    CLIP, THROTTLE CABLE
  • 11
    4012119-067 SWITCH, CONTROL, LEFT HAND, (BLACK)
    SWITCH, CONTROL, LEFT HAND, (BLACK)
  • 12
    4011357-067 SWITCH, CONTROL, RIGHT HAND, (BLACK)
    SWITCH, CONTROL, RIGHT HAND, (BLACK)
  • 13
    7517816 SCREW, 20MM (BLACK)
    SCREW, 20MM (BLACK)
  • 14
    7518890 SCREW, 55MM (BLACK)
    SCREW, 55MM (BLACK)
  • 15
    7518888 SCREW, 40MM (BLACK)
    SCREW, 40MM (BLACK)
  • 16
    7518886 SCREW, 12MM (BLACK)
    SCREW, 12MM (BLACK)
