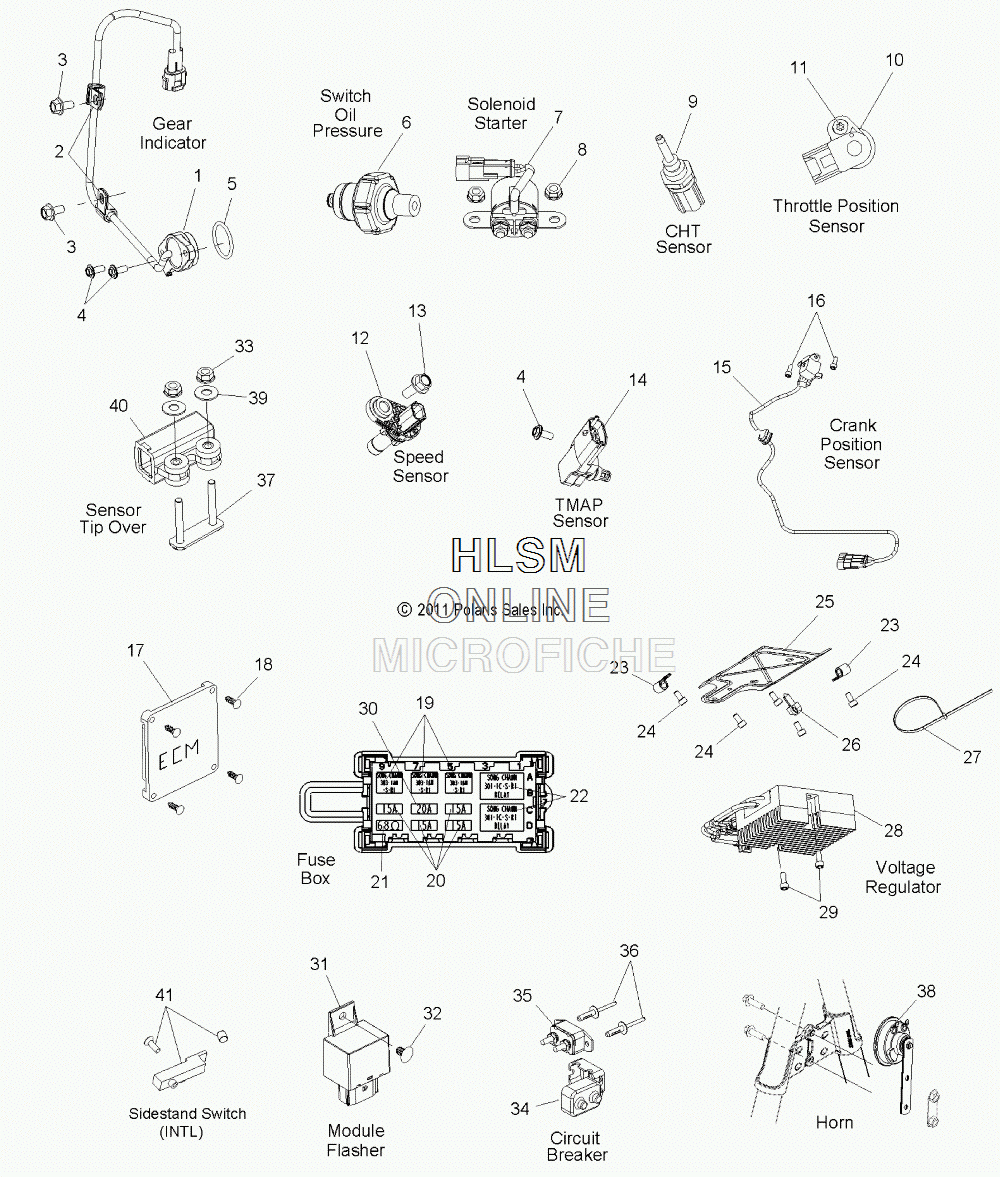

SWITCHES AND SENSORS AND COMPONENTS для Polaris BOARDWALK [V14RB36] - 2014 года выпуска`
-
№АртикулНазвание
-
14010976 SWITCH, GEAR INDICATORSWITCH, GEAR INDICATOR
-
27080983 CLAMPCLAMP
-
37517278 SCREWSCREW
-
47518338 SCREWSCREW
-
55412530 O-RINGO-RING
-
64012668 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
74014471 SOLENOID, STARTERSOLENOID, STARTER
-
87710495 NUTNUT
-
94012971 SENSOR, CYLINDER HEAD TEMPSENSOR, CYLINDER HEAD TEMP
-
104012101 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
117518901 SCREWSCREW
-
124011884 SENSOR, VEHICLE SPEEDSENSOR, VEHICLE SPEED
-
137517750 SCREWSCREW
-
142410422 SENSOR, T-MAPSENSOR, T-MAP
-
154012280 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
167518045 SCREWSCREW
-
174013160 PCM, SERVICEPCM, SERVICE
-
187670141 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
194011283 RELAY, SERIES 303RELAY, SERIES 303
-
202410280 FUSE, 15 AMP.FUSE, 15 AMP.
-
214013062 RESISTORRESISTOR
-
224011284 RELAY, SERIES 301RELAY, SERIES 301
-
237080983 CLAMPCLAMP
-
247517739 SCREWSCREW
-
255248079-408 BRACKET, CONNECTOR, ZINC/BLACKBRACKET, CONNECTOR, ZINC/BLACK
-
267670102 CLIPCLIP
-
277080138 CABLE TIECABLE TIE
-
284012718 REGULATOR, VOLT, BLACKREGULATOR, VOLT, BLACK
-
297517272 SCREWSCREW
-
302434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
314013199 MODULE, FLASHER, LED, V2MODULE, FLASHER, LED, V2
-
327670078 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
337710495 NUTNUT
-
344010778 BOOTBOOT
-
352410332 BREAKER, CIRCUITBREAKER, CIRCUIT
-
357541931 NUTNUT
-
367081040 RIVETRIVET
-
371016624 PLATE, STUD, M4PLATE, STUD, M4
-
384012448 HORNHORN
-
397556477 WASHER, FLATWASHER, FLAT
-
404011296 SENSOR, TIP OVERSENSOR, TIP OVER
-
411017988 ASM., SIDE STAND SENSOR (INTL)ASM., SIDE STAND SENSOR (INTL)
-
414013130 SWITCH, SIDE STAND (INTL)SWITCH, SIDE STAND (INTL)
-
414013131 MAGNET, SIDE STAND (INTL)MAGNET, SIDE STAND (INTL)
-
417519276 SCREW (INTL)SCREW (INTL)
