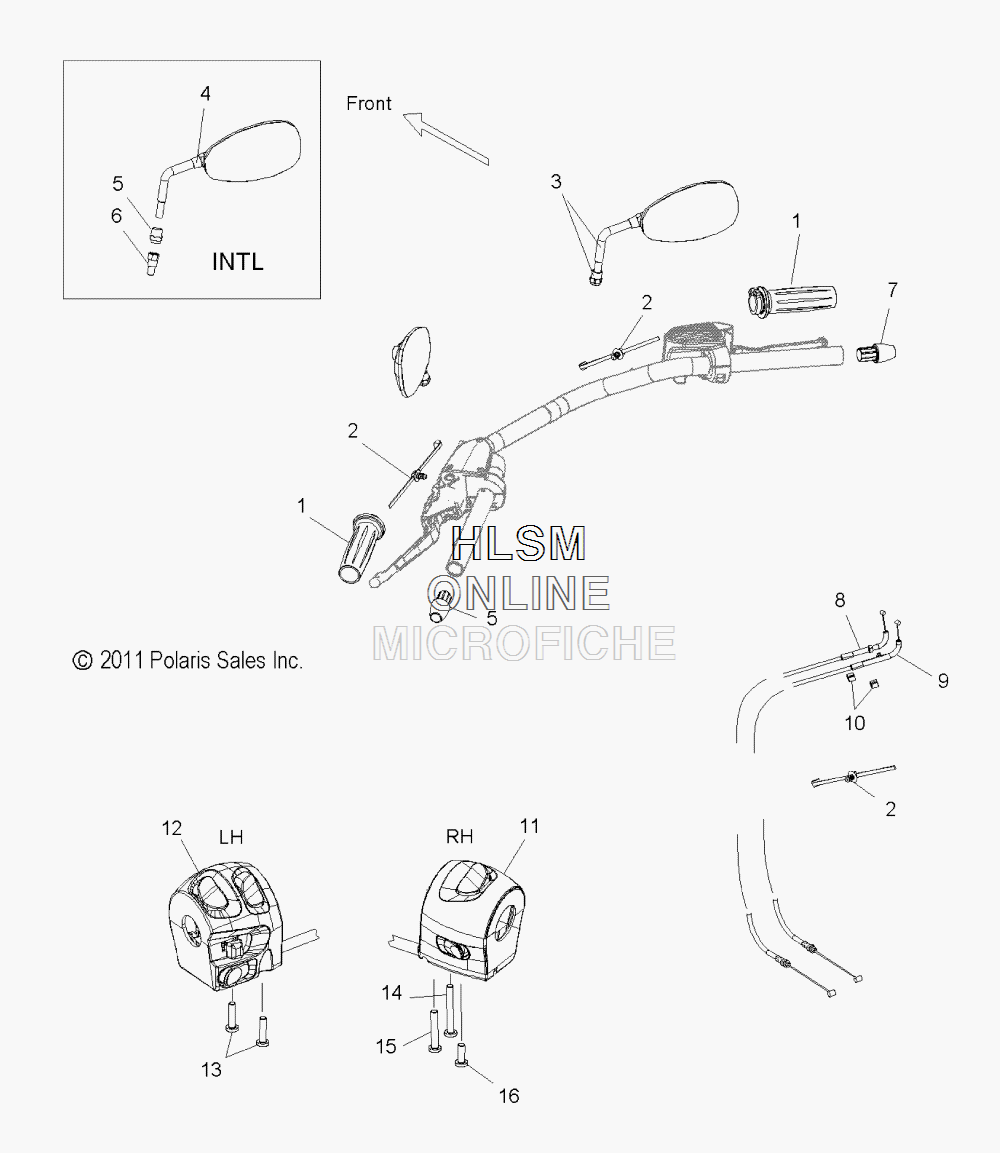

CONTROLS AND MIRRORS для Polaris BOARDWALK [V14RB36] - 2014 года выпуска
-
№АртикулНазвание
-
15413019 GRIP, HANDLEBAR, 1 INCH, LEFT HANDGRIP, HANDLEBAR, 1 INCH, LEFT HAND
-
15413501 GRIP, HANDLEBAR, 1 INCH, RIGHT HANDGRIP, HANDLEBAR, 1 INCH, RIGHT HAND
-
27081496 CLIP, ROUTINGCLIP, ROUTING
-
32633690-156 ASM., MIRROR, LEFT HAND, CHROMEASM., MIRROR, LEFT HAND, CHROME
-
32633691-156 ASM., MIRROR, RIGHT HAND, CHROMEASM., MIRROR, RIGHT HAND, CHROME
-
37547397-156 NUT, JAM, CHROMENUT, JAM, CHROME
-
42877740-156 ASM., MIRROR, LEFT HAND, CHROME (INT'L)ASM., MIRROR, LEFT HAND, CHROME (INT'L)
-
42877741-156 ASM., MIRROR, RIGHT HAND, CHROME (INT'L)ASM., MIRROR, RIGHT HAND, CHROME (INT'L)
-
57547455-156 NUT, MIRROR, CHROME (1 PER MIRROR)NUT, MIRROR, CHROME (1 PER MIRROR)
-
67517456-156 NUT, MIRROR, LEFT HAND THREAD, CHROME (1 PER MIRROR)NUT, MIRROR, LEFT HAND THREAD, CHROME (1 PER MIRROR)
-
75437103 CAP, HANDLEBARCAP, HANDLEBAR
-
87081452 CABLE, THROTTLE, PULLCABLE, THROTTLE, PULL
-
97081448 CABLE, THROTTLE, PUSHCABLE, THROTTLE, PUSH
-
105433039 CLIP, THROTTLE CABLECLIP, THROTTLE CABLE
-
114012119-067 SWITCH, CONTROL, LEFT HAND, BLACKSWITCH, CONTROL, LEFT HAND, BLACK
-
124011357-067 SWITCH, CONTROL, RIGHT HAND, BLACKSWITCH, CONTROL, RIGHT HAND, BLACK
-
137517816 SCREW, 20MM BLACKSCREW, 20MM BLACK
-
147518890 SCREW, 55MM BLACKSCREW, 55MM BLACK
-
157518888 SCREW, 40MM BLACKSCREW, 40MM BLACK
-
167518886 SCREW, 12MM BLACKSCREW, 12MM BLACK
