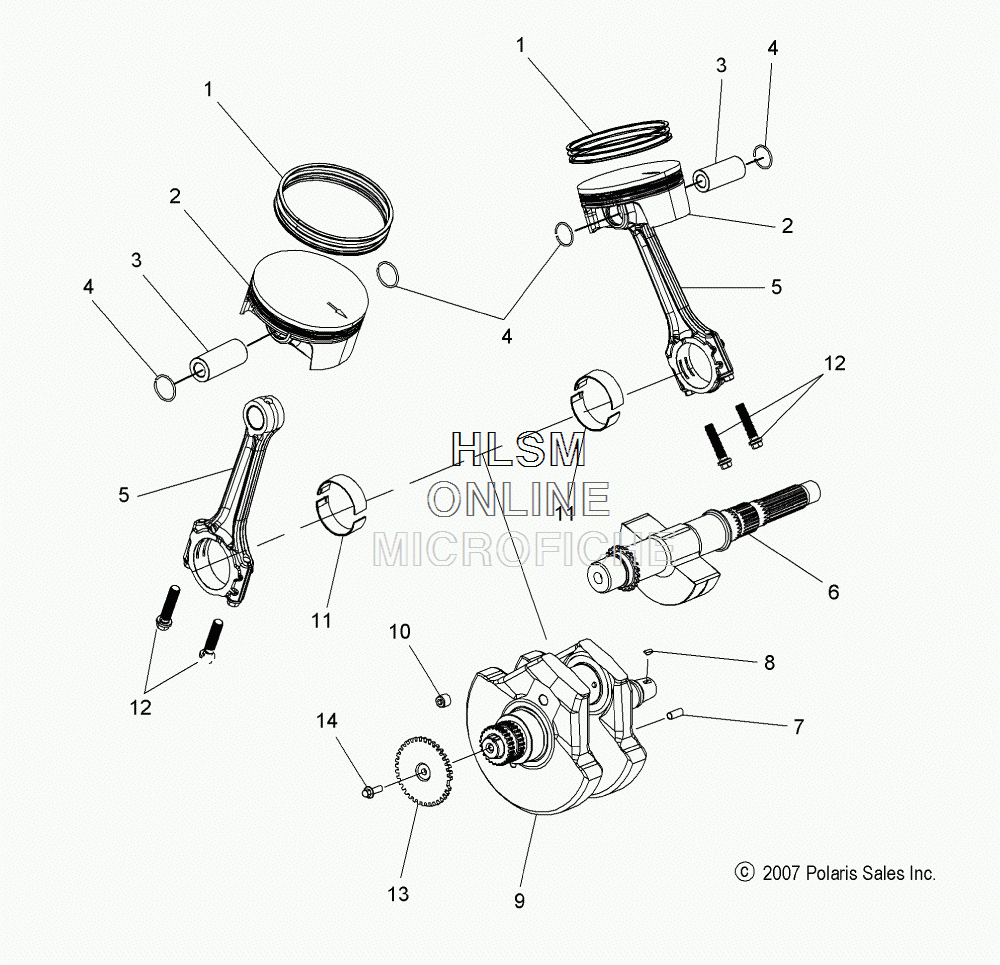

CRANKSHAFT AND PISTON для Polaris BOARDWALK [V14RB36] - 2014 года выпуска
-
№АртикулНазвание
-
12203006 KIT, PISTON RING (INCL. TOP, MIDDLE, BOTTOM RINGS)KIT, PISTON RING (INCL. TOP, MIDDLE, BOTTOM RINGS)
-
23021832 ASM., PISTON (INCL. PISTON, RINGS, CLIPS, PIN)ASM., PISTON (INCL. PISTON, RINGS, CLIPS, PIN)
-
35131860 PIN, WRISTPIN, WRIST
-
47710479 RING, RETAININGRING, RETAINING
-
53021663 ASM., CONNECTING ROD (INCL. 12)ASM., CONNECTING ROD (INCL. 12)
-
65137428 SHAFT, BALANCESHAFT, BALANCE
-
77661045 PIN, SOLIDPIN, SOLID
-
87721122 KEYKEY
-
93022089 ASM., CRANKSHAFT (INCL. 8,10)ASM., CRANKSHAFT (INCL. 8,10)
-
113514390-067 BEARING, ROD, BLACKBEARING, ROD, BLACK
-
113514390-159 BEARING, ROD, ORANGEBEARING, ROD, ORANGE
-
113514390-027 BEARING, ROD, BLUEBEARING, ROD, BLUE
-
127518524 SCREWSCREW
-
133021823 WHEEL, TIMING, CRANK POSITIONWHEEL, TIMING, CRANK POSITION
-
147516734 SCREWSCREW
