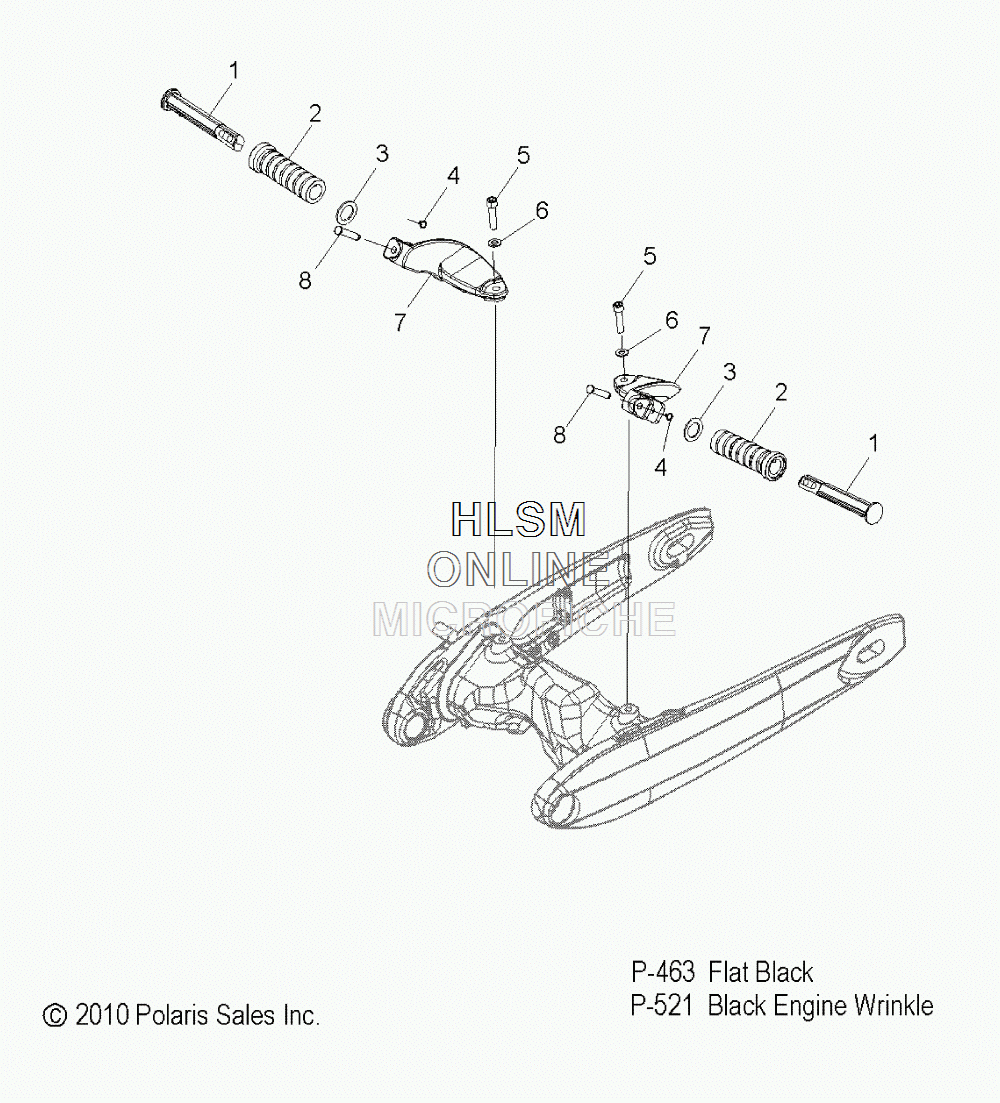

FOOTPEGS- PASSENGER для Polaris HAMMER 8-BALL [V11HB36] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    5136035-411 FOOTPEG (LEFT) (BRUSHED)
    FOOTPEG (LEFT) (BRUSHED)
  • 1
    5136036-411 FOOTPEG (RIGHT) (BRUSHED)
    FOOTPEG (RIGHT) (BRUSHED)
  • 2
    5412261 PAD, FOOTPEG, REAR
    PAD, FOOTPEG, REAR
  • 3
    7556274 WASHER, FOOTPEG, PIVOT
    WASHER, FOOTPEG, PIVOT
  • 4
    7710644 RING, RETAINING, SPIRAL, EXT, SS
    RING, RETAINING, SPIRAL, EXT, SS
  • 5
    7517517 SCREW
    SCREW
  • 6
    7556245 WASHER, FLAT, 8X1.6, ZINC
    WASHER, FLAT, 8X1.6, ZINC
  • 7
    5137313-521 SUPPORT, FOOTPEG, PASS (BLACK ENGINE WRINKLE)
    SUPPORT, FOOTPEG, PASS (BLACK ENGINE WRINKLE)
  • 7
    5137313-463 SUPPORT, FOOTPEG, PASS (FLAT BLACK) (RIGHT)
    SUPPORT, FOOTPEG, PASS (FLAT BLACK) (RIGHT)
  • 7
    5134197-463 SUPPORT, FOOTPEG, PASS (FLAT BLACK) (RIGHT)
    SUPPORT, FOOTPEG, PASS (FLAT BLACK) (RIGHT)
  • 7
    5134197-521 SUPPORT, FOOTPEG, PASS (BLACK ENGINE WRINKLE) (RIGHT)
    SUPPORT, FOOTPEG, PASS (BLACK ENGINE WRINKLE) (RIGHT)
  • 8
    7661980 PIN, PIVOT
    PIN, PIVOT
