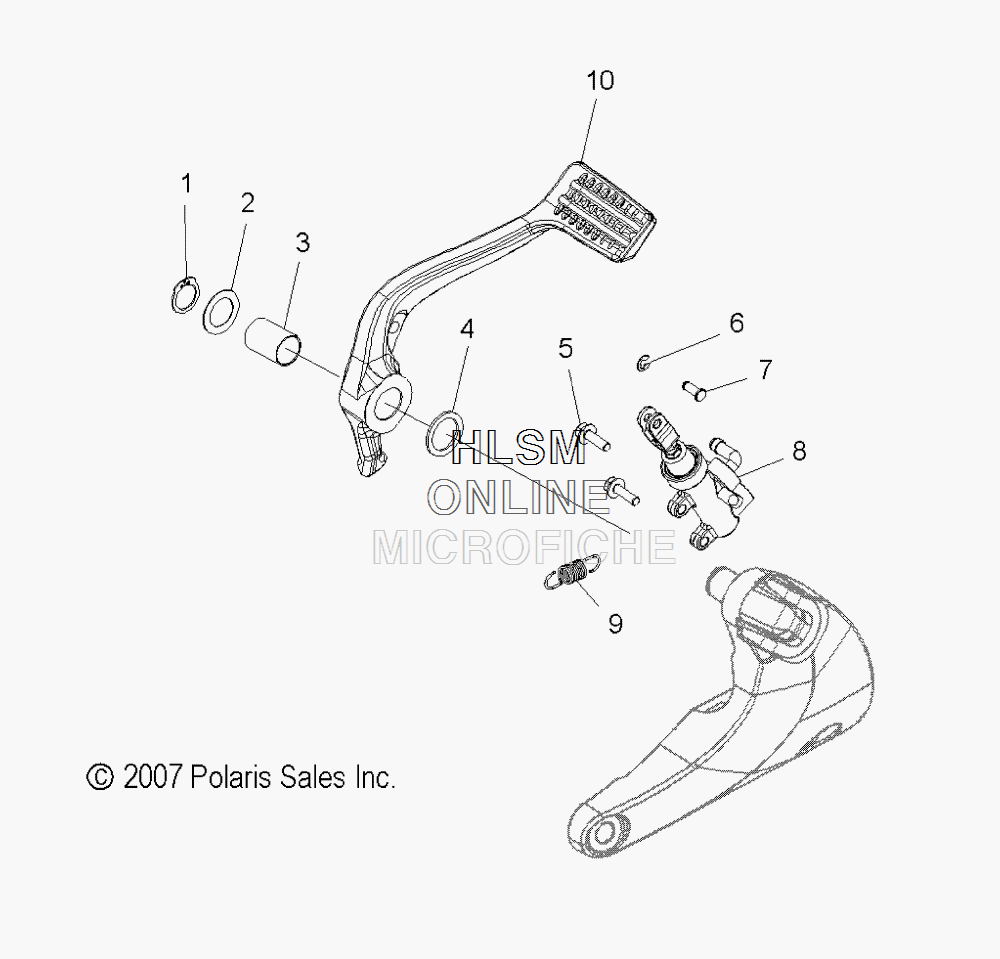

BRAKE PEDAL AND REAR MASTER CYLINDER для Polaris HAMMER 8-BALL [V11HB36] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7710499 RING, RETAINING, EXT, 14.7X1
    RING, RETAINING, EXT, 14.7X1
  • 2
    7556075 WASHER-SHIM, 25.4X.46X16.7
    WASHER-SHIM, 25.4X.46X16.7
  • 3
    3514490 BUSHING, PEDAL, FOOT
    BUSHING, PEDAL, FOOT
  • 4
    7556273 WASHER-WAVE, M19 (10)
    WASHER-WAVE, M19 (10)
  • 5
    7518141 SCREW-HXFLGHD, M6X20, ZPC
    SCREW-HXFLGHD, M6X20, ZPC
  • 6
    7710568 E-CLIP-M5, SS, 0600101
    E-CLIP-M5, SS, 0600101
  • 7
    7661873 PIN-CLEVIS, M6X15, E-CLIP
    PIN-CLEVIS, M6X15, E-CLIP
  • 8
    1911094-266 CYLINDER, MASTER (BLACK), 12.7MM, 40MM
    CYLINDER, MASTER (BLACK), 12.7MM, 40MM
  • 9
    7042186 SPRING, EXTENSION, BRAKE RETURN
    SPRING, EXTENSION, BRAKE RETURN
  • 10
    5135730-463 PEDAL, BRAKE LEVER (FLAT BLACK)
    PEDAL, BRAKE LEVER (FLAT BLACK)
