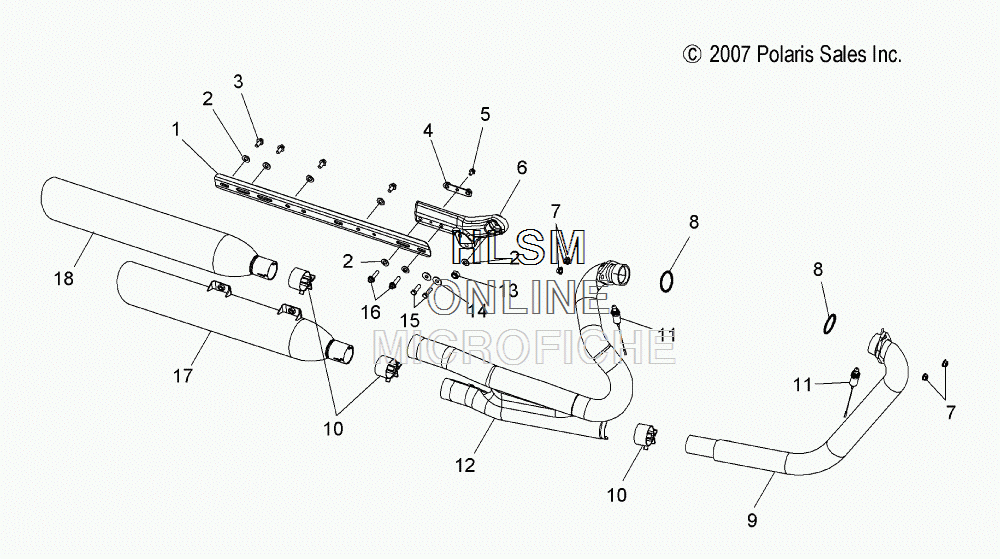

EXHAUST для Polaris HAMMER 8-BALL [V11HB36] - 2011 года выпуска`
-
№АртикулНазвание
-
15250030-408 BRACKET, MUFFLER TO MUFFLER, ZNBBRACKET, MUFFLER TO MUFFLER, ZNB
-
27556234 WASHER, FLAT, 10X2WASHER, FLAT, 10X2
-
37519005 SCREWSCREW
-
41015172-236 PLATE, NUT, ZINCPLATE, NUT, ZINC
-
57518393 SCREW-HWH, THDFRM, M6-1X10 (SILVER)SCREW-HWH, THDFRM, M6-1X10 (SILVER)
-
65135692-468 SUPPORT, EXHAUST (BLACK ANODIZED ALUMINUM)SUPPORT, EXHAUST (BLACK ANODIZED ALUMINUM)
-
77547014 NUT, HXFLGHD, M8NUT, HXFLGHD, M8
-
85246008 GASKETGASKET
-
91262105-156 ASM., EXHAUST HEADPIPE, FRONT (CHROME)ASM., EXHAUST HEADPIPE, FRONT (CHROME)
-
91262105-266 ASM., EXHAUST HEADPIPE, FRONT (BLACK)ASM., EXHAUST HEADPIPE, FRONT (BLACK)
-
91261841-156 SHIELD, FRONT (CHROME)SHIELD, FRONT (CHROME)
-
91261841-266 SHIELD, FRONT (BLACK)SHIELD, FRONT (BLACK)
-
97080774 CLAMP, HEAT SHIELDCLAMP, HEAT SHIELD
-
107081179 CLAMP-EXHAUST, SSCLAMP-EXHAUST, SS
-
114010430 SENSOR, OXYGENSENSOR, OXYGEN
-
121262013-156 ASM., EXHAUST HEAD PIPE, REAR (CHROME)ASM., EXHAUST HEAD PIPE, REAR (CHROME)
-
121262013-266 ASM., EXHAUST HEAD PIPE, REAR (BLACK)ASM., EXHAUST HEAD PIPE, REAR (BLACK)
-
137547268 NUT-NYLOC M10X1.5, REFNUT-NYLOC M10X1.5, REF
-
147556352 WASHER, FLAT, 8X1.6, 0600090WASHER, FLAT, 8X1.6, 0600090
-
157518443 SCREW-HEXHD, M8X25, 0600088SCREW-HEXHD, M8X25, 0600088
-
167518800 SCREW-HXFLGHD, M8X30, 0600086SCREW-HXFLGHD, M8X30, 0600086
-
171262194-266 ASM., MUFFLER, FRONT (BLACK)ASM., MUFFLER, FRONT (BLACK)
-
171262019-266 ASM., MUFFLER, FRONT (BLACK) (INT'L)ASM., MUFFLER, FRONT (BLACK) (INT'L)
-
181262195-266 ASM., MUFFLER, REAR (BLACK)ASM., MUFFLER, REAR (BLACK)
-
181262021-156 ASM., MUFFLER, REAR (CHROME) (INT'L)ASM., MUFFLER, REAR (CHROME) (INT'L)
-
181262021-266 ASM., MUFFLER, REAR (BLACK) (INT'L)ASM., MUFFLER, REAR (BLACK) (INT'L)
