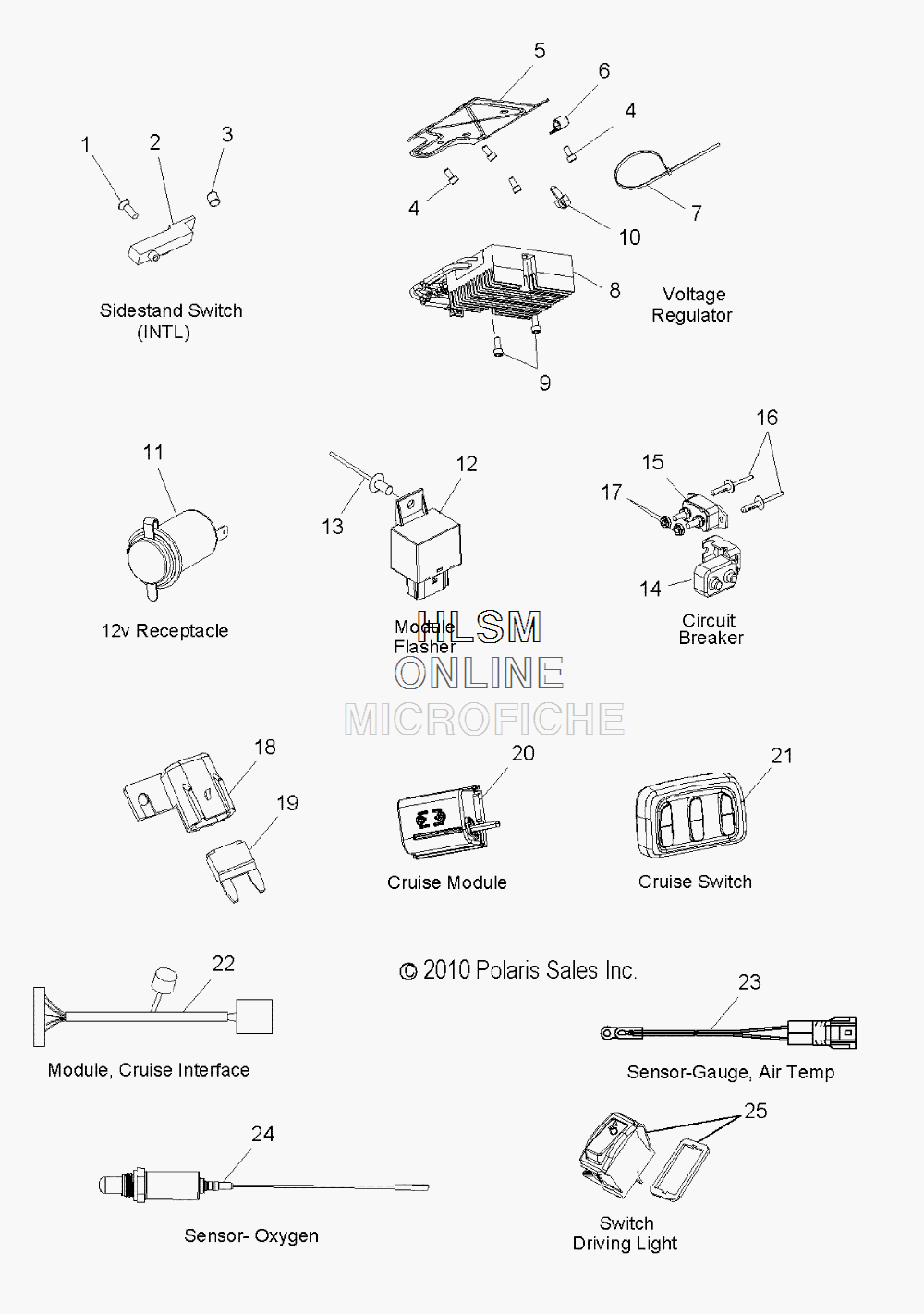

SWITCHES- SENSORS AND COMPONENTS 2 для Polaris CROSS COUNTRY NESS [V11DC36] - 2011 года выпуска
-
№АртикулНазвание
-
17519276 SCR-FLHD-M4X0.7X12MM, TORXSCR-FLHD-M4X0.7X12MM, TORX
-
24013130 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
34013131 MAGNET, SIDE STANDMAGNET, SIDE STAND
-
47517739 SCREWSCREW
-
55248079-408 BRACKET, CONNECTOR (ZINC/BLACK)BRACKET, CONNECTOR (ZINC/BLACK)
-
67080983 CLAMPCLAMP
-
77080138 CABLE TIECABLE TIE
-
84012717 REGULATOR, VOLTAGE (BLACK)REGULATOR, VOLTAGE (BLACK)
-
97517272 SCREWSCREW
-
107670102 CLIPCLIP
-
114012393 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
-
124013199 MODULE, FLASHER, LEDMODULE, FLASHER, LED
-
137081617 RIVET-PLASTIC, R-LOCK, .248 DIARIVET-PLASTIC, R-LOCK, .248 DIA
-
144010778 BOOT-CIRCUT BREAKER, REDBOOT-CIRCUT BREAKER, RED
-
152410332 BREAKER, CIRCUITBREAKER, CIRCUIT
-
167081040 RIVET-PLASTIC, R-LOCK, .197 DIARIVET-PLASTIC, R-LOCK, .197 DIA
-
177541931 NUT, HEX, S.S.NUT, HEX, S.S.
-
184012260 COVER, FUSE HOLDERCOVER, FUSE HOLDER
-
192434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
204012752 MODULE (CRUISE)MODULE (CRUISE)
-
214012843 SWITCH (CRUISE)SWITCH (CRUISE)
-
224013220 MODULE, INTERFACEMODULE, INTERFACE
-
232410443 SENSOR, GAUGE, AIR TEMPSENSOR, GAUGE, AIR TEMP
-
244010430 SENSOR, OXYGENSENSOR, OXYGEN
-
254011317 SWITCH, DRIVING LIGHT, SPSTSWITCH, DRIVING LIGHT, SPST
