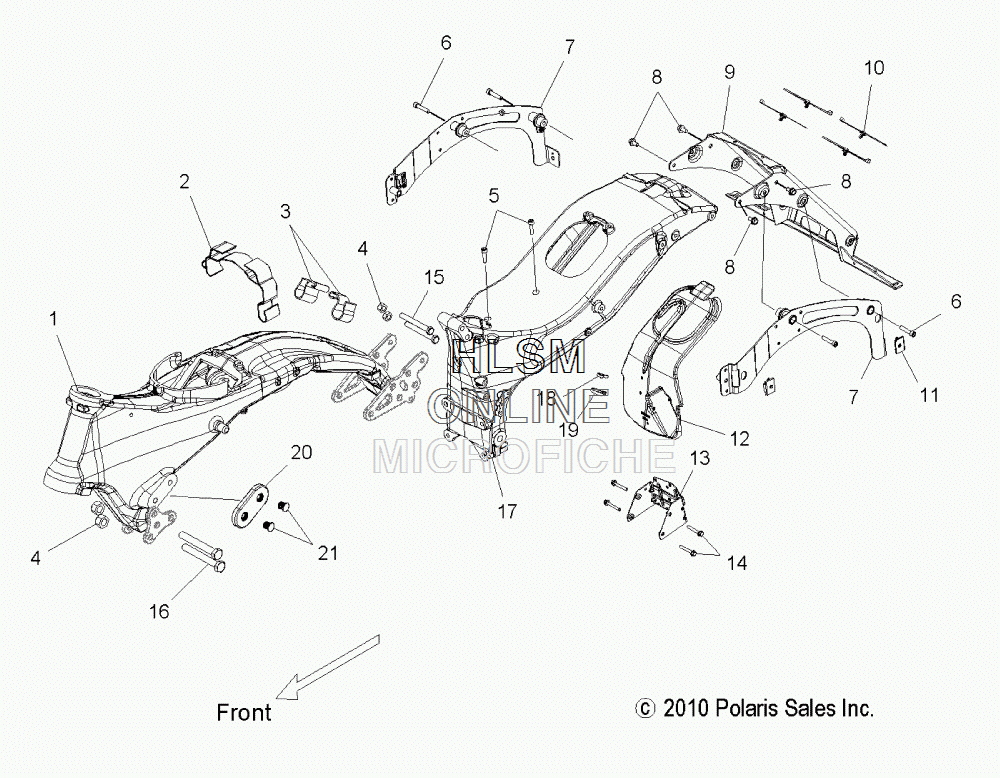

FRAME ASSEMBLY для Polaris CROSS COUNTRY NESS [V11DC36] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    1016470-521 ASM., AIRBOX, FRAME, SUB (BLACK ENGINE WRINKLE)
    ASM., AIRBOX, FRAME, SUB (BLACK ENGINE WRINKLE)
  • 2
    5438092 CLIP, AIRBOX LINES
    CLIP, AIRBOX LINES
  • 3
    5521778 CLIP, EXTRUDED, HARNESS
    CLIP, EXTRUDED, HARNESS
  • 4
    7547232 NUT
    NUT
  • 5
    7517361 SCREW
    SCREW
  • 6
    7518178 SCREW
    SCREW
  • 7
    1017862 BRACKET, SB (LEFT)
    BRACKET, SB (LEFT)
  • 7
    1017863 BRACKET, SB (RIGHT)
    BRACKET, SB (RIGHT)
  • 8
    7519005 SCR-HXFL-M8X1.25X16 8.8 ZPC
    SCR-HXFL-M8X1.25X16 8.8 ZPC
  • 9
    1017822-329 SUBSTRUCTURE, REAR (BLACK E-COAT)
    SUBSTRUCTURE, REAR (BLACK E-COAT)
  • 10
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 11
    7052462 RECEPTACLE, 1/4 TURN
    RECEPTACLE, 1/4 TURN
  • 12
    5813569 FLAP, DEBRIS
    FLAP, DEBRIS
  • 13
    1017358 BRACKET, CRUISE CONTROL
    BRACKET, CRUISE CONTROL
  • 14
    7517950 SCR-M6X1.0X45 HX-FL-Y/D
    SCR-M6X1.0X45 HX-FL-Y/D
  • 15
    7518125 SCR-HEXHD, M10X100
    SCR-HEXHD, M10X100
  • 16
    7519028 SCR-HH-M12X1.75X90 10.9 ZPC
    SCR-HH-M12X1.75X90 10.9 ZPC
  • 17
    5136323-521 FRAME, MAIN, REAR (BLACK ENGINE WRINKLE)
    FRAME, MAIN, REAR (BLACK ENGINE WRINKLE)
  • 18
    7040964 CLIP, RETENSION CABLE
    CLIP, RETENSION CABLE
  • 19
    7081645 CLIP
    CLIP
  • 20
    5414106 COVER, HIGHWAY BAR MOUNT
    COVER, HIGHWAY BAR MOUNT
  • 21
    7670131 PLUG-NYLON, .322X.480
    PLUG-NYLON, .322X.480
