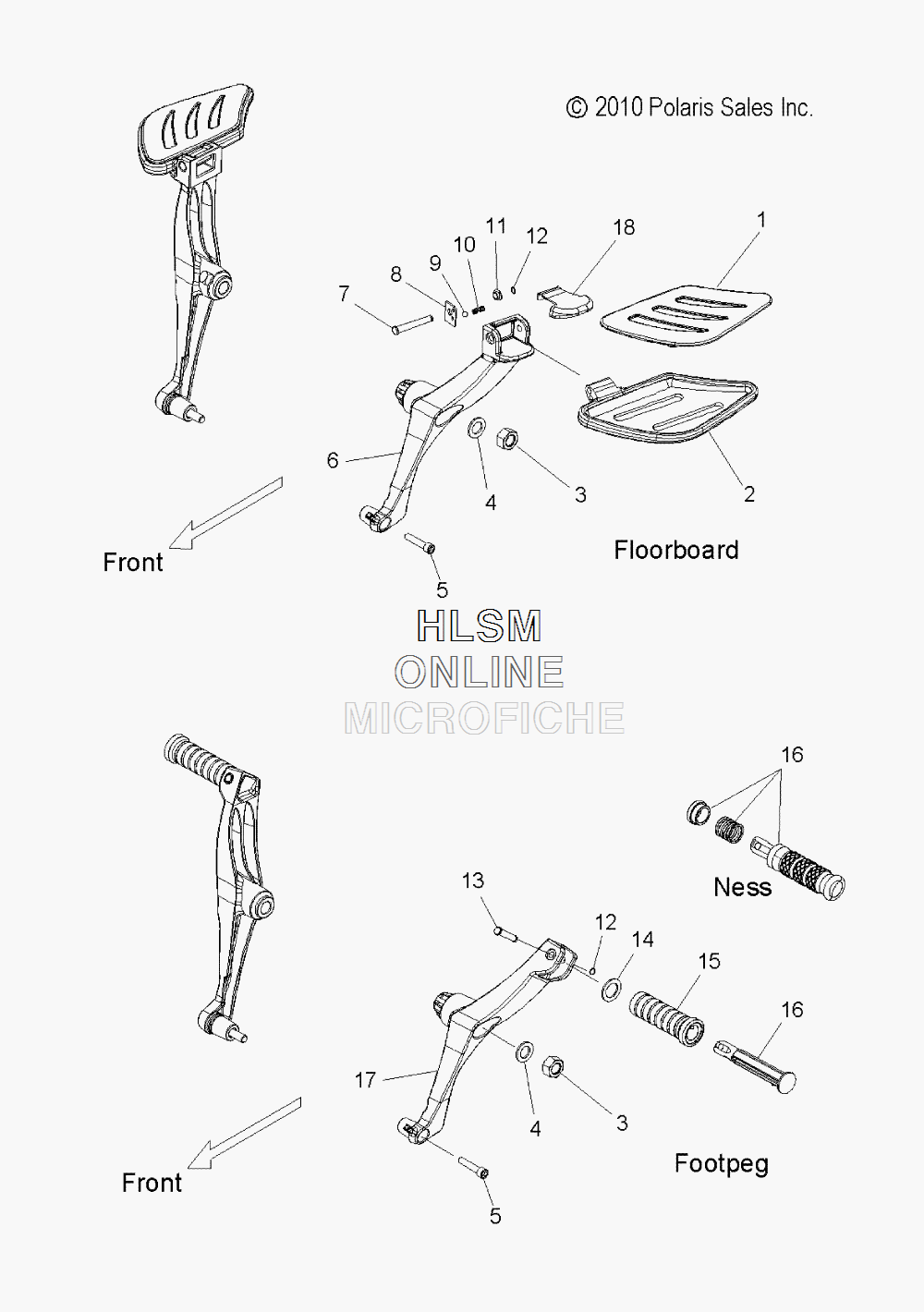

FLOORBOARD AND FOOTPEG - PASSENGER для Polaris CROSS COUNTRY NESS [V11DC36] - 2011 года выпуска`
-
№АртикулНазвание
-
15413024 PAD, PASSENGER, FLOORBOARD (LEFT)PAD, PASSENGER, FLOORBOARD (LEFT)
-
15413025 PAD, PASSENGER, FLOORBOARD (RIGHT)PAD, PASSENGER, FLOORBOARD (RIGHT)
-
25136537-463 FLOORBOARD, PASSENGER (LEFT) (FLAT BLACK)FLOORBOARD, PASSENGER (LEFT) (FLAT BLACK)
-
25136538-463 FLOORBOARD, PASSENGER (RIGHT) (FLAT BLACK)FLOORBOARD, PASSENGER (RIGHT) (FLAT BLACK)
-
37540001 NUT-M16X1.5NUT-M16X1.5
-
47556236 WSHR-FL, 17X2.5WSHR-FL, 17X2.5
-
57518178 SCREW (LEFT HAND SIDE)SCREW (LEFT HAND SIDE)
-
57518146 SCREW (RIGHT HAND SIDE)SCREW (RIGHT HAND SIDE)
-
65136382-463 MOUNT, FLOORBOARD, PASSENGER (LEFT) (FLAT BLACK)MOUNT, FLOORBOARD, PASSENGER (LEFT) (FLAT BLACK)
-
65136383-463 MOUNT, FLOORBOARD, PASSENGER (LEFT) (FLAT BLACK)MOUNT, FLOORBOARD, PASSENGER (LEFT) (FLAT BLACK)
-
77661979 PIN-PIVOT, FLOORBOARD, 55MM GRIPPIN-PIVOT, FLOORBOARD, 55MM GRIP
-
85252311 PLATE, DETENTPLATE, DETENT
-
95133944 BALL, DETENTBALL, DETENT
-
107042255 SPRING, COMPRESSIONSPRING, COMPRESSION
-
115437832 BUSHING-8X10X4X14BUSHING-8X10X4X14
-
127710644 RING, RETAININGRING, RETAINING
-
137661980 PIN, PIVOT, FOOTPEGPIN, PIVOT, FOOTPEG
-
147556274 WASHER, FOOTPEG, PIVOTWASHER, FOOTPEG, PIVOT
-
155412261 PAD, FOOTPEG, REARPAD, FOOTPEG, REAR
-
165136035-411 FOOTPEG (LEFT) (BRUSHED/CLEAR)FOOTPEG (LEFT) (BRUSHED/CLEAR)
-
165136036-411 FOOTPEG (RIGHT) (BRUSHED/CLEAR)FOOTPEG (RIGHT) (BRUSHED/CLEAR)
-
161017164 ASM., FOOTPEG, BILLET, KNURL (NESS)ASM., FOOTPEG, BILLET, KNURL (NESS)
-
167043249 SPRING, FOOTPEG, BILLET (NESS)SPRING, FOOTPEG, BILLET (NESS)
-
165436815 BUSHING, FOOTPEG, BILLET (NESS)BUSHING, FOOTPEG, BILLET (NESS)
-
175136384-595 MOUNT, FOOTPEG, PASSENGER (LEFT) (BLACK MINI-TEX) (NESS)MOUNT, FOOTPEG, PASSENGER (LEFT) (BLACK MINI-TEX) (NESS)
-
175136385-595 MOUNT, FOOTPEG, PASSENGER (RIGHT) (BLACK MINI-TEX) (NESS)MOUNT, FOOTPEG, PASSENGER (RIGHT) (BLACK MINI-TEX) (NESS)
-
185414107 BUMPER, FLOORBOARD, PASSENGER (LEFT)BUMPER, FLOORBOARD, PASSENGER (LEFT)
-
185414101 BUMPER, FLOORBOARD, PASSENGER (LEFT)BUMPER, FLOORBOARD, PASSENGER (LEFT)
