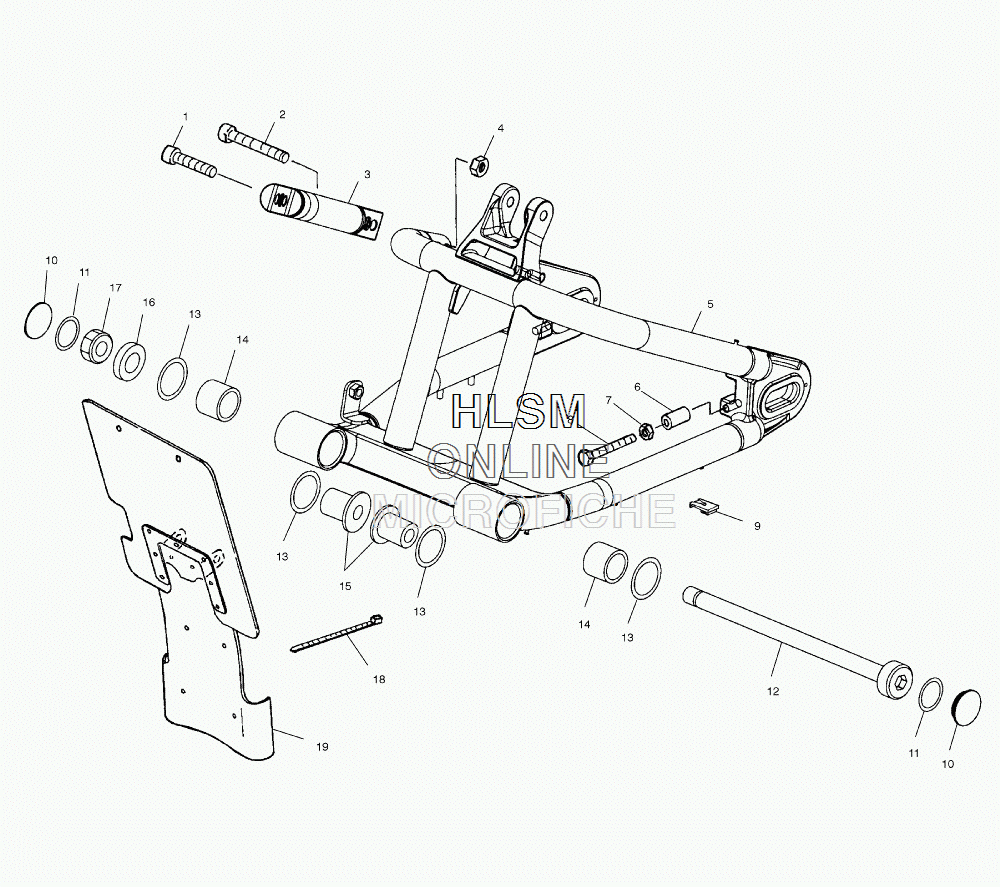

SWING ARM для Polaris SPECIAL EDITION (49 STATE) [V00CB15DAS] - 2000 года выпуска`
-
№АртикулНазвание
-
17517358 SCREWSCREW
-
27517367 SCREWSCREW
-
31080002-067 TUBE,UPPER, BLACKTUBE,UPPER, BLACK
-
47547039 NUTNUT
-
51080001-067 SWING ARM, BLACKSWING ARM, BLACK
-
65131908 SPACER,SWINGARM ALIGNMENTSPACER,SWINGARM ALIGNMENT
-
77547076 NUT,HEXHD,M8NUT,HEXHD,M8
-
87517508 SCREWSCREW
-
95433193 CLIP,POST,FRAMECLIP,POST,FRAME
-
105131681 CAP,SWINGARM PIVOT SCAP,SWINGARM PIVOT S
-
115411522 O-RING,1.8X34.9,0600083O-RING,1.8X34.9,0600083
-
125020925 SHAFT,SW.ARM,PIVOT SSHAFT,SW.ARM,PIVOT S
-
135411367 O-RINGO-RING
-
145432767 BUSHING,SWINGARMBUSHING,SWINGARM
-
155010445 SLEEVE,SWINGARMSLEEVE,SWINGARM
-
167556021 WASHERWASHER
-
177547048 NUT SNUT S
-
187080138 STRAP PANDUITSTRAP PANDUIT
-
191012719 FENDER ASM,INNERFENDER ASM,INNER
