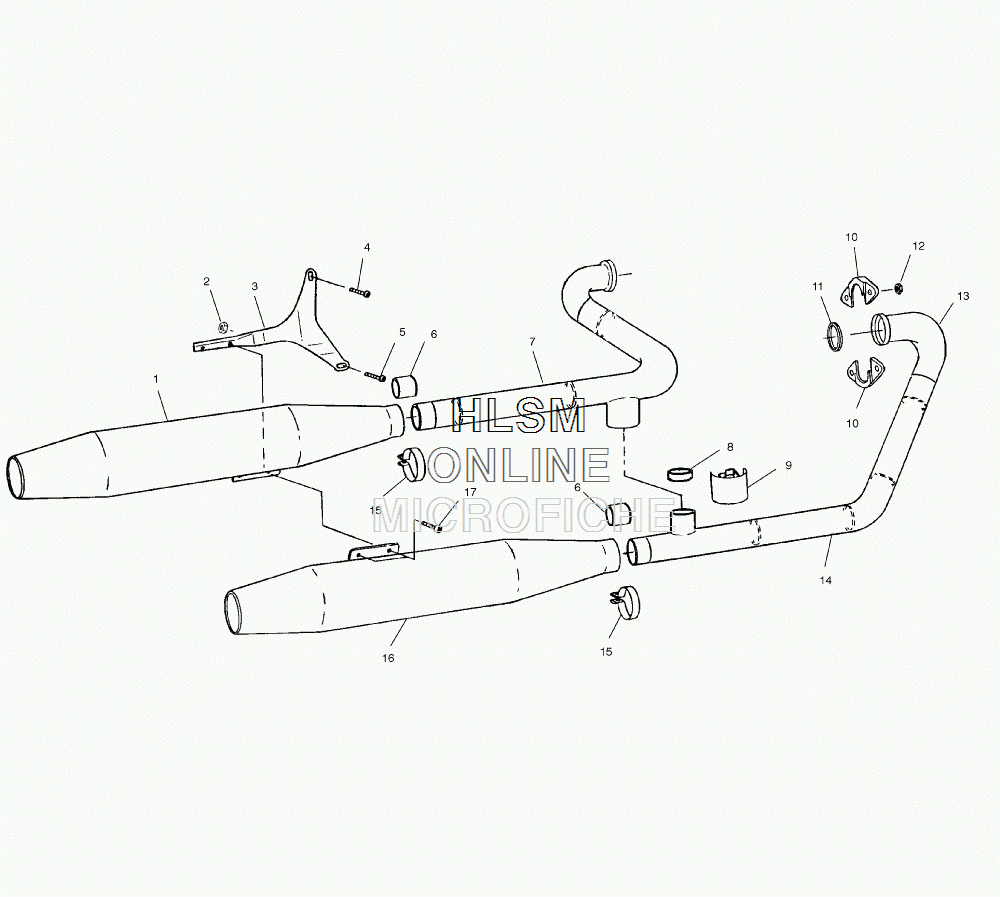

EXHAUST SYSTEM для Polaris SPECIAL EDITION (49 STATE) [V00CB15DAS] - 2000 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    1260949 MUFFLER,ASM.REAR,V92C (INCL. REF.15)
    MUFFLER,ASM.REAR,V92C (INCL. REF.15)
  • 2
    7547045 NUT S
    NUT S
  • 3
    5242187-067 MOUNT,REAR EXHAUST, BLACK.
    MOUNT,REAR EXHAUST, BLACK.
  • 4
    7517410 SCREW,SOCHD,M8X20
    SCREW,SOCHD,M8X20
  • 5
    7517458 SCREW,
    SCREW,
  • 6
    5811770 GASKET,EXHAUST,MUFFLER
    GASKET,EXHAUST,MUFFLER
  • 7
    1260954 EXHAUST,PIPE REAR,V92C (INCL. SHIELD)
    EXHAUST,PIPE REAR,V92C (INCL. SHIELD)
  • 8
    5811769 GASKET,EXHAUST,CROSSOVER S
    GASKET,EXHAUST,CROSSOVER S
  • 9
    7080835 CLAMP,CROSSOVER,V92C
    CLAMP,CROSSOVER,V92C
  • 10
    5131916 FLANGE,EXH,TOP/BOTTOM
    FLANGE,EXH,TOP/BOTTOM
  • 11
    5211770 GASKET,EXH.SEALING
    GASKET,EXH.SEALING
  • 12
    7546805 NUT,SS.
    NUT,SS.
  • 13
    1260953 EXHAUST,PIPE,FRONT,V92C (INCL. SHIELD)
    EXHAUST,PIPE,FRONT,V92C (INCL. SHIELD)
  • 14
    7080774 CLAMP,EXH,HEATSHIELD
    CLAMP,EXH,HEATSHIELD
  • 15
    7080834 CLAMP,MUFFLER
    CLAMP,MUFFLER
  • 16
    1260951 MUFFLER,ASM.FRNT,V92C (INCL. REF.15)
    MUFFLER,ASM.FRNT,V92C (INCL. REF.15)
  • 17
    7517524 SCREW,SOCHD,M8X25
    SCREW,SOCHD,M8X25
