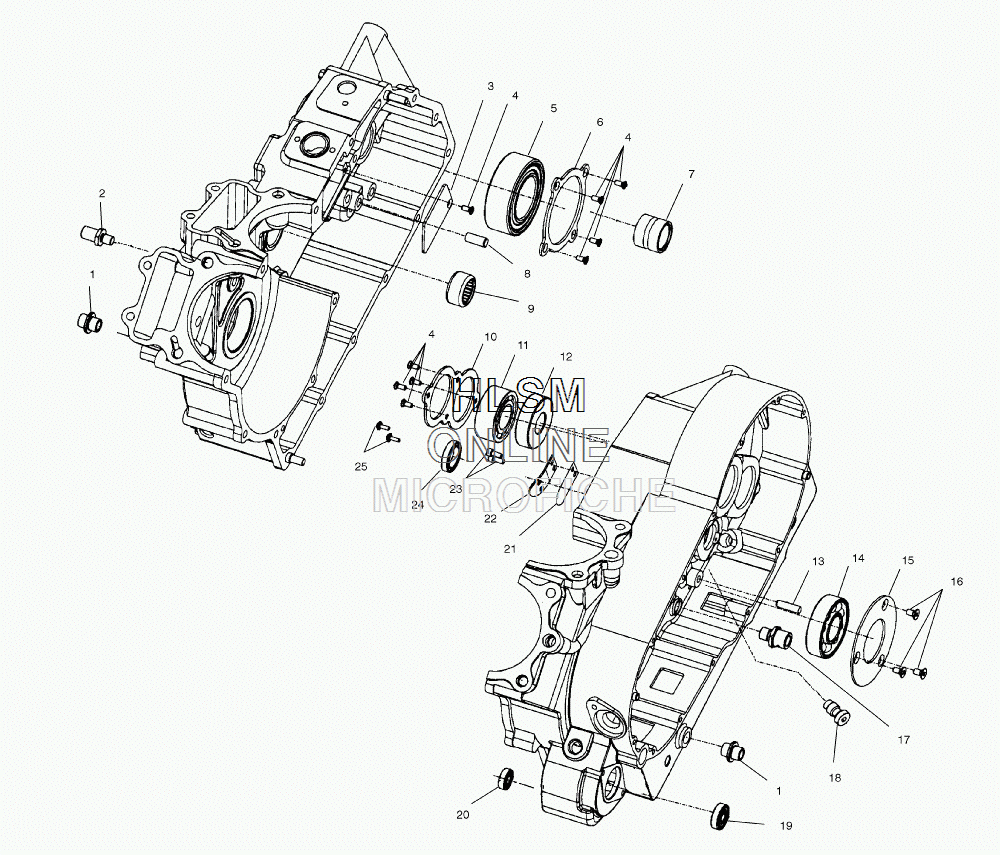

CRANKCASE BEARINGS для Polaris SPECIAL EDITION (49 STATE) [V00CB15DAS] - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    5020953 MOUNT.TOPHAT,ENGINE
    MOUNT.TOPHAT,ENGINE
  • 2
    5010430 ADAPTER-CAM CHAIN GUIDE
    ADAPTER-CAM CHAIN GUIDE
  • 3
    5131792 PLATE,BREATHER BAFFLE (NO LONGER AVAILABLE)
    PLATE,BREATHER BAFFLE (NO LONGER AVAILABLE)
  • 4
    7517255 SCREW,FLEFT HANDD,M5X12
    SCREW,FLEFT HANDD,M5X12
  • 5
    3513515 BEARING,ANGULAR
    BEARING,ANGULAR
  • 6
    5211817 PLATE,BRG.RETAIN,MAINSHAFT
    PLATE,BRG.RETAIN,MAINSHAFT
  • 7
    3584007 BEARING,ROLLER,28X37X30
    BEARING,ROLLER,28X37X30
  • 8
    7661020 PIN, SOL,M10X15
    PIN, SOL,M10X15
  • 9
    3552102 BEARING,NEEDLE
    BEARING,NEEDLE
  • 10
    5211774 PLATE, LEFT HAND,BRG.RETAIN,I/C SHAFT
    PLATE, LEFT HAND,BRG.RETAIN,I/C SHAFT
  • 11
    3513524 BEARING,BALL,DOUBLE ROW
    BEARING,BALL,DOUBLE ROW
  • 12
    3513512 BEARING,BALL
    BEARING,BALL
  • 13
    7661021 PIN,SOL,M8X30 S
    PIN,SOL,M8X30 S
  • 14
    3513525 BEARING,BALL,30X72X19
    BEARING,BALL,30X72X19
  • 15
    5211773 PLATE,BRG.RETAIN,BAL.SHAFT
    PLATE,BRG.RETAIN,BAL.SHAFT
  • 16
    7517440 SCREW
    SCREW
  • 17
    5132139 ADAPTER-SHIFT SHAFT
    ADAPTER-SHIFT SHAFT
  • 18
    5132226 LUBRICATION-JET
    LUBRICATION-JET
  • 19
    3513518 BEARING,BALL,10X30X9
    BEARING,BALL,10X30X9
  • 20
    3514313 BEARING,BALL
    BEARING,BALL
  • 21
    5131793 PLATE,REED,VALVE (NO LONGER AVAILABLE)
    PLATE,REED,VALVE (NO LONGER AVAILABLE)
  • 22
    5131791 PLATE,REED BACKER (NO LONGER AVAILABLE)
    PLATE,REED BACKER (NO LONGER AVAILABLE)
  • 23
    7517276 SCREW,SOCHD,M5X12
    SCREW,SOCHD,M5X12
  • 24
    3513511 BEARING,BALL,25X37X7
    BEARING,BALL,25X37X7
  • 25
    7517275 SCREW,M4X12,PNWSHRIGHT HANDD.
    SCREW,M4X12,PNWSHRIGHT HANDD.
