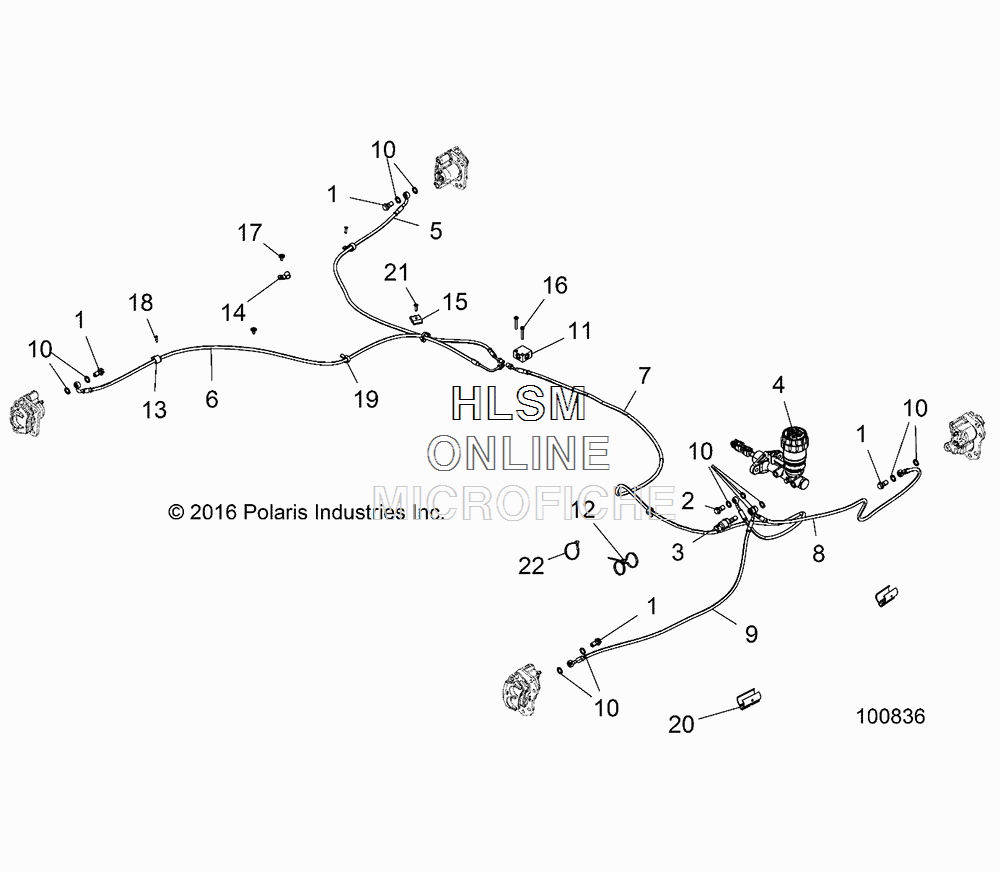

BRAKE LINES AND MASTER CYLINDER для Polaris ACE 900 ESP XC (VELOCITY BLUE) [A18DCE87BB] - 2018 года выпуска`
-
№АртикулНазвание
-
11910499 BOLT, BANJO, 10MMX1.00BOLT, BANJO, 10MMX1.00
-
21910958 BOLT, BANJO, 10MM X 1.25BOLT, BANJO, 10MM X 1.25
-
34014225 SWITCH-BRK, M10X1.25, DBL, SEALEDSWITCH-BRK, M10X1.25, DBL, SEALED
-
41912714 ASM-M/CYL, TANDEM, 11/16, FLGASM-M/CYL, TANDEM, 11/16, FLG
-
51912717 LINE-BRK, RL, 45, 20F, 70B, 180, JFLINE-BRK, RL, 45, 20F, 70B, 180, JF
-
61912718 LINE-BRK, RR, 52, 90F, 70B, 135, JFLINE-BRK, RR, 52, 90F, 70B, 135, JF
-
71912681 LINE-BRK, MCT, 64, 45B, 20F, 270, JFLINE-BRK, MCT, 64, 45B, 20F, 270, JF
-
81912719 LINE-BRK, FL, 40, 45B, 20B, 75, JFLINE-BRK, FL, 40, 45B, 20B, 75, JF
-
91912720 LINE-BRK, FR, 30, 20B, 20B, 220, JFLINE-BRK, FR, 30, 20B, 20B, 220, JF
-
105413212 SEALSEAL
-
117052293 FITTING, TEEFITTING, TEE
-
127081916 STRAP, PANDUIT, DOUBLE LOOP, 260MMSTRAP, PANDUIT, DOUBLE LOOP, 260MM
-
137080499 CLAMP, CABLECLAMP, CABLE
-
147080683 CLAMP-HOSE, .312DIA, VINYL COATCLAMP-HOSE, .312DIA, VINYL COAT
-
157670126 CLIP, RETAINING, DUEL, .250 IN LINECLIP, RETAINING, DUEL, .250 IN LINE
-
167512025 SCREWSCREW
-
177512084 SCREWSCREW
-
187621323 RIVETRIVET
-
197670102 CLIPCLIP
-
205439192 RETAINER-BRAKE LINE, 1 INRETAINER-BRAKE LINE, 1 IN
-
217517756 SCREWSCREW
-
227080761 STRAP-PANDUIT, 14 INSTRAP-PANDUIT, 14 IN
