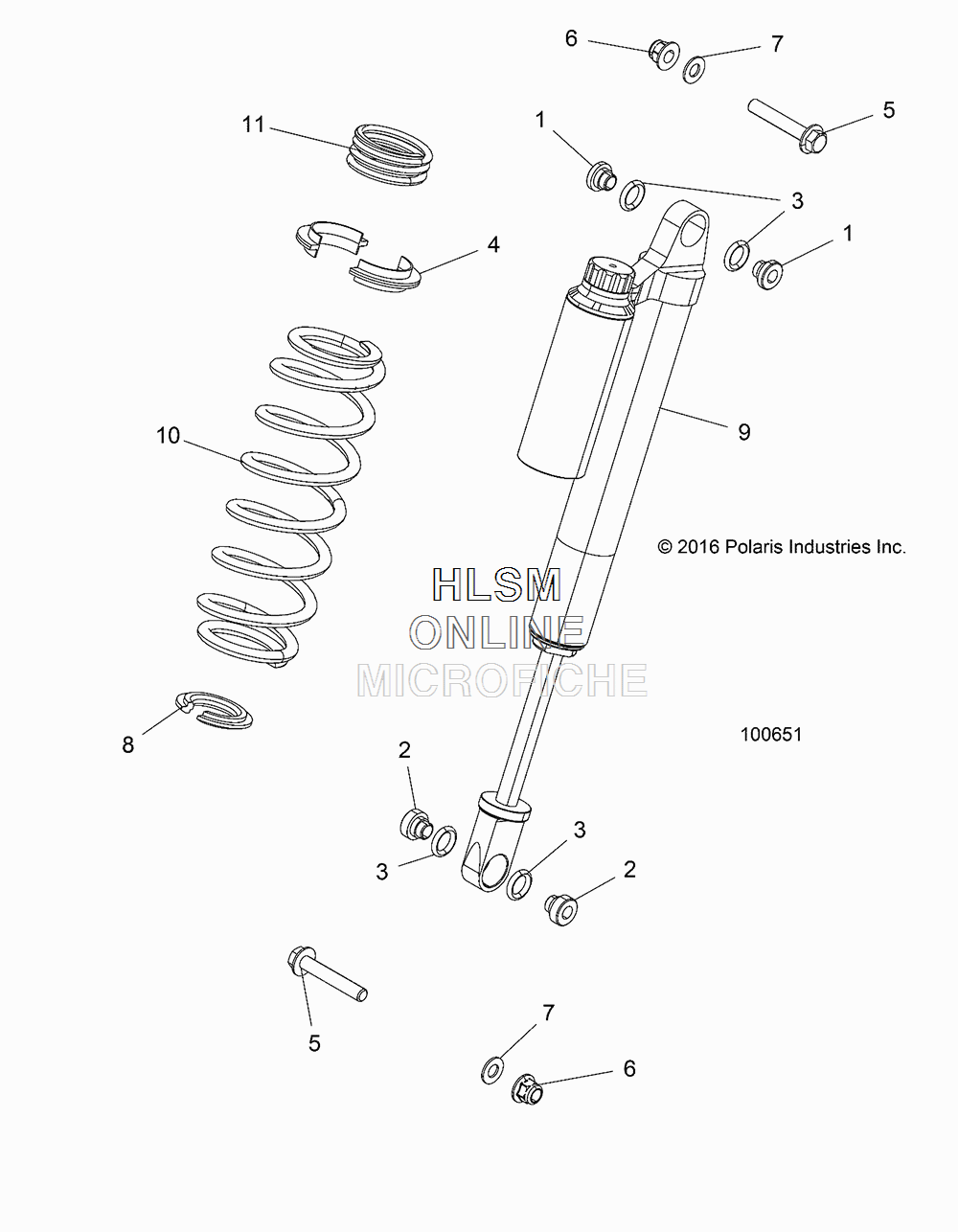

SUSPENSION - FRONT SHOCK W/ MOUNTING для Polaris ACE 900 ESP XC (VELOCITY BLUE) [A18DCE87BB] - 2018 года выпуска
-
№АртикулНазвание
-
15137876 BUSHING-REDUCER, .500X.398, ZYWBUSHING-REDUCER, .500X.398, ZYW
-
25137877 BUSHING-REDUCER, 10MM WIDE, ZYWBUSHING-REDUCER, 10MM WIDE, ZYW
-
35416057 O-RING, 0.591IDX.171O-RING, 0.591IDX.171
-
45436643 SPACER-SPRING, NYLONSPACER-SPRING, NYLON
-
57519306 SCR-HXFL-M10X1.25X60 10.9 ZODSCR-HXFL-M10X1.25X60 10.9 ZOD
-
67547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
77556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
-
85020618 RETAINER-SPRING, SLOTTEDRETAINER-SPRING, SLOTTED
-
97044677 SHOCK-FRONT, WE, 1.5 INSHOCK-FRONT, WE, 1.5 IN
-
107044679-630 SPR-130#, 10.6FL, 1.88, LM SQZSPR-130#, 10.6FL, 1.88, LM SQZ
-
117044694-630 SPR-130#, 2.87FL, 1.88, LM SQZSPR-130#, 2.87FL, 1.88, LM SQZ
