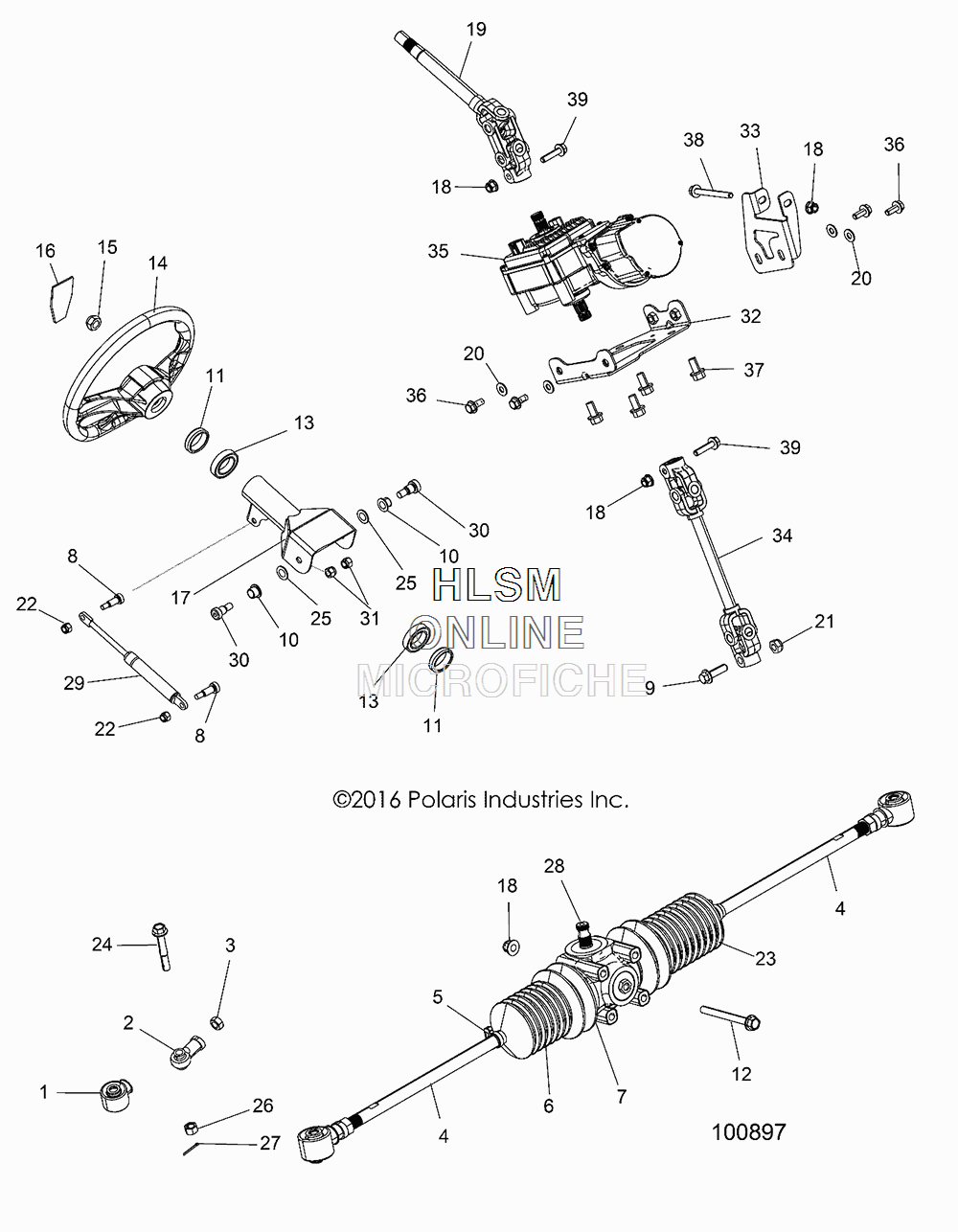

STEERING ASM. для Polaris ACE 900 ESP XC (VELOCITY BLUE) [A18DCE87BB] - 2018 года выпуска

  • №
    Артикул
    Название
  • 2
    7061189 ROD END, 10MM, M14-1.5LEFT HAND, 54DEG
    ROD END, 10MM, M14-1.5LEFT HAND, 54DEG
  • 5
    7080978 CLAMP, BOOT, SMALL
    CLAMP, BOOT, SMALL
  • 6
    5412012 BOOT, STEERING RACK
    BOOT, STEERING RACK
  • 7
    7080979 CLAMP, BOOT, LARGE
    CLAMP, BOOT, LARGE
  • 8
    7518786 BOLT, SHOULDER
    BOLT, SHOULDER
  • 9
    7518644 SCREW
    SCREW
  • 10
    5439154 BUSHING, TILT STEERING
    BUSHING, TILT STEERING
  • 11
    7556675 BUSHING, STEERING
    BUSHING, STEERING
  • 12
    7519217 SCREW
    SCREW
  • 13
    3514686 BEARING, STEERING
    BEARING, STEERING
  • 14
    1824014 WHEEL, STEERING
    WHEEL, STEERING
  • 15
    7547506 NUT
    NUT
  • 16
    5450255-630 CAP-STEERING WHEEL, LIME SQ
    CAP-STEERING WHEEL, LIME SQ
  • 17
    1022896-458 ASM-PIVOT TUBE, M.BLACK (INCL. 13)
    ASM-PIVOT TUBE, M.BLACK (INCL. 13)
  • 18
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 19
    1824286 SHAFT, STEERING, EPS, UPPER
    SHAFT, STEERING, EPS, UPPER
  • 20
    7555960 WASHER-.327X.875X.090, FL-Y
    WASHER-.327X.875X.090, FL-Y
  • 21
    7547385 NUT, NYLOK
    NUT, NYLOK
  • 22
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 23
    5412012 BOOT, STEERING RACK
    BOOT, STEERING RACK
  • 24
    7519854 SCR-HXFL-M10X1.25X75 10.9 ZOD
    SCR-HXFL-M10X1.25X75 10.9 ZOD
  • 25
    7555919 WASHER
    WASHER
  • 26
    7547333 NUT, FLANGE
    NUT, FLANGE
  • 27
    7661203 PIN, COTTER
    PIN, COTTER
  • 28
    1824539 ASM-GEARBOX, STEERING, 17T (INCL. 2-7, 23)
    ASM-GEARBOX, STEERING, 17T (INCL. 2-7, 23)
  • 29
    7044699 ASM-SHOCK, TILT STEERING, SHORT
    ASM-SHOCK, TILT STEERING, SHORT
  • 30
    7519355 SCREW
    SCREW
  • 31
    7547442 NUT, NYLOK
    NUT, NYLOK
  • 32
    1020912-329 BRACKET, BASE, EPS
    BRACKET, BASE, EPS
  • 33
    5260034-329 BRACKET, EPS, LEFT HAND
    BRACKET, EPS, LEFT HAND
  • 34
    1824549 SHAFT-STEERING, EPS, LOWER, 17T
    SHAFT-STEERING, EPS, LOWER, 17T
  • 35
    2414019 ASM-POWER STEERING, ACE
    ASM-POWER STEERING, ACE
  • 36
    7518450 BOLT
    BOLT
  • 37
    7518558 BOLT
    BOLT
  • 38
    7518955 SCREW
    SCREW
  • 39
    7519052 SCREW
    SCREW
