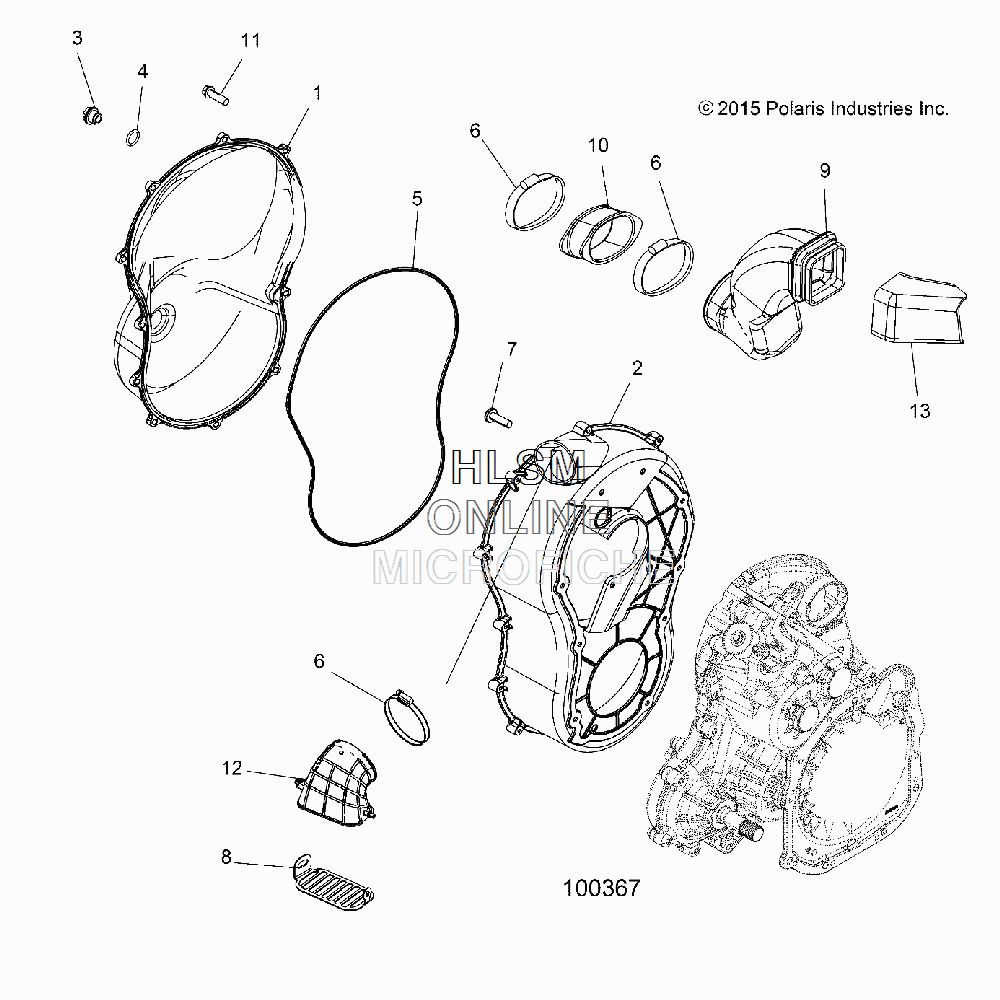

CLUTCH COVER для Polaris SPORTSMAN TOURING TRACTOR 1000 BLACK PEARL [A17SYS95CK] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2633919 ASM., COVER, OUTER [INCL. 3,4]
    ASM., COVER, OUTER [INCL. 3,4]
  • 2
    5438127 COVER, CLUTCH INNER
    COVER, CLUTCH INNER
  • 3
    5434264 PLUG, DRAIN
    PLUG, DRAIN
  • 4
    5410542 O-RING
    O-RING
  • 5
    5521802 SEAL
    SEAL
  • 6
    7081279 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 7
    7518914 SCREW
    SCREW
  • 8
    5263038-458 BRKT-BELT SCREEN,MESH,M.BLK
    BRKT-BELT SCREEN,MESH,M.BLK
  • 9
    5452432 DUCT-AIR INLET,CLUTCH,ETC
    DUCT-AIR INLET,CLUTCH,ETC
  • 10
    5413177 BOOT, CLUTCH, INLET
    BOOT, CLUTCH, INLET
  • 11
    7519849 SCREW
    SCREW
  • 12
    5452862 HOSE-CLUTCH,AIR OUTLET
    HOSE-CLUTCH,AIR OUTLET
  • 13
    5413516 BOOT, INLET, DUCT
    BOOT, INLET, DUCT
