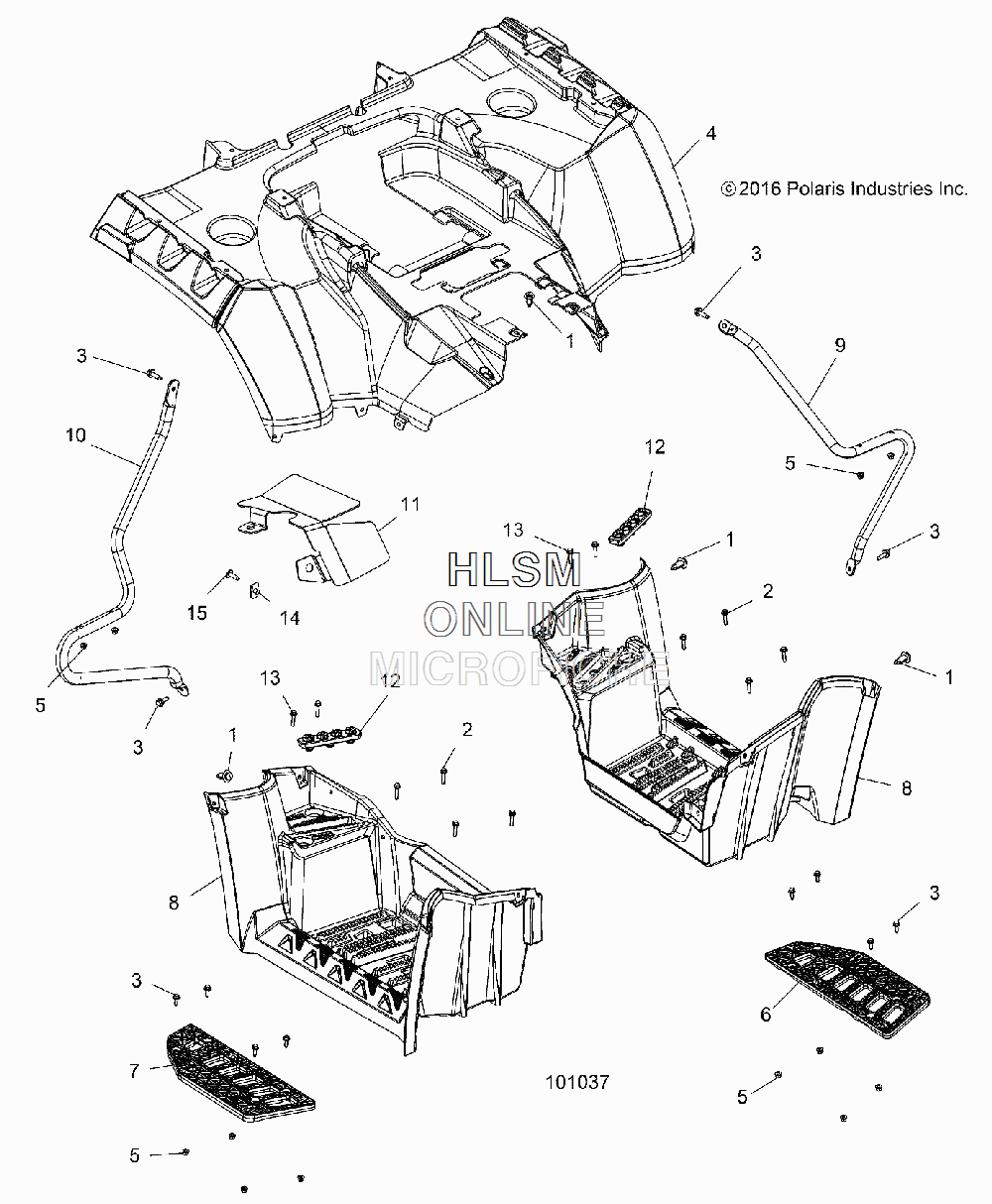

CAB - REAR W/ FOOTWELLS для Polaris SPORTSMAN TOURING TRACTOR 1000 BLACK PEARL [A17SYS95CK] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7661855 RIVET
    RIVET
  • 2
    7519202 SCREW, FLANGE
    SCREW, FLANGE
  • 3
    7518529 SCREW, FLANGE
    SCREW, FLANGE
  • 4
    5814113 SHIELD-HEAT,FOIL,FRAME
    SHIELD-HEAT,FOIL,FRAME
  • 4
    5453802-666 CAB-REAR,SPMN TRG,PNTD,BLK PRL
    CAB-REAR,SPMN TRG,PNTD,BLK PRL
  • 5
    7547274 NUT, NYLOK, FLANGE
    NUT, NYLOK, FLANGE
  • 6
    5437600 SUPPORT, FOOTPAD, LH
    SUPPORT, FOOTPAD, LH
  • 7
    5437601 SUPPORT, FOOTPAD, RH
    SUPPORT, FOOTPAD, RH
  • 8
    5437888-070 FOOTWELL, BLACK, LH
    FOOTWELL, BLACK, LH
  • 8
    5453691-070 FOOTWELL-RH,MOD,BLK
    FOOTWELL-RH,MOD,BLK
  • 9
    5338574-329 TUBE, FOOTWELL SUPPORT, LH, BLACK
    TUBE, FOOTWELL SUPPORT, LH, BLACK
  • 10
    5338575-329 TUBE, FOOTWELL SUPPORT, RH, BLACK
    TUBE, FOOTWELL SUPPORT, RH, BLACK
  • 11
    5259879 SHIELD-HEAT,FOOTWELL,PASS,RH
    SHIELD-HEAT,FOOTWELL,PASS,RH
  • 12
    5413165 PAD, FOOTWELL, SHORT
    PAD, FOOTWELL, SHORT
  • 13
    7518579 SCREW
    SCREW
  • 14
    7670096 NUT-CHIMNEY 1/4-20,GR-5
    NUT-CHIMNEY 1/4-20,GR-5
  • 15
    7517685 SCR-1/4-20X1.00 TR/TX-M
    SCR-1/4-20X1.00 TR/TX-M
