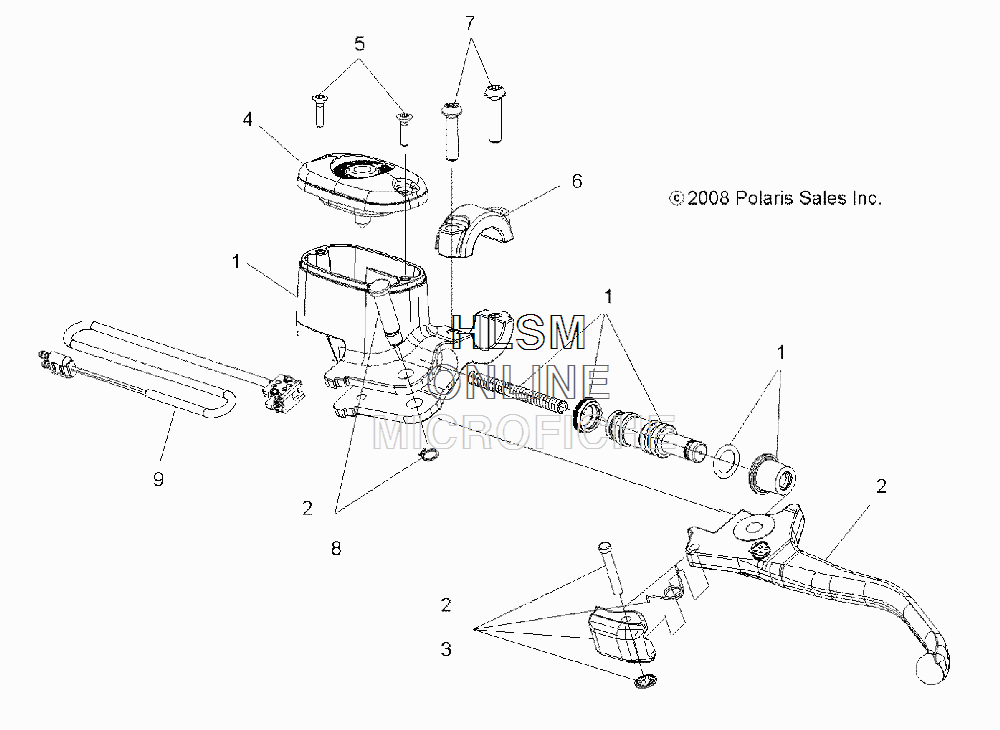

BRAKE - FRONT MASTER CYLINDER для Polaris SPORTSMAN TOURING TRACTOR 1000 BLACK PEARL [A17SYS95CK] - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    2203051 ASM., MASTER CYLINDER [INCL. ALL]
    ASM., MASTER CYLINDER [INCL. ALL]
  • 1
    2203052 KIT, PISTON [INCL. PISTON, SEALS, SPRING, BODY]
    KIT, PISTON [INCL. PISTON, SEALS, SPRING, BODY]
  • 2
    2203053 KIT, LEVER, PARK BRAKE LEVER [INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS]
    KIT, LEVER, PARK BRAKE LEVER [INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS]
  • 3
    2203054 KIT, SUB ASM., PARK LEVER [INCL. PIN, LEVER, SPRING, RING]
    KIT, SUB ASM., PARK LEVER [INCL. PIN, LEVER, SPRING, RING]
  • 4
    2203055 KIT, MASTER CYLINDER COVER [INCL. COVER W/SEAL]
    KIT, MASTER CYLINDER COVER [INCL. COVER W/SEAL]
  • 5
    2203056 KIT, SCREW, COVER [INCL. 2 SCREWS]
    KIT, SCREW, COVER [INCL. 2 SCREWS]
  • 6
    2203093 KIT, CLAMP [INCL. CLAMP ONLY]
    KIT, CLAMP [INCL. CLAMP ONLY]
  • 7
    2203058 KIT, SCREW, CLAMP [INCL. 2 SCREWS]
    KIT, SCREW, CLAMP [INCL. 2 SCREWS]
  • 8
    2203059 KIT, PIN PIVOT, AND RING, SNAP [INCL. BRAKE LEVER, PIN, SNAP RING]
    KIT, PIN PIVOT, AND RING, SNAP [INCL. BRAKE LEVER, PIN, SNAP RING]
  • 9
    2202794 SWITCH, STOP LIGHT
    SWITCH, STOP LIGHT
